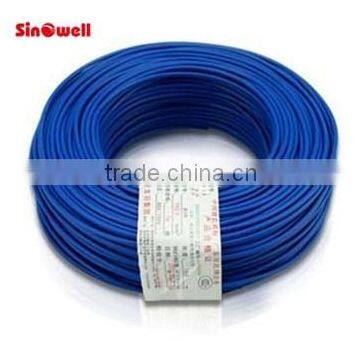

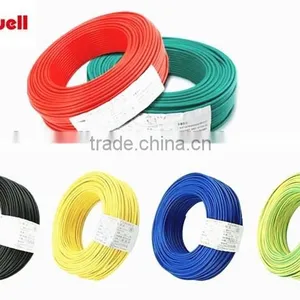

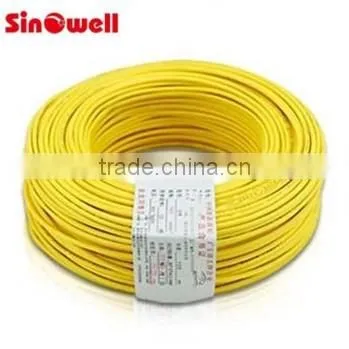

Low Voltage Copper Electronic Wire Manufacturer
US$ 1.8 - 17
MOQ: 1 Roll
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SINOWELL
Model Number:
01
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Strands Parallel Speaker Cable (Transparent PVC)CCA 100m 2 CoreUS$ 1 - 20MOQ: 100 Meters -
Hot Selling of PE Irradiation Electronic Wires One Core Copper Electronic WireUS$ 0.05 - 0.1MOQ: 100 Meters
-
Very Cheap Electric WireUS$ 1.8 - 17MOQ: 100 Rolls
-
Electric Wire-4 Cores CableUS$ 20 - 88MOQ: 100 Rolls
-
Electric Wire-3 Cores CableUS$ 15 - 60MOQ: 100 Rolls
Place of Origin
Jiangsu, China
Brand Name
SINOWELL
Model Number
01
Type
Insulated
Application
Other, construction
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Product Description

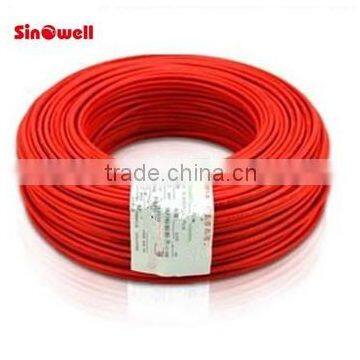

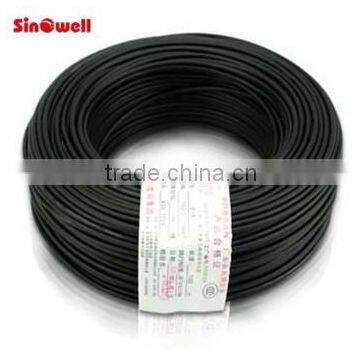

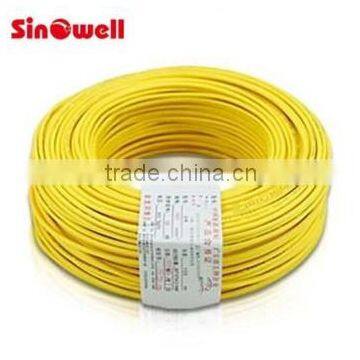

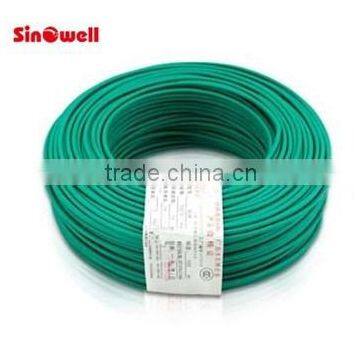

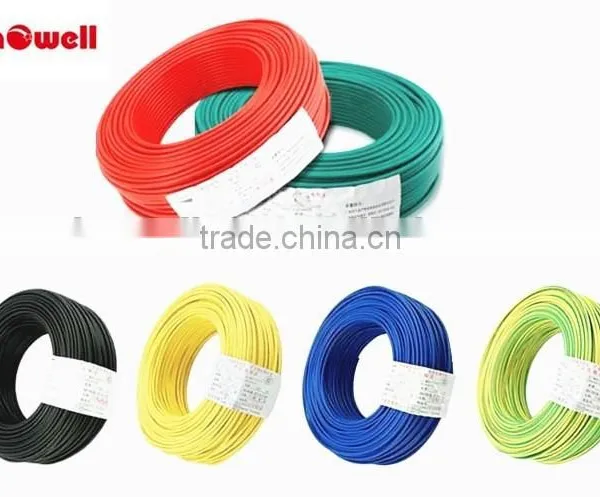

Jacket colour: Various colours available
Material:30% copper 70% copper; 100% copper
Product Description:
low smoke electric wire
Product Description:

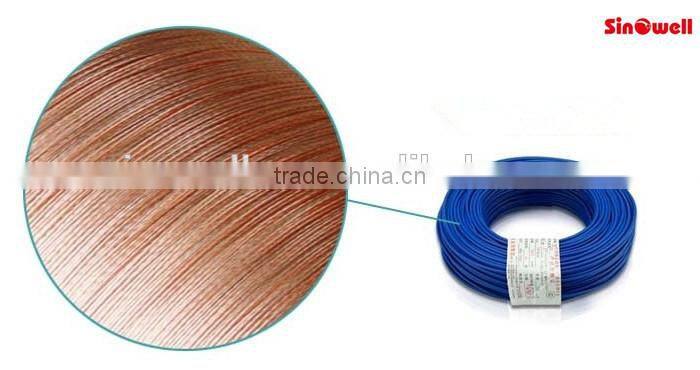

1.Tinned,annealed,stranded or solid copper conductor.
2. MPPE-PE insulation.
3.Rated temperature:80°C.Rated voltage:300volts

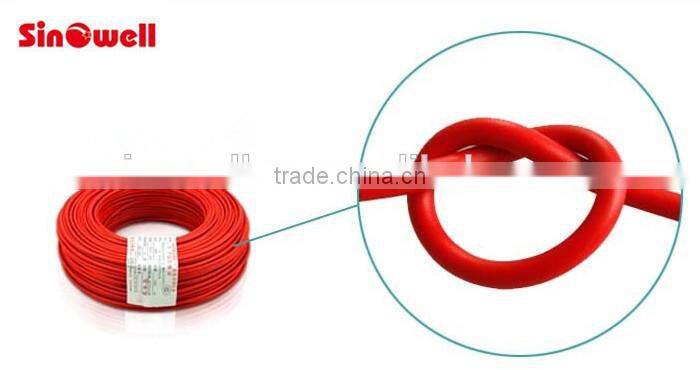

4.Uniform thickness of wire to ensure easy stripping and cutting.
5.Passes UL VW-1&CUL FT1 vertical flame test.
6.Top coated conductor is avaiable
Applications:
1.Internal wiring, installed where not subjected to movement or mechanical abuse.
| UL Style& CUL Type | Conductor | Insulation Thickness |
Overall Diameter |
Standard Put-up | Conductor Resistance at 20°C |
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL10981 CUL AWM I A (Stranded) |
30 | 7/0.10 | 0.23 | 0.80 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | 2000 | 610 | 239.00 | |
| 26 | 7/0.16 | 0.23 | 1.00 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.23 | 1.10 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.23 | 1.30 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.23 | 1.50 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.23 | 1.70 | 2000 | 610 | 23.20 | |
| 16 | 26/0.25 | 0.23 | 2.00 | 2000 | 610 | 14.60 | |
| UL10981 CUL AWM I A (Solid) |
30 | 1/0.254 | 0.23 | 0.75 | 2000 | 610 | 361.00 |
| 28 | 1/0.32 | 0.23 | 0.80 | 2000 | 610 | 227.00 | |
| 26 | 1/0.404 | 0.23 | 0.90 | 2000 | 610 | 143.00 | |
| 24 | 1/0.511 | 0.23 | 1.00 | 2000 | 610 | 89.30 | |
| 22 | 1/0.643 | 0.23 | 1.15 | 2000 | 610 | 56.40 | |
| 20 | 1/0.813 | 0.23 | 1.30 | 2000 | 610 | 35.20 | |
| 18 | 1/1.024 | 0.23 | 1.50 | 2000 | 610 | 22.20 | |
| 16 | 1/1.29 | 0.23 | 1.80 | 2000 | 610 | 14.00 |
|
Packaging & Shipping

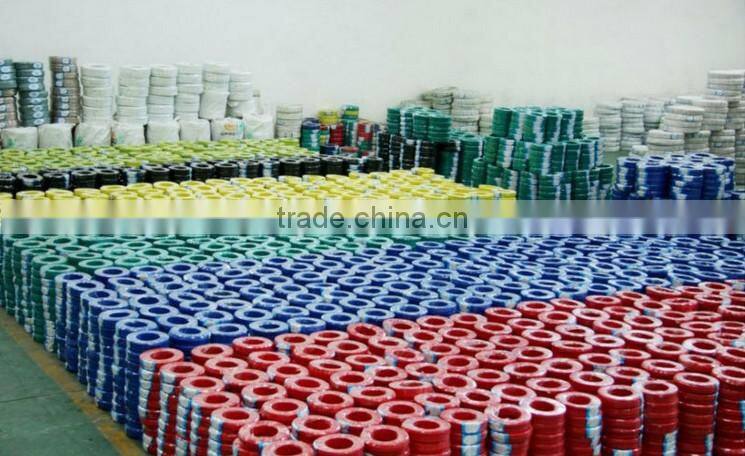

Packing:spool,drum and roll
Shipping:By sea or air
