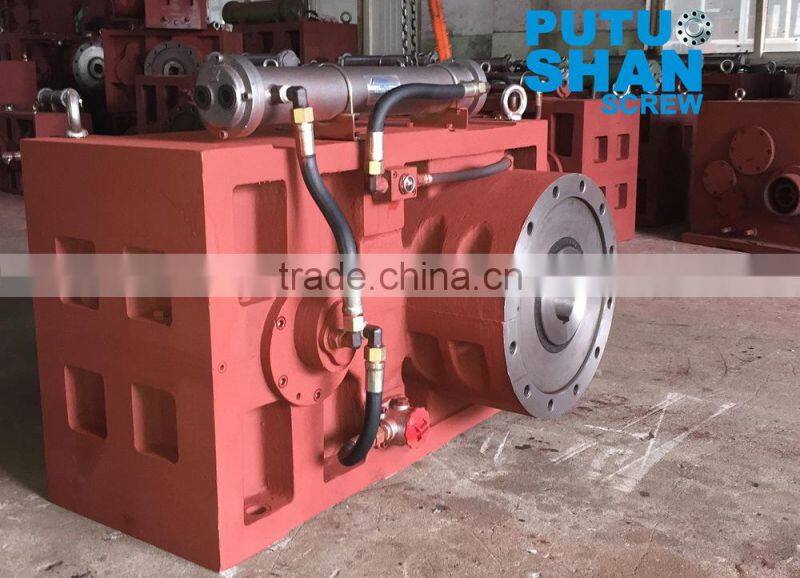

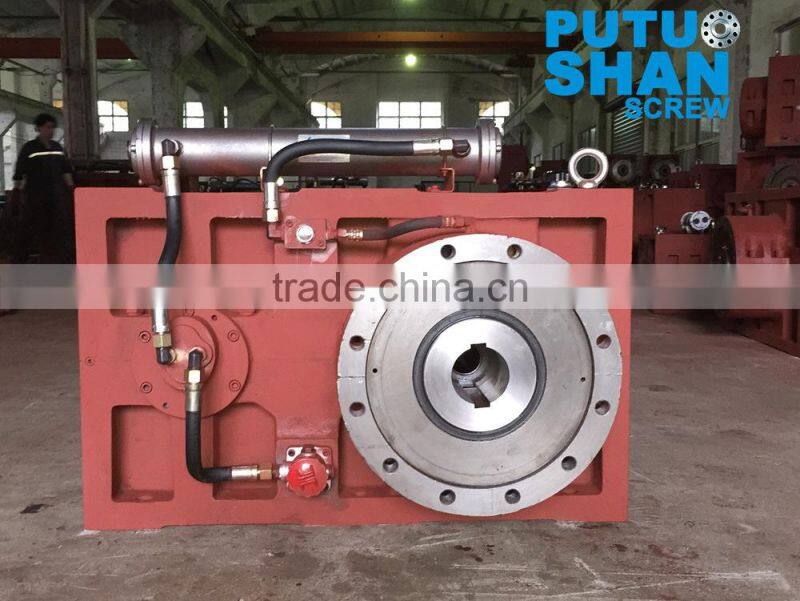

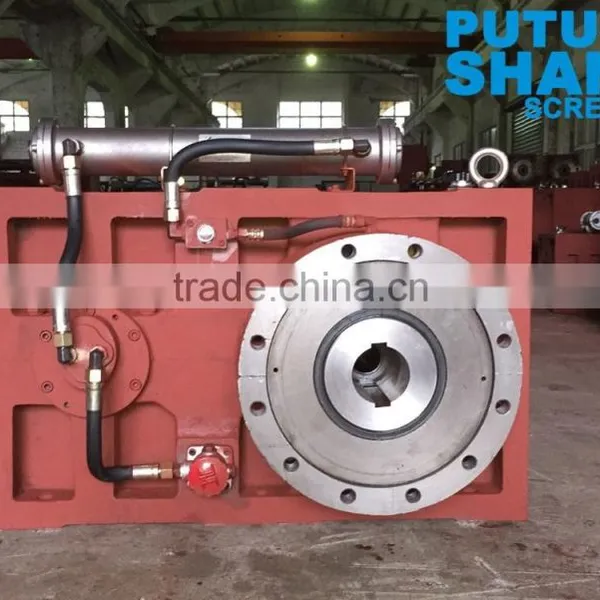

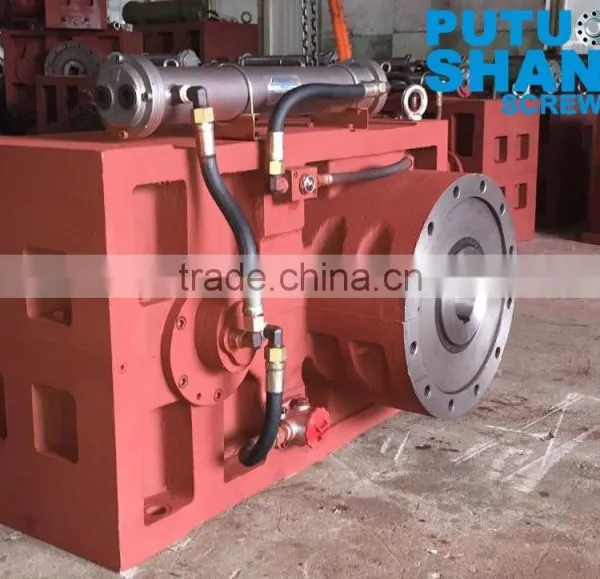

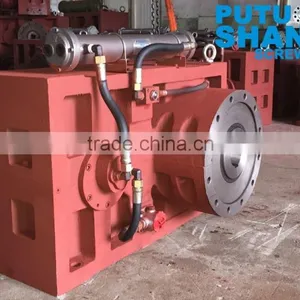

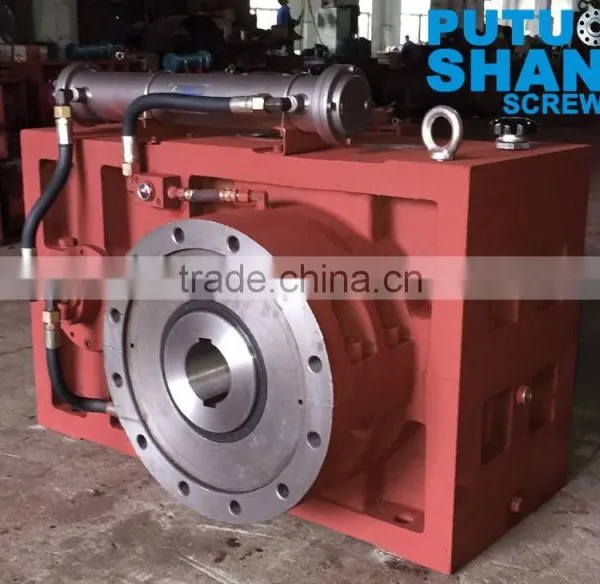

Help CenterZLYJ200 Gearbox for Single Screw Plastic Extruder With Oil Pump and Chllier
Related Products
-
ZLYJ173 Gearbox for Single Screw Plastic Extruder With Oil Pump and ChllierUS$ 300 - 10,000MOQ: 1 Set -
ZLYJ146 Gearbox for Single Screw Plastic ExtruderUS$ 300 - 10,000MOQ: 1 Set
-
SZ Series Gear Box for Conical Twin Screw Plastic Extruder Gearbox Series/gear Box High and LowUS$ 2,000 - 10,000MOQ: 1 Set
-
Single Screw and Barrel Extruder Gear Box 146-10US$ 400 - 6,000MOQ: 1 Set
-
Single Screw Extruder Gear ShaftUS$ 3,000 - 30,000MOQ: 1 Set

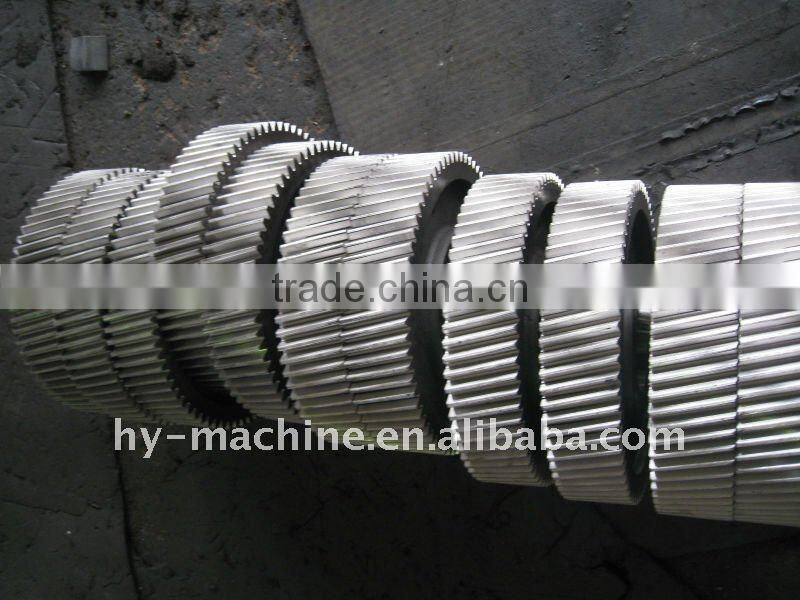

ZLYJ series speed reducer is a transmission part that possesses high precision hard gear surface and thrust block designed for plastic screw extruder. The design of product adapts all kinds of norm specified in ZBJ19009-88/ it features that gear and axis parts are made of high strength alloy steel. The gear is processes by carburization, quenching and tooth grinding process. The precision of gear is grade 6 specified in GB10095-88. The hardness of gear surface is HRC54~62. At front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working. The complete machine features compact, high in bearing capacity, stable in transmission, low noise, high efficiency, etc.
High quality single screw extruder gear box for extruder machines
SINGLE SCREW EXTRUDER GEAR BOX DATA
Type | Size | kw | N in | Nout | N.m | kN | Screw dia | L/D |
ZLYJ
| 112-8 | 5.5 | 800 | 100 | 525 | 35 | ≤φ35
| 25:1 |
133-8 | 8 | 800 | 100 | 764 | 39 | ≤φ50 | 25:1 | |
146-10 | 11 | 1000 | 100 | 1050 | 54 | ≤φ55 | 25:1 | |
173-10 | 18.5 | 900 | 90 | 1962 | 110 | ≤φ65 | 25:1 | |
200-12.5 | 30 | 1000 | 80 | 3581 | 155 | ≤φ75 | 25:1 | |
225-12.5 | 45 | 1000 | 80 | 5371 | 180 | ≤φ90 | 25:1 | |
250-16 | 55 | 1120 | 70 | 7503 | 192 | ≤φ105 | 25:1 | |
280-16 | 75 | 960 | 60 | 7643 | 258 | ≤φ110 | 25:1 | |
315-16 | 85 | 960 | 60 | 13528 | 287 | ≤φ120 | 25:1 | |
330-16 | 110 | 960 | 60 | 17507 | 360 | ≤φ135 | 25:1 | |
375-16 | 132 | 960 | 60 | 21008 | 390 | ≤φ150 | 25:1 | |
395-16 | 185 | 960 | 60 | 29442 | 400 | ≤φ160 | 25:1 | |
420-16 | 160 /220 | 960 | 60 | 31831 | 430 | ≤φ160-φ170 | 25:1 | |
450-20 | 213 | 1000 | 50 | 40640 | 500 | ≤φ180 | 25:1 | |
560-20 | 440 | 1000 | 50 | 84034 | 700 | ≤φ200 | 25:1 | |
630-20 | 540 | 1000 | 50 | 103132 | 770 | ≤φ250 | 25:1 |
Send Inquiry to This Supplier
