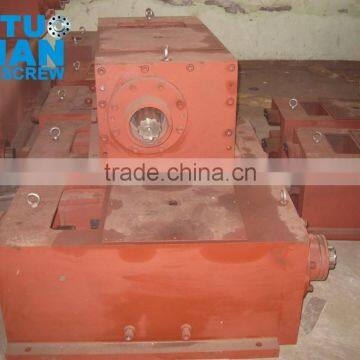

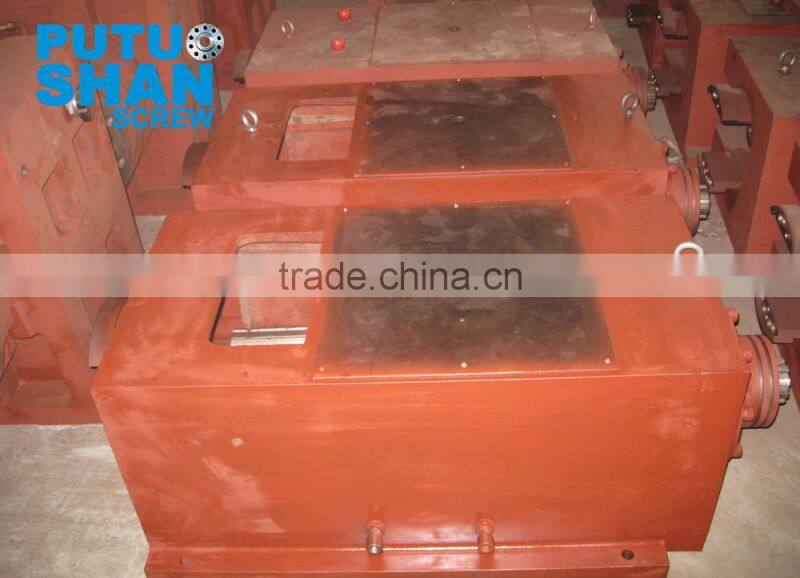

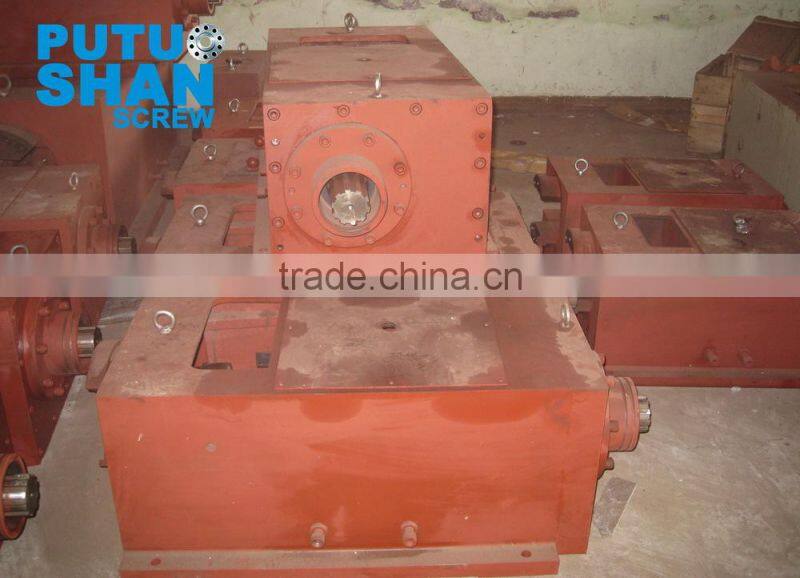

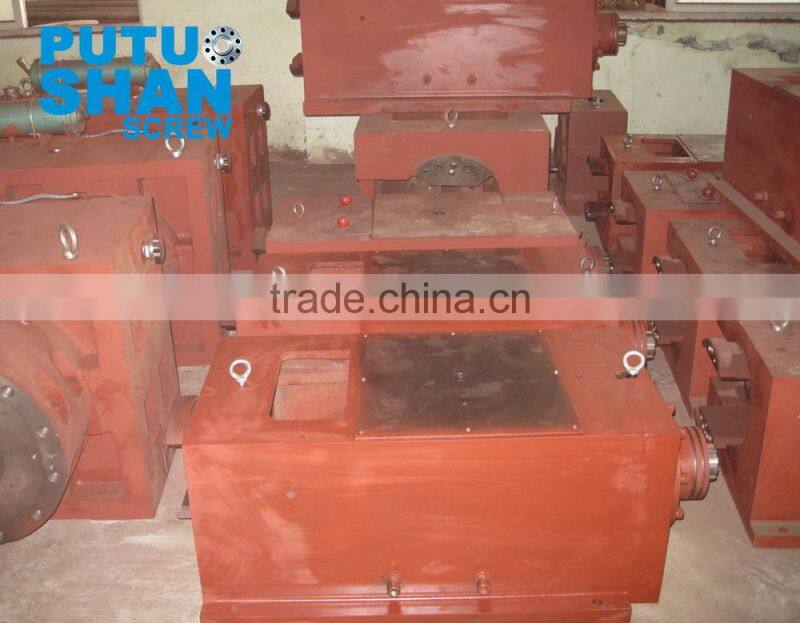

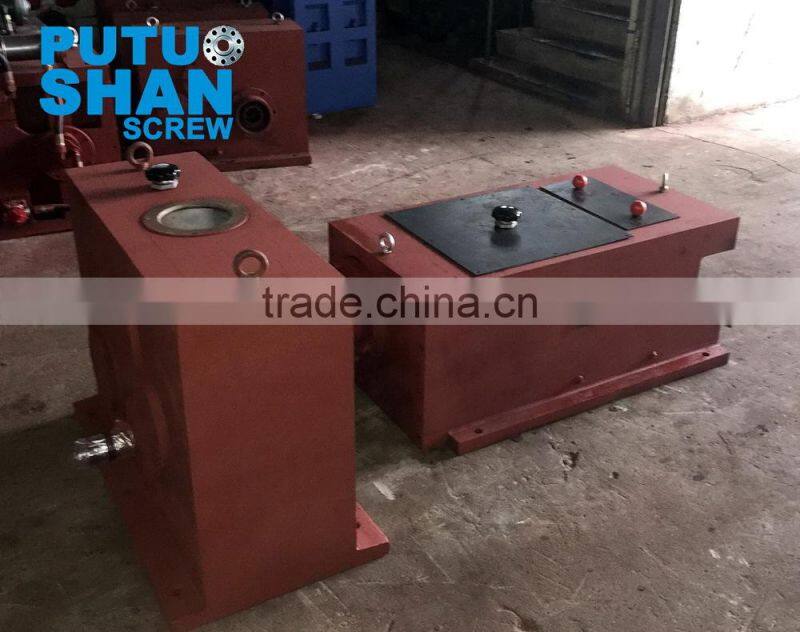

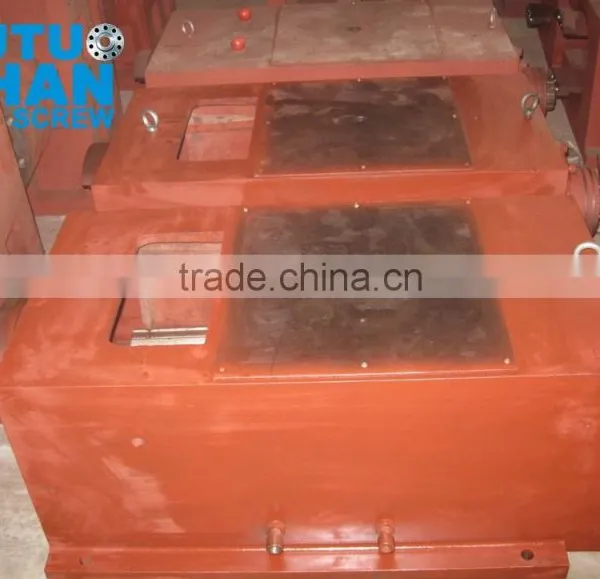

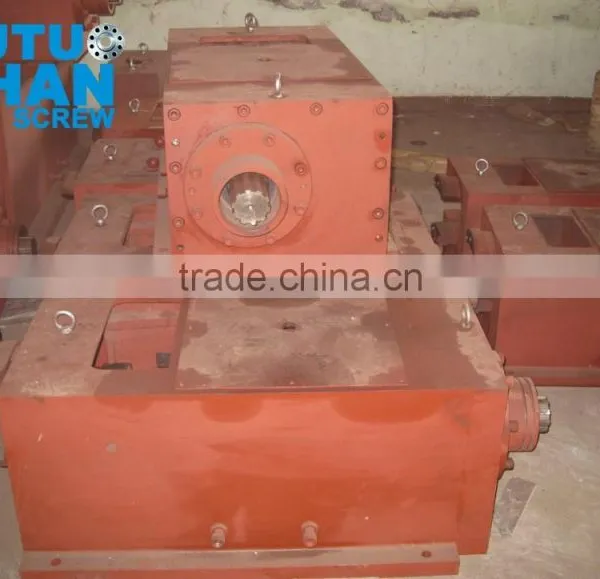

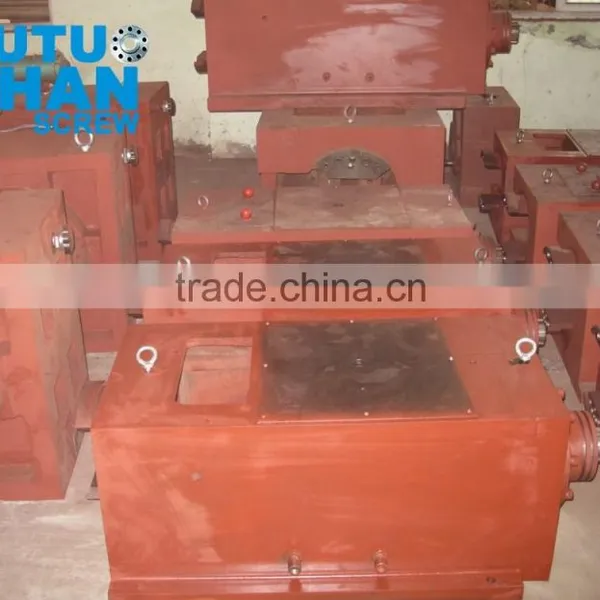

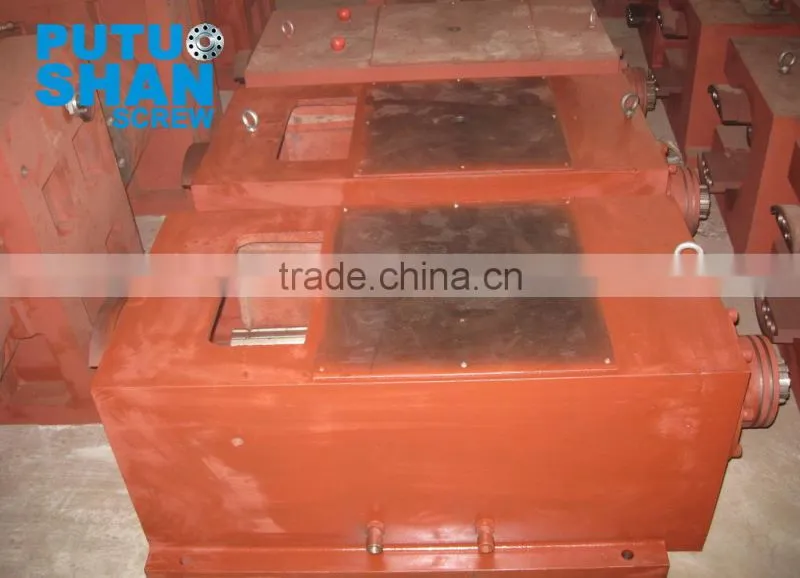

SZ Series Gear Box for Conical Twin Screw Plastic Extruder Gearbox Series/gear Box High and Low
US$ 2,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Putuoshan
Model Number:
Many types
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai seaport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Screw and Barrel Extruder Gear Box 146-10US$ 400 - 6,000MOQ: 1 Set -
Single Screw Extruder Gear ShaftUS$ 3,000 - 30,000MOQ: 1 Set
-
Conical Twin Screw Extruder Gear Box(Conical Box)US$ 350 - 3,000MOQ: 1 Set
-
Single Plastic Screw Extruder's Warm Gear BoxUS$ 350 - 3,000MOQ: 1 Set
-
Conical Twin-Screw Plastic Extruder Gearbox Series/gear Box High and LowUS$ 420 - 6,625MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Putuoshan
Model Number
Many types
Gearing Arrangement
Other, Helical, Hard Gear Surface
Output Torque
6786N.M
Rated Power
55KW
Input Speed
1500r/min
Output Speed
38.7r/min
Gear box for the double screw and barrel extruder .
SZ Series gear box for conical twin-screw
General Survey
SZ serial gearbox for conical twin-screw Rod Extruder is a special driving unit matched with conical twin-screw rod extruder.It consists of two parts,namely,the reduction box and the distribution box. After reducing speed and increasing torque of the motor,it outputs the motive power to the distribution box,then drives the double output shafts(the included angle is the same with that of twin-screw rods)via a pair of small conical spiral gears with driving ratio of 1:1,thus to drive screw rods to rotate outward with different direction.
Features of Product
1.There are involute cylindrical gears in the gearbox,which data and structure are optimally designed by the computer.
2.The gears are made of top-quality high-strength low carbon alloy steel after carbon penetrating,quench and teeth grinding.It has high hardness on teeth surface.large bearing ability,small noise,smooth operation and high driving efficiency.
3.The material of the distribution box is nodular graphite casting iron and the gears have high-strength ground teeth,in which snake-shaped cooling water pipes are distributed.
4.The maximum input speed of the gearbox is normally not larger than 1500 rpm.
5.The temperature in work environment is -10-45,when temperature is lower than 0,the lubricant oil should be preheated to +10 before starting.
The main technical performance table in the gearbox process are:
|
SZ45 |
SZ50 |
SZ55 |
SZ65 |
SZ80 |
SZ92 |
|
Input speed max r/min |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Output speed max r/min |
44.8 |
37.8 |
37.5 |
39.1 |
37.7 |
40 |
Input power kw |
18.5 |
22 |
30 |
37 |
55 |
110 |
Uniaxial torque output N.m |
1972 |
2779 |
3820 |
4518 |
6786 |
13130 |
Axis angle distribution |
2°40' |
2°58'12" |
2°36'14" |
2°11'16" |
2°0'18" |
1°52'3.64" |
Connect spline size |
8-48×42×8 |
8-48×46×9 |
6-60×53×14 |
8-65×56×10 |
8-72×62×12 |
10-98×92×14 |
