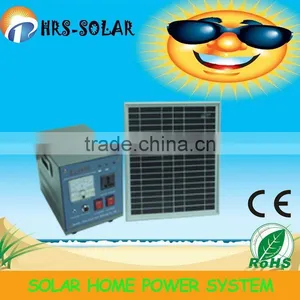

300Watt Latest Solar Product Portable Solar Power System

FOB Price

US$ 20 - 1,000 / Set

1 Set(Min. Order)

Port 300W solar home system SHEN ZHEN
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	H.R.S./OEM
Model Number	HRS	Specification	Normal
Application	Home	Output Voltage (V)	12V or 110V/220V
Load Power (W)	4000W	Solar Power (W)	4000W
Work Time (h)	20

Product Description

Specifications

Solar System Off-grid
1. Complete system, AC & DC output.
2. Easy operation.
3. CE & ROHS certified..

300W solar home system

HRS Solar Home System Off-grid/On-grid

Mini solar home power supply system

100W solar home system

300W solar home system Description

Portable Solar System
1. Complete system, AC & DC output.
2. Easy operation.
3. CE & ROHS Certificate

Portable Solar System
Battery

12V7AH
Inverter

DC 120/AC/220V,quasi sine vave
Solar Power

10W
Maximum Power 10W
Maximum Power Voltage 17.2V
Maximum Power Current 0.58A
Open Circuit Voltage 22.31V
Short Circuit Voltage 0.67A

Not only enviromental friendly but also energy saving !

Reasonable designe and represent for the new trend of the new energy!

We are a company specializes in solar products , we can design Solar Home System Off-grid as your request.

solar panels for home use / System Off-grid

Component	Specification	Qty
Solar Module	1000W Monocrystalline	4pcs
Battery	48V150ahSealed lead-acid battery	8 pcs
Controller	48V30A	1 pcs
Invertor(output)	48V to 110V/220V,1000W	1 pcs
Module Bracket	Stainless steel	4 pcs

Lightning arrester		1 pcs
Power Cabinet		1 pcs

We can design all kinds of systems basing on clinets spec/application.

	Solar Power System
3KWp large polysilicon solar power system configuration
Solar Power Specifications	AC220V output from the two-phase polycrystalline silicon solar power system net-		Remarks
	Load power 5000W/AC220V, while 70% rate		Remarks
	Solar power per day (hours)	6	The load
	Estimates of electricity generation sunny day (W. Hr)	13500	That is 13.5 kWh
	Maximum daily load power consumption (W. Hr)	12600	That is 12.6 kWh
	Rainy days, solar power is insufficient	2-3 days of storage power supply systems
Solar panel array	Use solar panels veneer peak power (Wp)	150	72V/2.08A
	With the number of solar panels (blocks)	20
	The total output of solar panel array peak power (Wp)	3000
	Single cell plate dimensions (mm)	809 * 1581 * W long thick 40	Veneer Weight 14kg
	Array of solar panels covering a total area (M2)	39	Panels layout plan
	Price per watt solar panels
	Panels total price
Batteries	Selection of high quality fully sealed, maintenance-free battery specifications	DC12V
	Batteries	24	Life of 10-12 years
	The total capacity of battery (Ah)	48V/300AH	Ambient temperature -55 ~ +75 °C
	Battery price
Other configuration	Automatically switch charge and discharge controller 1 set		Specifications DC48V/150A
	Sine wave inverter		DC48V/AC220V 3000W
	AC output power distribution cabinet
Other costs	Solar panel array brackets, battery rack
Other costs	Solar power system wiring and cable, auxiliary


7KWp large polysilicon solar power system configuration
Solar Power Specifications	AC220V output from the two-phase polycrystalline silicon solar power system net-		Remarks
	Load power 7000W/AC220V, while 70% rate		Remarks
	Solar power per day (hours)	6	The load
	Estimates of electricity generation sunny day (W. Hr)	31500	Electricity that is 31 degrees
	Maximum daily load power consumption (W. Hr)	29000	Electricity that is 29 degrees
	Rainy days, solar power is insufficient	2-3 days of storage power supply systems
Solar panel array	Use solar panels veneer peak power (Wp)	200	72V/2.78A
	With the number of solar panels (blocks)	35
	The total output of solar panel array peak power (Wp)	7000
	Single cell plate dimensions (mm)	995 * 1646 * W long thick 50	Veneer Weight 19.13kg
	Array of solar panels covering a total area (M2)	60	Panels layout plan
	Price per watt solar panels
	Panels total price
Batteries	Selection of high quality fully sealed, maintenance-free lead-acid battery specifications	DC12V
	Batteries (unit)	80	Life of 10-12 years
	The total capacity of battery (Ah)	48V/1500AH	Ambient temperature -55 ~ +75 °C
	Battery price
Other configuration	Automatically switch charge and discharge controller		Specifications DC48V/100A
	Sine wave inverter		DC48V/AC220V 3000W
	AC output power distribution cabinet
Other costs	Solar panel array brackets, battery rack
Other costs	Solar power system wiring and cable, auxiliary

We can be customized small system from 5W~1000W,also can custom large system 1KW~5MW.
