Home > Products > Power System > solar project, 20W protable solar system

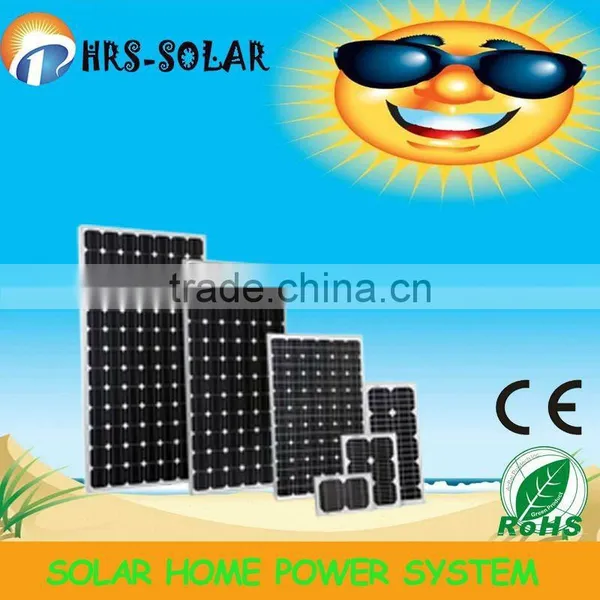

solar project, 20W protable solar system
- 5 Piece / Pieces per Month
- SHEN ZHEN
- T/T L/C D/P D/A Credit Card
- solar home system,solar power system,solar system for DC fan,LCD ect
- 20W To 5KW,2012 New Solar Generator with fast charge function,
- 100W solar home system,solar power system
- High quality Portable 5W Home use solar system
- 10kw Solar Home System Off-grid/On-grid
- HOT Mini Solar Home power supply System
Product Details
Place of Origin: | Guangdong, China | Brand Name: | H.R.S./OEM | Model Number: | HRS |
Specification: | Normal | Application: | Home | Output Voltage (V): | 12V or 110V/220V |
Load Power (W): | 4000W | Solar Power (W): | 4000W | Work Time (h): | 20 |
Product Description
Specifications
Solar System Off-grid1. Complete system, AC & DC output.
2. Easy operation.
3. CE & ROHS certified..
Product Description
Portable Solar System
1. Complete system, AC & DC output.
2. Easy operation.
3. CE & ROHS Certificate
Portable Solar System
Battery
12V7AH
Inverter
DC 120/AC/220V,quasi sine vave
Solar Power
10W
Maximum Power 10W
Maximum Power Voltage 17.2V
Maximum Power Current 0.58A
Open Circuit Voltage 22.31V
Short Circuit Voltage 0.67A
Not only enviromental friendly but also energy saving !
Reasonable designe and represent for the new trend of the new energy!
We are a company specializes in solar products , we can design Solar Home System Off-grid as your request.
Component | Specification | Qty |
Solar Module | 1000W Monocrystalline | 4pcs |
Battery | 48V150ahSealed lead-acid battery | 8 pcs |
Controller | 48V30A | 1 pcs |
Invertor(output) | 48V to 110V/220V,1000W | 1 pcs |
Module Bracket | Stainless steel | 4 pcs |
Lightning arrester | 1 pcs | |
Power Cabinet | 1 pcs |
Solar Power System | |||
3KWp large polysilicon solar power system configuration | |||
Solar Power Specifications | AC220V output from the two-phase polycrystalline silicon solar power system net- | Remarks | |
Load power 5000W/AC220V, while 70% rate | |||
Solar power per day (hours) | 6 | The load | |
Estimates of electricity generation sunny day (W. Hr) | 13500 | That is 13.5 kWh | |
Maximum daily load power consumption (W. Hr) | 12600 | That is 12.6 kWh | |
Rainy days, solar power is insufficient | 2-3 days of storage power supply systems | ||
Solar panel array | Use solar panels veneer peak power (Wp) | 150 | 72V/2.08A |
With the number of solar panels (blocks) | 20 | ||
The total output of solar panel array peak power (Wp) | 3000 | ||
Single cell plate dimensions (mm) | 809 * 1581 * W long thick 40 | Veneer Weight 14kg | |
Array of solar panels covering a total area (M2) | 39 | Panels layout plan | |
Price per watt solar panels | |||
Panels total price | |||
Batteries | Selection of high quality fully sealed, maintenance-free battery specifications | DC12V | |
Batteries | 24 | Life of 10-12 years | |
The total capacity of battery (Ah) | 48V/300AH | Ambient temperature -55 ~ +75 °C | |
Battery price | |||
Other configuration | Automatically switch charge and discharge controller 1 set | Specifications DC48V/150A | |
Sine wave inverter | DC48V/AC220V 3000W | ||
AC output power distribution cabinet | |||
Other costs | Solar panel array brackets, battery rack | ||
Solar power system wiring and cable, auxiliary | |||
7KWp large polysilicon solar power system configuration | |||
Solar Power Specifications | AC220V output from the two-phase polycrystalline silicon solar power system net- | Remarks | |
Load power 7000W/AC220V, while 70% rate | |||
Solar power per day (hours) | 6 | The load | |
Estimates of electricity generation sunny day (W. Hr) | 31500 | Electricity that is 31 degrees | |
Maximum daily load power consumption (W. Hr) | 29000 | Electricity that is 29 degrees | |
Rainy days, solar power is insufficient | 2-3 days of storage power supply systems | ||
Solar panel array | Use solar panels veneer peak power (Wp) | 200 | 72V/2.78A |
With the number of solar panels (blocks) | 35 | ||
The total output of solar panel array peak power (Wp) | 7000 | ||
Single cell plate dimensions (mm) | 995 * 1646 * W long thick 50 | Veneer Weight 19.13kg | |
Array of solar panels covering a total area (M2) | 60 | Panels layout plan | |
Price per watt solar panels | |||
Panels total price | |||
Batteries | Selection of high quality fully sealed, maintenance-free lead-acid battery specifications | DC12V | |
Batteries (unit) | 80 | Life of 10-12 years | |
The total capacity of battery (Ah) | 48V/1500AH | Ambient temperature -55 ~ +75 °C | |
Battery price | |||
Other configuration | Automatically switch charge and discharge controller | Specifications DC48V/100A | |
Sine wave inverter | DC48V/AC220V 3000W | ||
AC output power distribution cabinet | |||
Other costs | Solar panel array brackets, battery rack | ||
Solar power system wiring and cable, auxiliary |
We can be customized small system from 5W~1000W,also can custom large system 1KW~5MW.
