gasoline engine, petrol engine, single phase gasoline engine, air cooled gasoline engine, portable gasoline engine, electric start gasoline engine, OHV petrol engine, 4-stroke petrol engine.
- 3HP--15HP gasoline engine
- One year warranty
- Container order with 8% free extra spare part
1)Horizontal shaft
2)Oil alert
3)Easy handling
4)Strong power and reliable quality with low noise
5)Cast iron cylinder, more wear-resistant.
Specifications:
| Model | GE168FB GX200 |
| Engine Type | Air-cooled, 4-Stroke, OHV, single cylinder, Gasoline Engine |
| Bore x Stroke [mm] | 68*45 |
| Displacement Capacity [cc] | 196 |
| Compression Ratio | 8.5 : 1 |
| Net Horse Power Output [hp] | 6.5 |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) |
| Ignition System | Transistorized magneto ignition |
| Starting System | Recoil or Recoil/12V Electric |
| Carburetor | Horizontal type butterfly valve |
| Lubrication System | Forced splash |
| Governor System | Centrifugal mechanical |
| Air Cleaner | Dual element type (opt Cyclone type) |
| Oil Capacity [Liter] | 0.6 |
| Fuel Tank Capacity [liter] | 3.1 |
| Balancing System | Single, Counter-Rotating, Balancer Shaft |
| Length [mm] | 321 |
| Width [mm] | 376 |
| Height [mm] | 335 |
| Dry Weight (Recoil start) [kg] | 16 |
FAQ:
1. Q:What is your MOQ of this item?
A: Sample order is acceptable.
2. Q: What is the lead time?
A: As usually, 25-35 days after receiving TT deposit or L/C. But we will finish order with shorter time for your urgent need.
3. Q: Where is your loading sea port?
A: Fuzhou, China.
4. Q: Is it all right to make customer’s own brand name?
A: We can be your OEM manafacture with your authorization of brand..
5. Q: What is your company available production capactiy?
A: One 40HQ container can be finished per day. The more quantities, the same delivery time.
Warranty:
(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.

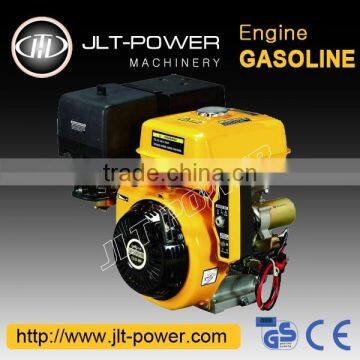

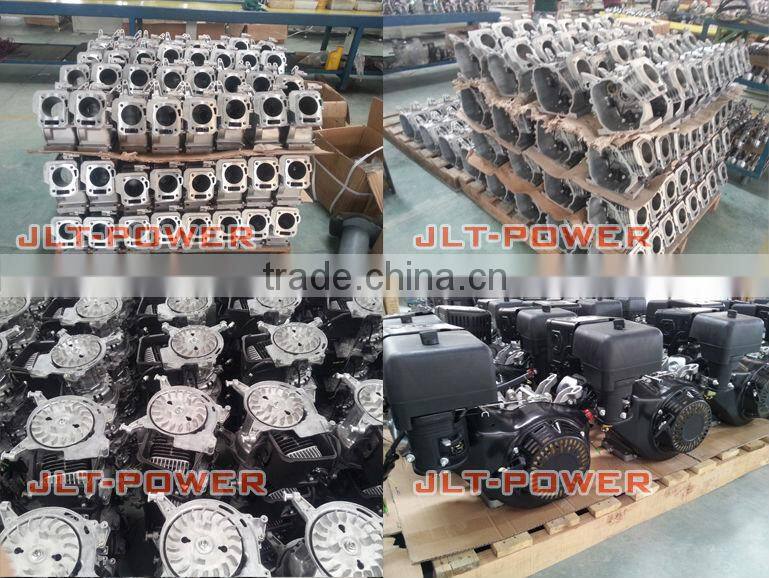

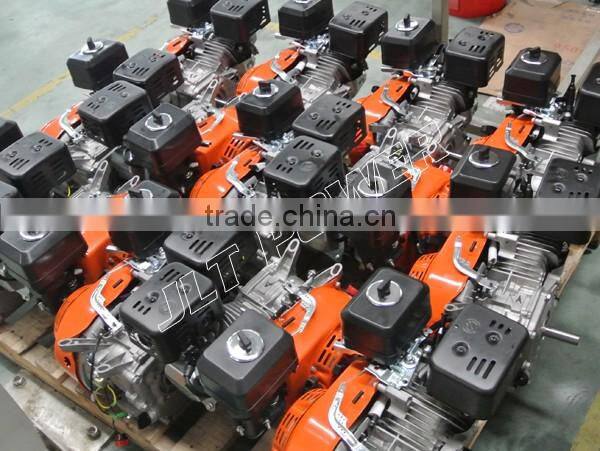

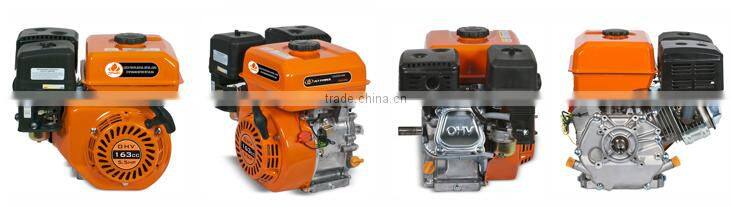

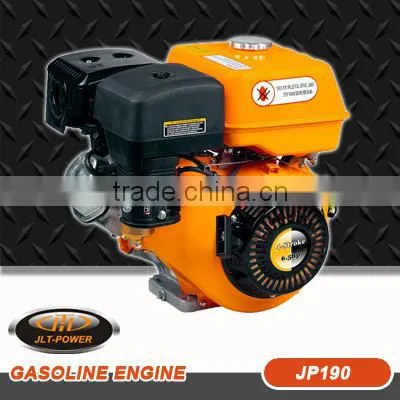

Products shows

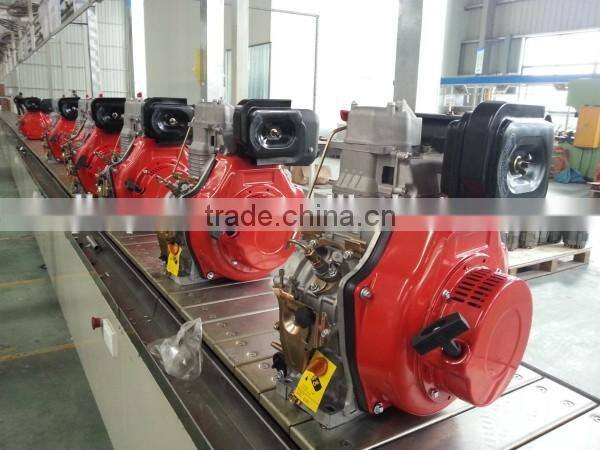

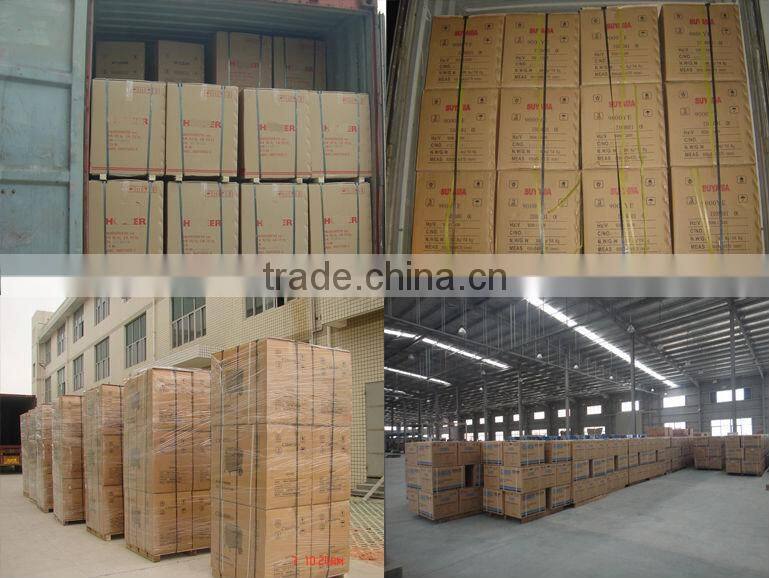

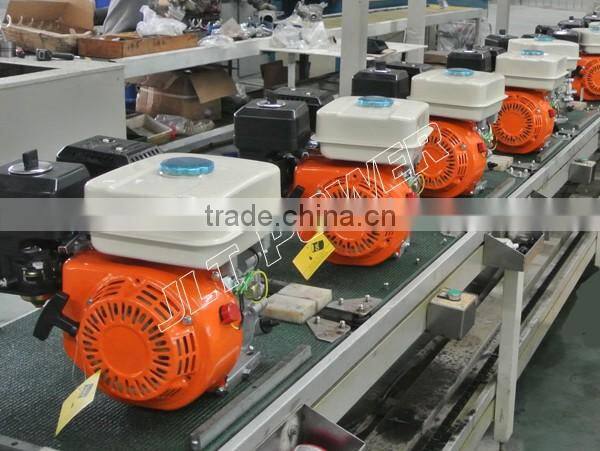

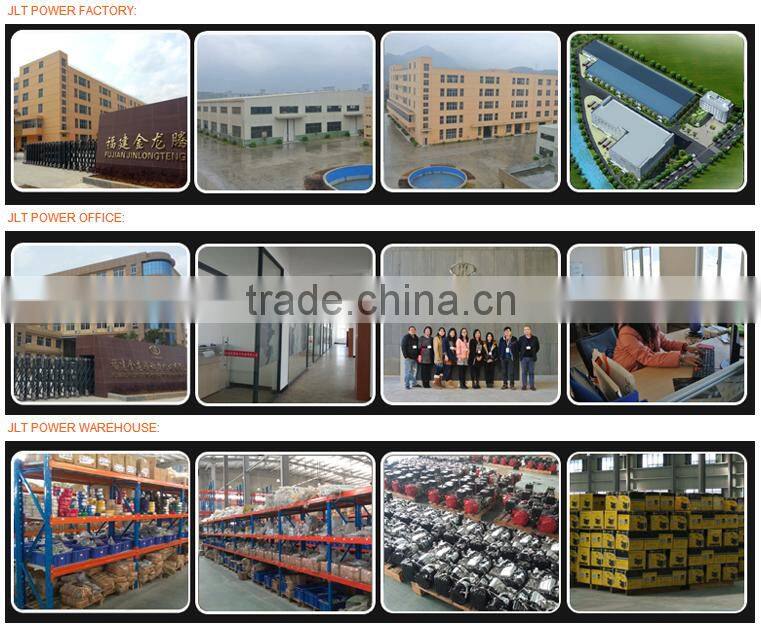

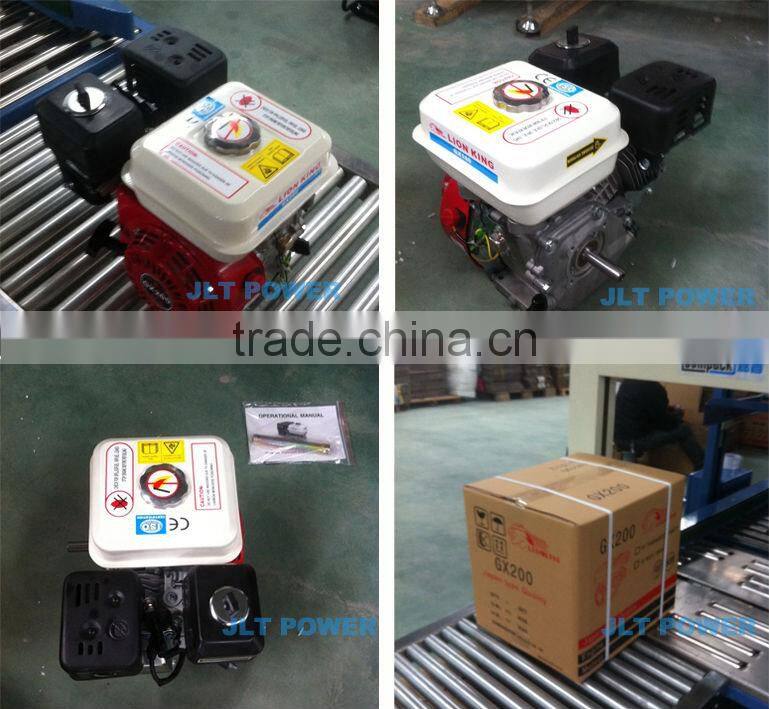

Factory show:
Certification:
Our Services
01.Some spare part can be offered free.
02.Can design on client 's demand,and offer OEM service
03.We are a sales team, but with professional engineer help you solve technical problem.
04.We promise that deal with your complaint within 24hours.
05.make sure that your orders and delivery on time
