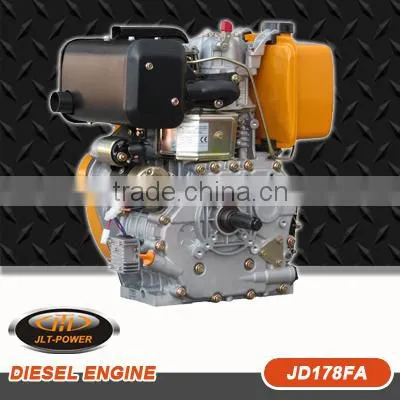

8hp Diesel Engine
- 5HP--10HP diesel engine
- One year warranty
- Container order with 8% free extra spare part
| Model | JD170 | JD178 | JD186 |
| Type | Air-cooled,4 stroke,OHV,single cylinder,Diesel Engine | ||
| Bore X Stroke(mm) | 70x55 | 78x64 | 86x72 |
| Displacement Capacity(cc) | 211 | 296 | 418 |
| Max Output(HP0 | 4 | 6 | 10 |
| Rated Power | 3600 | 3600 | 3600 |
| Starting System | Recoil or electric starter | ||
| Fuel Consumption(g/Kwh) | ≤288.3 | ≤285.6 | ≤288.7 |
| Fuel Tank Capacity | 2.4 | 3.3 | 5.4 |
| Noise Level at 7m(DB) | 93 | 95 | 96 |
| Net Weight/Gross Weight(KG) | 29/34 | 36/41 | 50/55 |
| Dimension(mm) | 427x380x462 | 475x455x518 | 525x480x592 |
| 20ft Container QTY | 400 | 240 | 192 |
| 40ft Container QTY | 830 | 508 | 400 |
Production photos:
Factory Show
Certification
Warranty
(1) Guarantee for one year or 1000 hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
FAQ
1. Q:What is your MOQ of this item?
A: Sample order is acceptable.
2. Q: What is the lead time?
A: As usually, 25-35 days after receiving TT deposit or L/C. But we will finish order with shorter time for your urgent need.
3. Q: What's your payment terms?
A: L/C and T/T
4. Q: Is it all right to make customer’s own brand name?
A: We can be your OEM manafacture with your authorization of brand..
5. Q: Are you factory or trading company?
A: We are trustworthy factory.
Our Services
01.Some spare part can be offered free.
02.Can design on client 's demand,and offer OEM service
03.We are a sales team, but with professional engineer help you solve technical problem.
04.We promise that deal with your complaint within 24hours.
05.make sure that your orders and delivery on time
