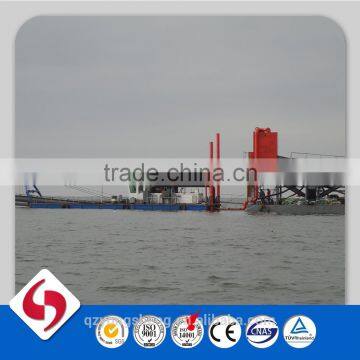

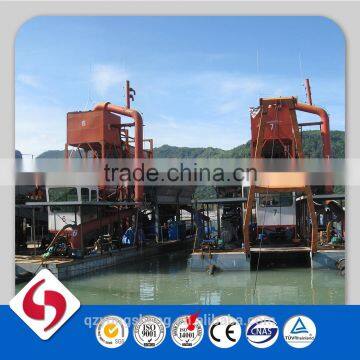

Iron-powder Seperator Ship

Name: Iron-powder Seperator Ship
Brand: Yongsheng
Availability: InStock
Rating: 4.8 (80 reviews)

FOB Price

USD $120,000 - $130,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Magnetic Separator	Place of Origin:	Shandong, China
Brand Name:	Yongsheng	Model Number:	YS-ISS-100

CSD- Dredging Depth-6m,100m³/h
Item	Parameter	Material
Dredging Bucket	50 pcs, Capacity-0.065m³	Bucket Mouth-Manganese Steel
Hull(L×W×H )	23.6m×2m×2m×1.14m	Q235
Total Power	250KW	WEICHAI
Reduction Box (ZQType)	750#(1set- buckets), 400#90(1 set- ladder winch )
Trommel Screen	Dia-130cm ,Length-160cm	19#Round steel (Oil drilling lift stem)
Ladder Frame	Height-5m	16U-steel
Bucket	Capacity-0.065m³

Link Plate	670mmX90mmX24mm	65# manganes, high frequency
Magnetic Seperator	Capacity-120m³/h L-2.4m×Dia-0.9m	4200Gs
Iron Pump	Capacity-120m³/h	WZ-20
Sand Pump	Capacity-400 m³/h	G-G-200
Pipe for Iron	Inner Dia-90mm	HDPE 400m
Pipe for Sand	Inner Dia-200mm	HDPE 200m
Floater	Length-0.8m Outer Dia-0.5m	10pcs
Ladder Wheel	Plate Thickness-20mm Bearing Type- 6324 / 6320 Bearing Dia -140mm / 110m
Cabin	3.6m³/h
Spare	Oil Seal. Chain Plate(8),
