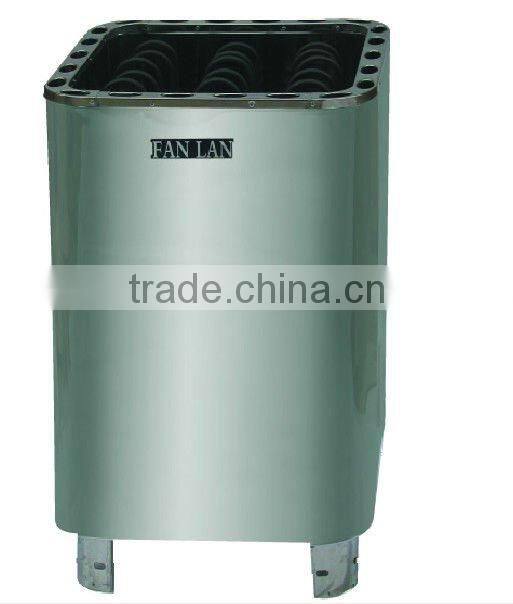

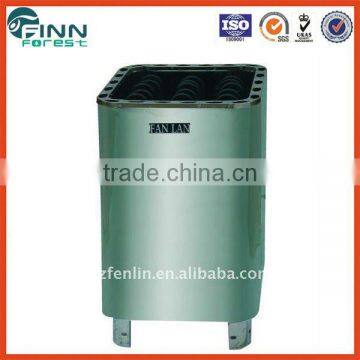

10.5-30kw wet steam bath stainless steel sauna heater

Specifications

1.Stainless steel
2.long life span
3.14 months guarantee
4.Fast heat up and energy efficiency

10.5-30kw wet steam bath stainless steel sauna heater



1.Discription of stainless steel sauna heater:



1)SAB Sauna heaters provide for both household and big-scal leisure places.

2)Marterial: stainless steel, galvanized sheet

3)The power range is from 10.5kw to 18kw; This kind of sauna heater is made of stainless steel 304 material, which is very suitable for large sauna center!







2.Specifications of sauna heaters:



1) Power: 10.5-18kW;
2) 1-8 hour pre-selected time setting;
3) 1-4 hour working time;
4) Controller: Knob controller or digital controller;
5) Safe and reliable performance.

6) Fast heat up and energy efficiency.



Voltage: 380V
Current: 14-41A or 7-14A
Phase: 3
Sauna room volume: 9-27CBM
Control type: Outside

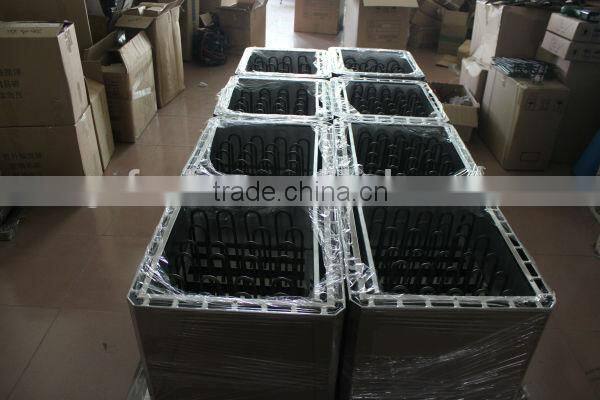

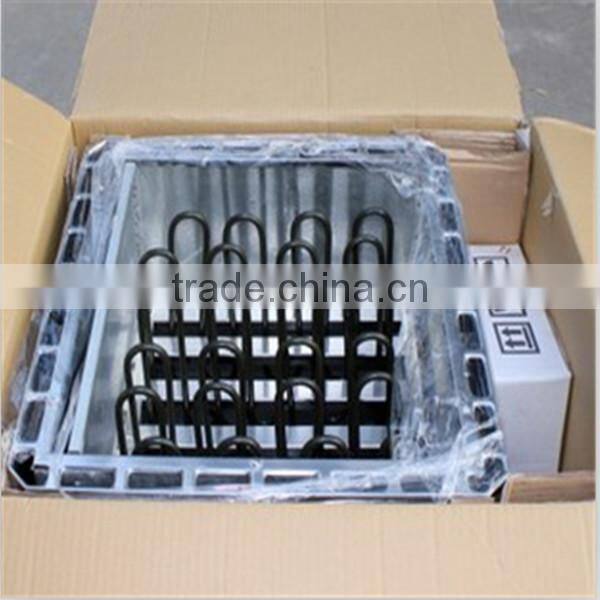

Outer packing: Carton, outside controller be packed in a box
Carton dimensions: 43*45*69cm
Box dimenisons: 32*28*12cm

Weight: 26kgs







Installation dimension:

















3.Technical parameters:



Model	Power(kw)	Voltage(V)	Phase	Applicable space(m³)	Control type	Current
SAB-105	10.5	380	3	9-15	outside	7-14A
SAB-120	12.0	380	3	10-18	outside	7-14A
SAB-150	15.0	380	3	14-24	outside	7-14A
SAB-180	18.0	380	3	15-27	outside	7-14A





4.Three kinds of sauna heater controllers for selection:
