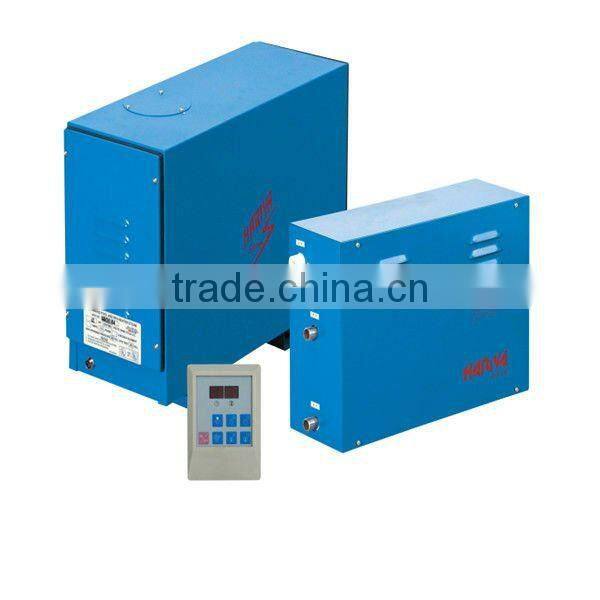

15kw digital outside controller pannel sauna bath steam turbine generator
Functions
1.Auto water drain function. Manually shut down or to the time of automatic shut down after 10minutes to turn on the 5munites drainage function.
2. set password and working times on control panel to control the working of steam generator.
3. System contains an overheat/dry-burnt protection system and a security valve, it could be prevent the overheating and assure the steam furnace is working at a regular air pressure.
4. Using the new design of heating elements and water separation to ensure that the heating elements can be used for long time.
5. Using the new technology to increase the steam efficiency by 20%30% than the traditional style. After power on the steam generator, the steam will come out of the steam generator in no more than 1minute.
6. Using a mechanical pressure relief valve and electronic pressure protection device to ensure the steam generator work more secure.
7. Using an automatic electric drain valve but not a solenoid valve to drain water more thoroughly, makes work more reliable and health.
Specification
| model | power(kw) | voltage(v) | specification(mm) | suitable space(m3) |
| HA-40 | 4.0 | 220/380 | 210*650*430 | 5 |
| HA-60 | 6.0 | 220/380 | 210*650*430 | 6 |
| HA-80 | 8.0 | 220/380 | 210*650*430 | 8 |
| HA-90 | 9.0 | 220/380 | 210*650*430 | 9 |
| HA-120 | 12 | 380 | 260*650*600 | 12 |
| HA-150 | 15 | 380 | 260*650*600 | 15 |
| HA-180 | 18 | 380 | 260*650*600 | 18 |
Application
Steam Generator Application Field :Hotel ,Spa Massage Club , Beauty Salon ,Sauna Steam Bath Room , Villa Family.

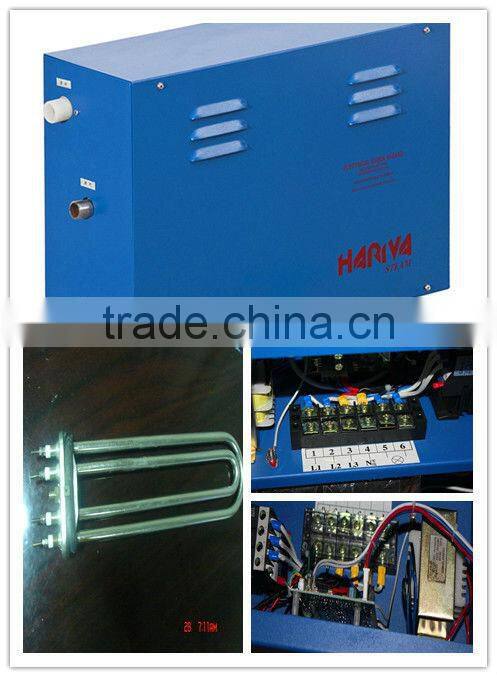

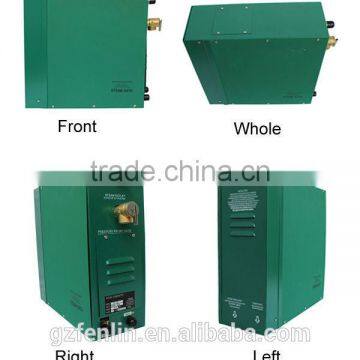

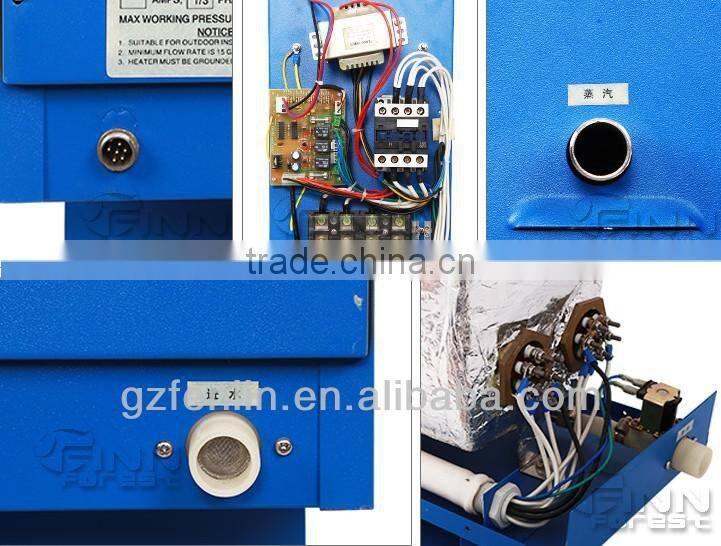

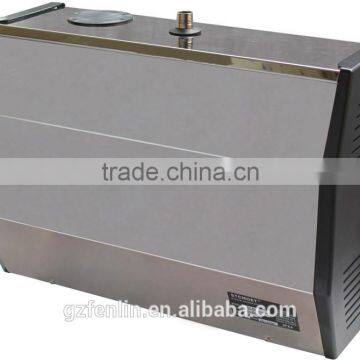

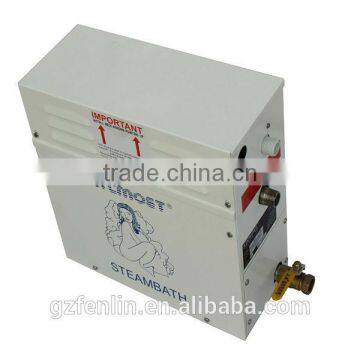

Details of steam turbine generator

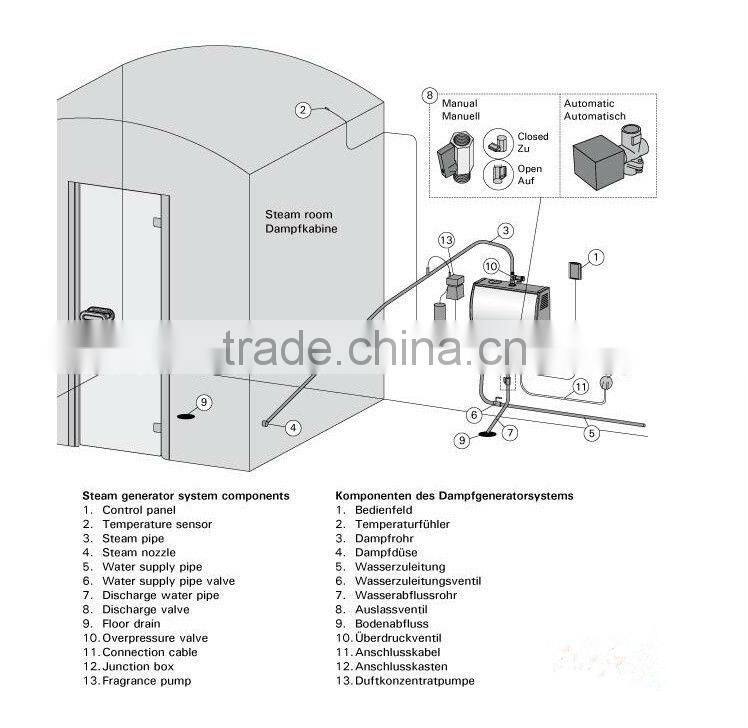

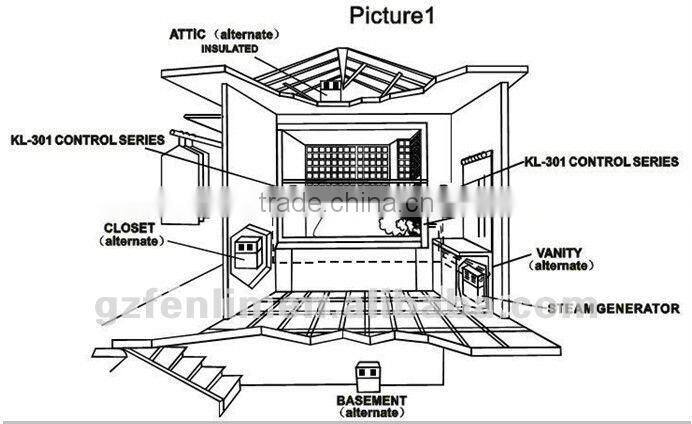

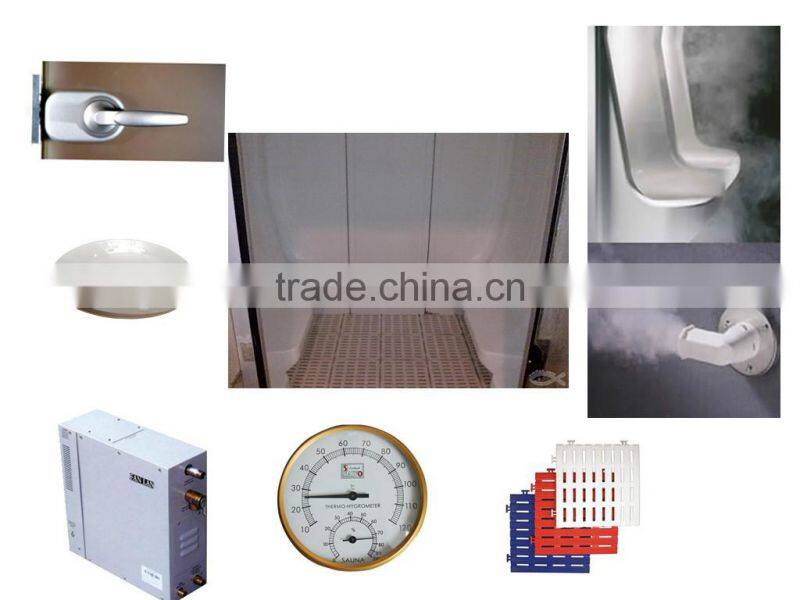

Detail install introduction of our wet steam room

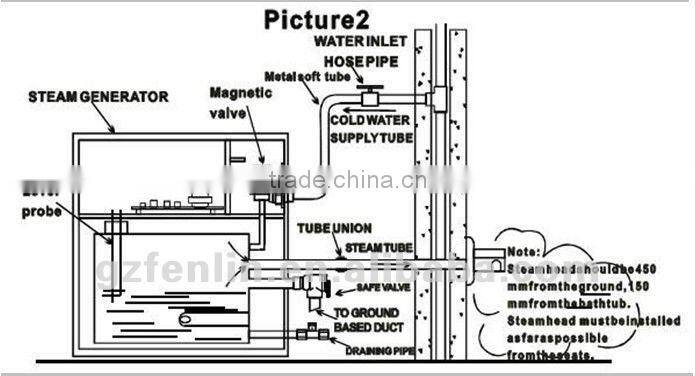

The brief instruction please see the follwing pictures

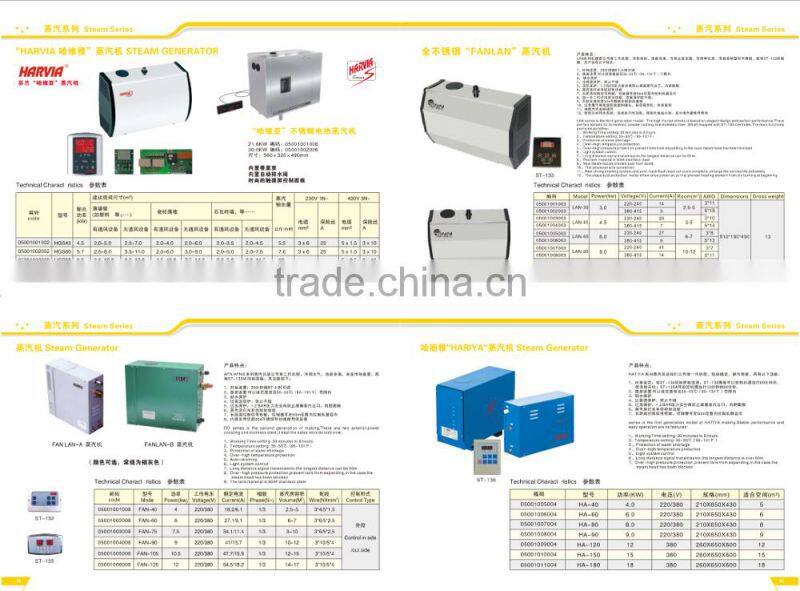

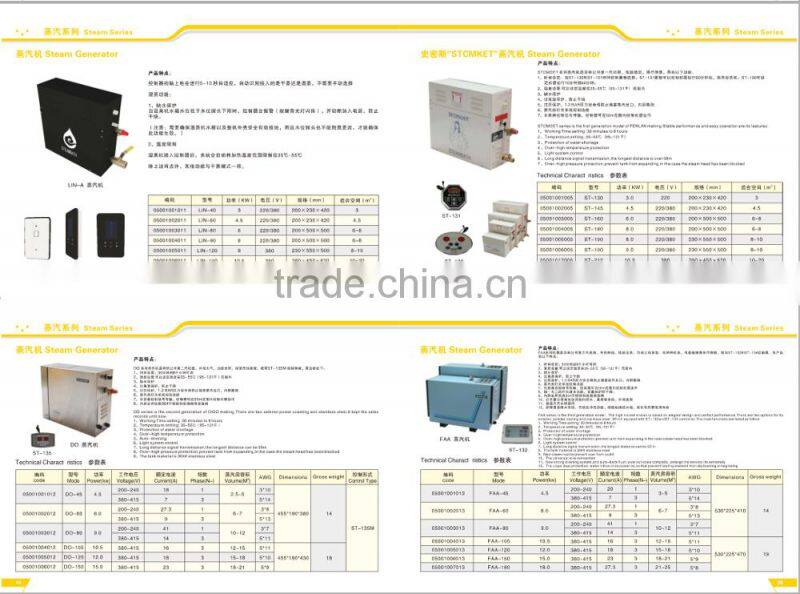

Other series steam generator

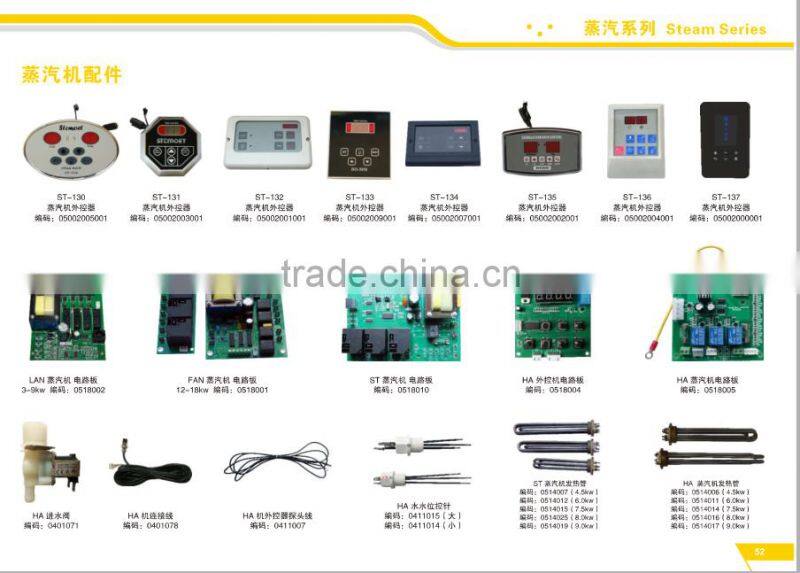

Whole set steam system
Our certification
How to contact us?
