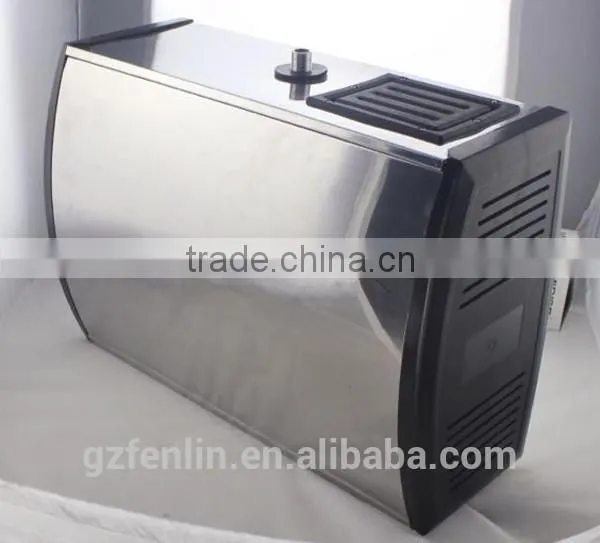

2017 Original Factory Sauna Room Stainless Steel Steamer
2017 Original factory Sauna room stainless steel steamer
< 11 years manufacturer, give you more competitive price and professional information;>
< Passed SGS , ISO and CE strict authentication, make sure the quality for you;>
< As a factory, provide you customize design services.>

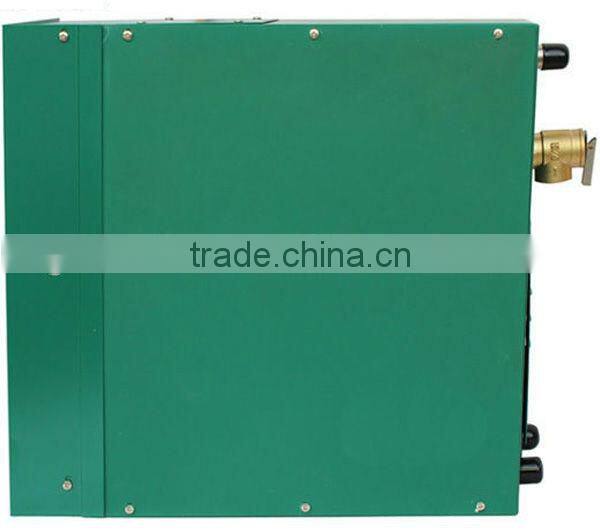

1.Sauna Steam Generator Description
FANLAN Steam -steam generator is a novelty that brings FANLAN's expertise in sauna bathing into steam rooms.
FANLAN Steam -steam generator is a novelty that brings FANLAN expertise in sauna bathing into steam rooms. It is an oasis of relaxation and good feeling. Let the humid heat pamper your senses and forget time and rush for a moment.
FANLAN Steam is easy to install. No separate mounting-rack is needed and coupling is dimensioned by standard. FANLAN Steam is also easy to maintain and user-friendly with splash proof construction, optional auto clean function and easy access to all changeable parts.

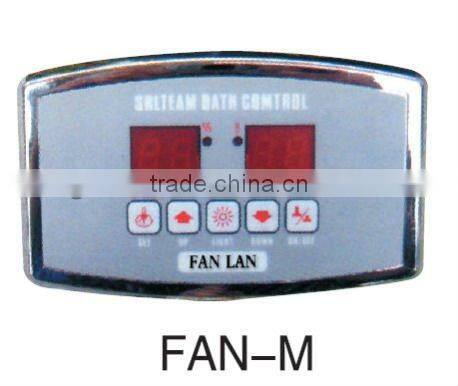

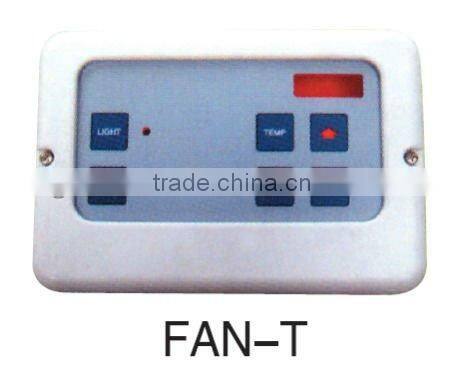

FANLAN Steam is controlled by a new separate control panel - FANLAN Griffin Steam. The digital control panel is easy to operate due to its large screen and simple control menu.
Controllers:
with the same tank, elements and steam outlet as the N-series, this generator is reliable and efficient. To operate,
switch on using the in-shower pneumatic button, then, when you are hot enough, simply switch it off again,
after 25 minutes, a safety timer will automatically switch the generator off. Available in four power options.
| Model | Power (kw) | Voltage (V) | Current (A) | Phase(N) | Room size | Wire(NXmm2) |
Control Type
|
| FAN-40 | 4 | 220/380 | 18.2/6.1 | 1/3 | 2.5-5 |
3*4/5*1.5 | Control inside/ outside |
| FAN-60 | 6 | 220/380 | 27.1/9.1 | 1/3 | 6-7 |
3*6/5*2.5 | |
| FAN-75 | 7.5 | 220/380 | 34.1/11.4 | 1/3 | 9-10 |
3*6/5*2.5 | |
| FAN-90 | 9 | 220/380 | 41/13.7 | 1/3 | 10-12 |
3*10/5*4 | |
| FAN-105 | 10.5 | 220/380 | 47.7/15.9 | 1/3 | 12-15 |
3*10/5*4 | |
| FAN-120 | 12 | 220/380 | 54.5/18.2 | 1/3 | 14-17 |
3*10/5*4 |
More other design and brands of our sauna steam generator
Sauna Steam Generator
STCMKET
FANLAN
HARIYA

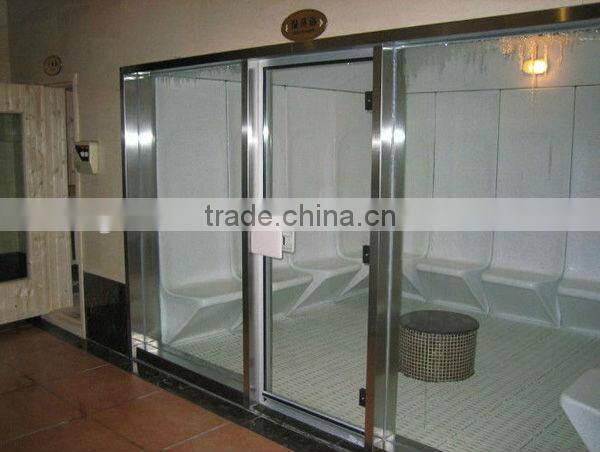

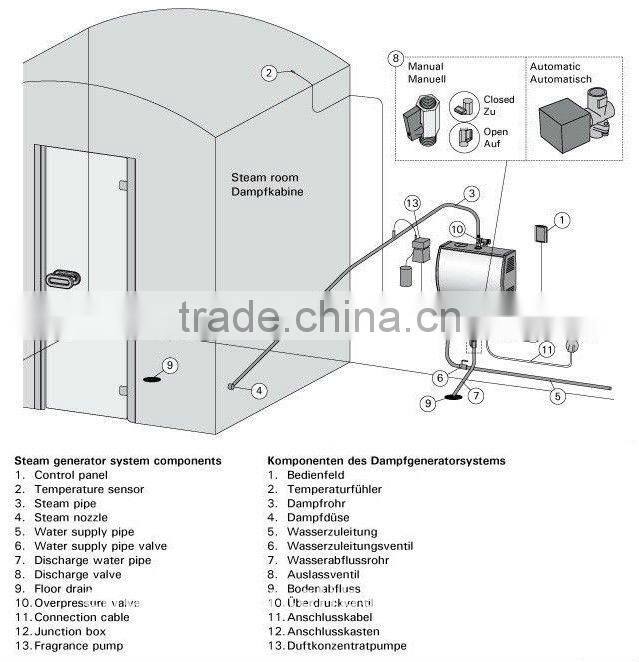

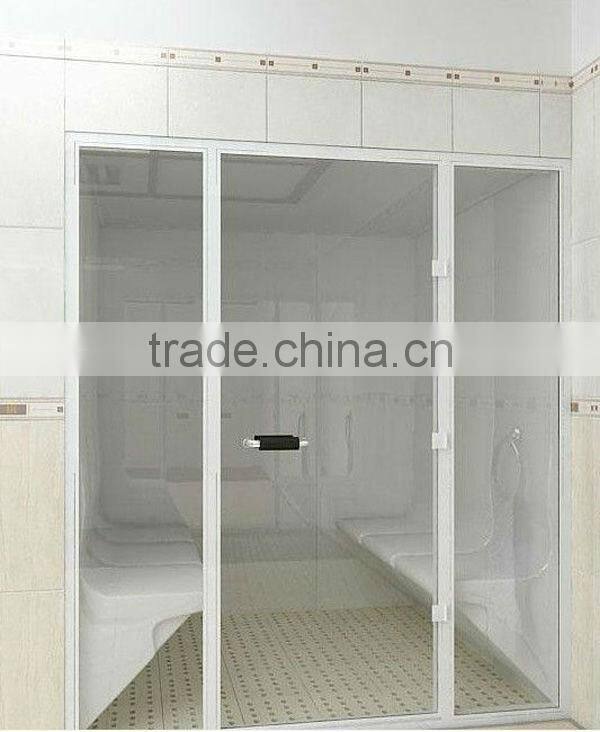

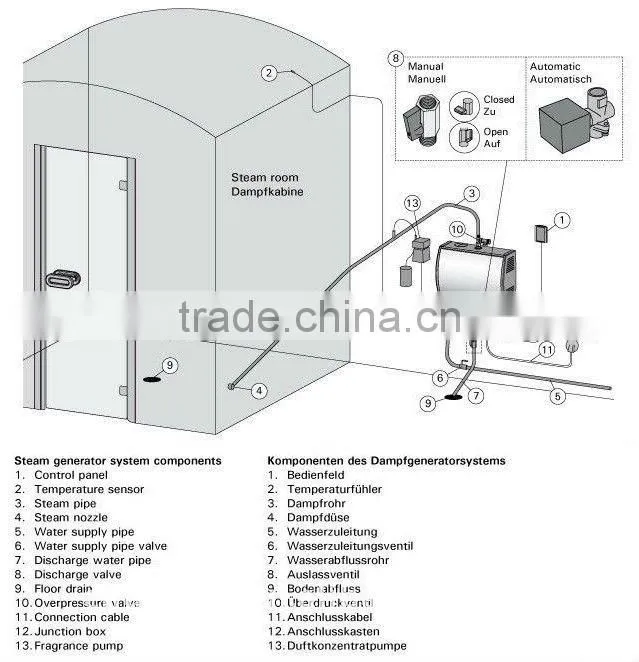

3.Steam room use the Steam Generator
4. How to choose a suitable sauna steam generator:
1). Calculate the room's volume(Length*Width*Height) in meter.
2). The power of the steam generator is equal to the CBM of the room, (eg: a 8m³ room should use a 8kw steam generator)
3). Usually, the machine power should be high than the volume number if the volume is not an integer, so that the room can reach the temperature in short time and it's good for the machine having a longer life span.
About US :
Guangzhou Fenlin Sauna Equipment Co., Ltd, established in 2004, professional in
producing and selling sauna equipments, swimming pool equipments, SPA equipments
and fountain equipments.etc.
Striving in creating, quality and service for these years, we have possessed our own brand,
in the meantime, have developed our foreign market of around one hundred countries as
well as developed a sales network covers most of the eastern big cities at home.
If you are intersted in our 2017 Original factory Sauna room stainless steel steamer, pls fee free to contact us.
Contact: Lauri Cui
Phone:+86 13808893514 or directly email me.
