Specifications

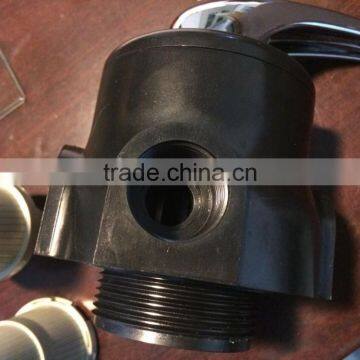

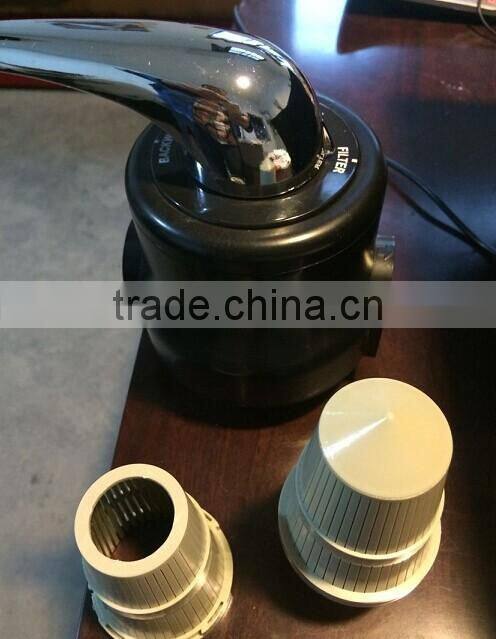

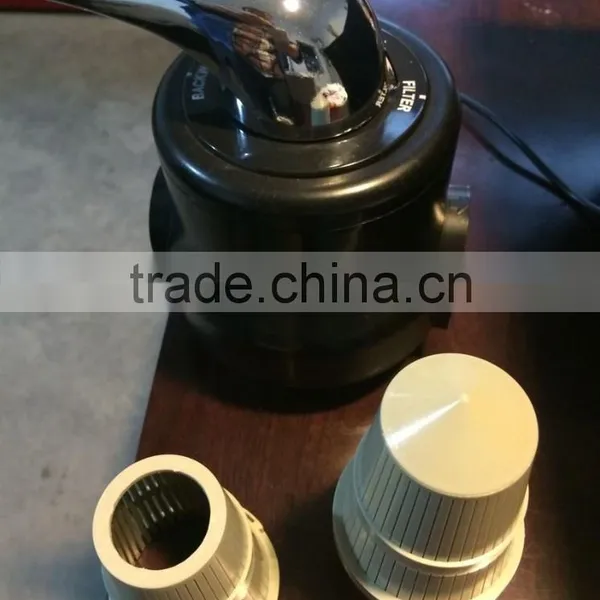

Manual multi gate filter valvefilter, flushing, backwash stations
Export diameter: 1"
Strong ABS body
Seal: ceramic
Manual multi gate water filter valve
Manual water filter valve
Manifold is optional
Manual multi gate filter valve is mainly used in water pretreatment filtration systems, home water purifier control.
A filter, flushing, backwash three stations. In order to achieve the original water filtration, filter cleaning.
Technical parameters:
Design pressure 1.0mpa
Working pressure <0.8MPa
Test pressure 1.2MPa
Using temperature <60
Use medium water, brine, Pharmacy (weakly alkaline)
Maximum filter traffic 5.0M³/ H
Export diameter G1"
Outfall pipe diameter G1"
Dock Connector Dimensions 2.5 "(72-8 teeth / inch)
Our products are made of high quality ABS main material reinforced, high strength, reliable quality.

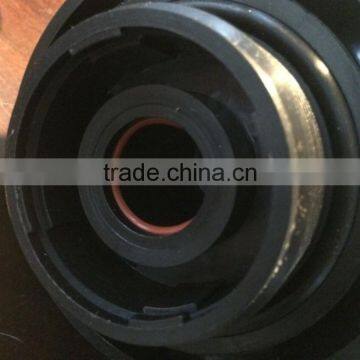

Seal: Ceramic with reliable sealing and long wear-life advantages
