Help CenterCast Gray Iron Pipe
Related Products
-
Cast Iron Drainage Pipe FittingsUS$ 1 - 100MOQ: 10 Pieces -
Cast Iron Pipe FittingsUS$ 0.01 - 100MOQ: 10 Pieces
-
Cast Iron Pipe Fittings-elbow, Wye, San TeeUS$ 0.1 - 100MOQ: 10 Pieces
-
Modified Combination Wye and 1/8 Bend DoubleUS$ 1 - 100MOQ: 10 Pieces
-
Cast Iron Bend With Side OpeningUS$ 1 - 100MOQ: 10 Pieces
Specifications
1.Real factory2.ASTM A888,CSA B70,EN877
3.Size:1.5'-15"
4.Length: 3m
5.Usage:drain,waste and vent
USE RANGE
Building install, dirty water and rain water exhausting,
exchanging dirty air with pure air, facilities of hygene room and sewerage pipe.
ADVANTAGE
1) Centrifugal casting, compact structure, free from pinhole porosity and slag,
smooth surface and eren wall thickness,anticorrosion, defend the noise.
2) Flexible joint, coupling facilitates installation and repair work, the exterior shape is bexutiful.
3) Lighter weight compared with sand-mould casting pipes and it's laying length increases 20-30% consequently.
SPECIFICATION
ASACODENO. |
SIZE |
B |
J |
T |
||||
Nor. |
Tol. |
Nor. |
Tol. |
Nor. |
Min. |
|||
0156 |
1.5 |
38.10 |
±2.29 |
48.26 |
±1.52 |
4.06 |
3.3 |
|
0158 |
2 |
49.80 |
±2.29 |
59.69 |
±2.29 |
4.06 |
3.3 |
|
0160 |
3 |
75.20 |
±2.29 |
85.09 |
±2.29 |
4.06 |
3.3 |
|
0162 |
4 |
100.08 |
±2.29 |
111.25 |
+2.29-1.27 |
4.83 |
3.81 |
|
0164 |
5 |
125.48 |
±2.29 |
134.62 |
+2.29-1.27 |
4.83 |
3.81 |
|
0168 |
6 |
150.88 |
±2.29 |
160.02 |
+2.29-1.27 |
4.83 |
3.81 |
|
0170 |
8 |
201.68 |
±3.3 |
212.85 |
+3.3-2.29 |
5.84 |
4.32 |
|
0171 |
10 |
254.00 |
±3.3 |
268.22 |
±2.29 |
7.11 |
5.59 |
|
0172 |
12 |
303.28 |
±3.3 |
317.5 |
±3.3 |
7.11 |
5.59 |
|
0173 |
15 |
383.79 |
±3.3 |
402.08 |
±3.3 |
9.14 |
7.62 |
|

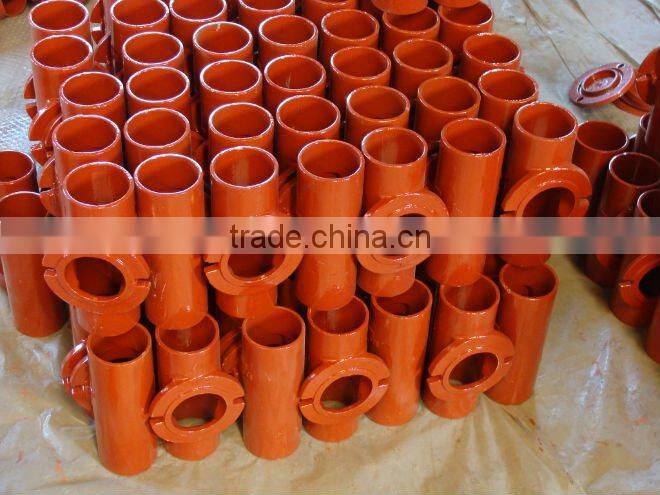

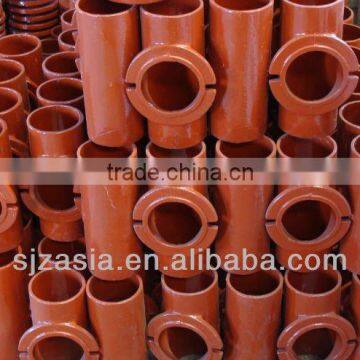

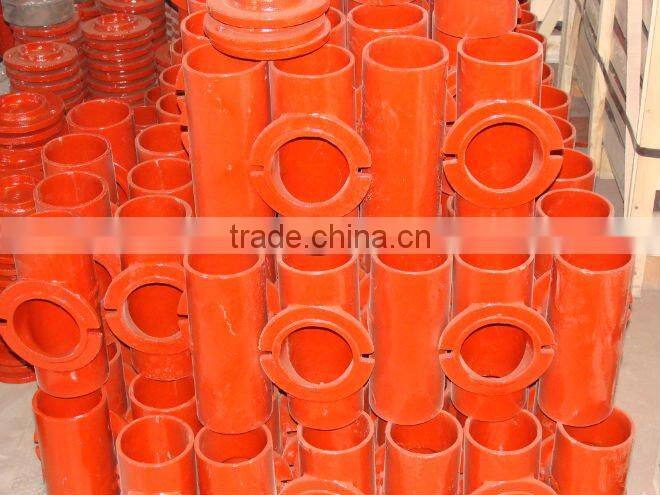

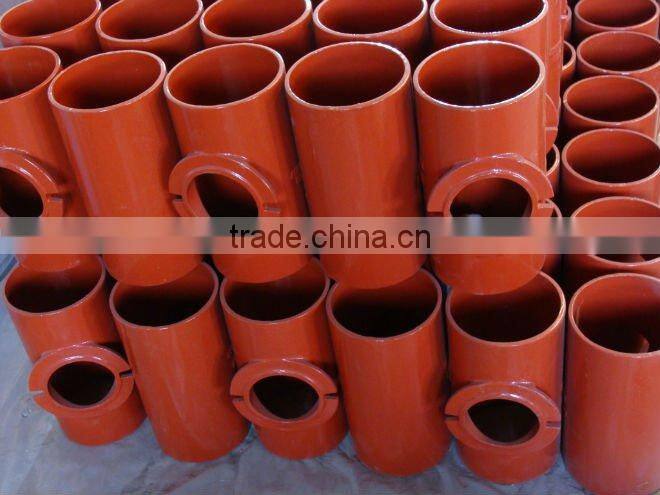

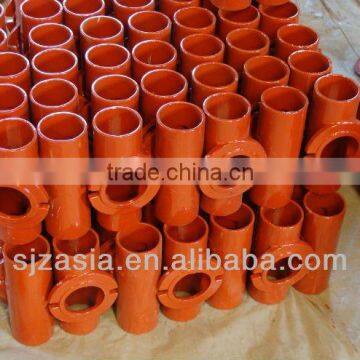

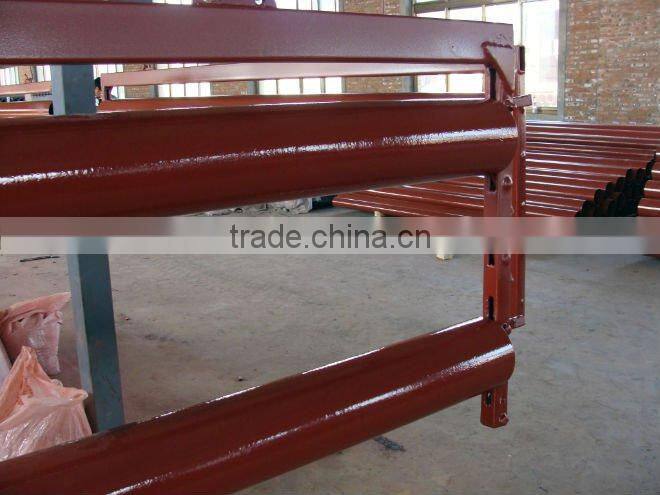

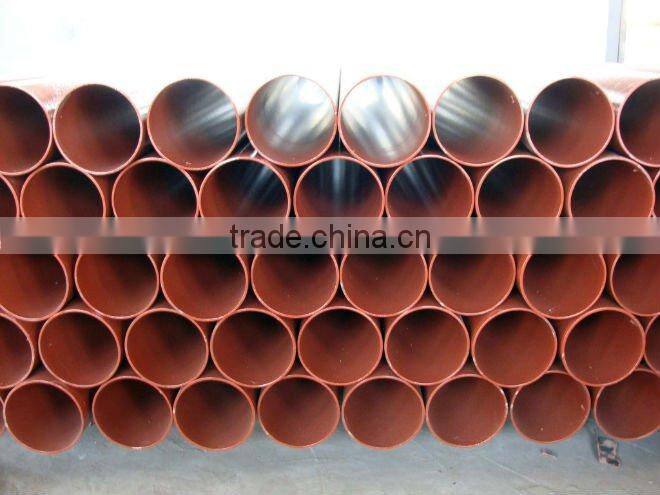

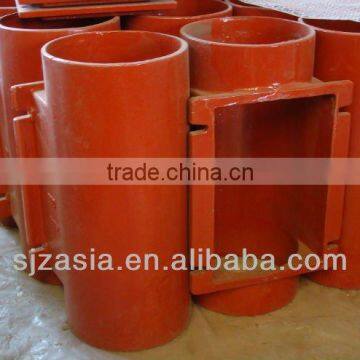

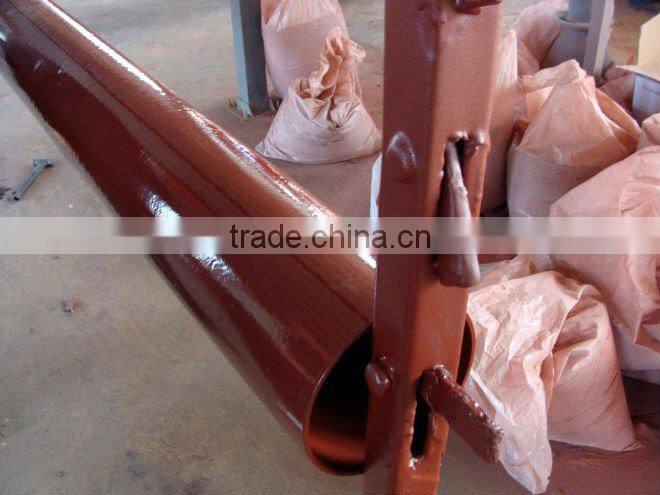

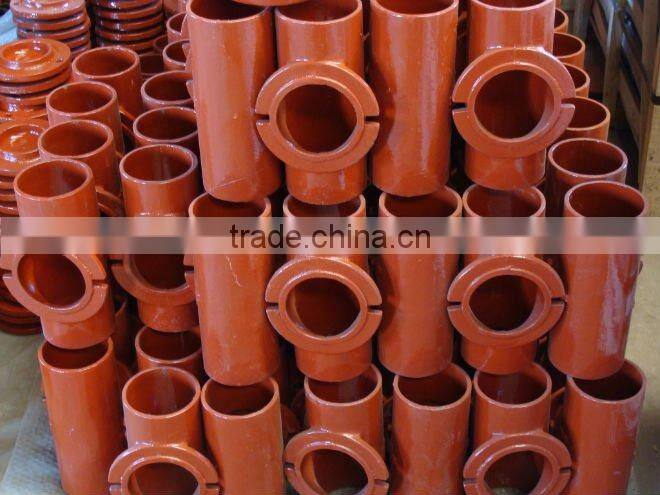

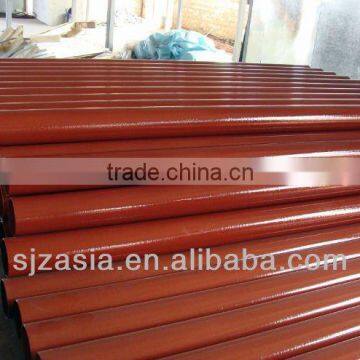

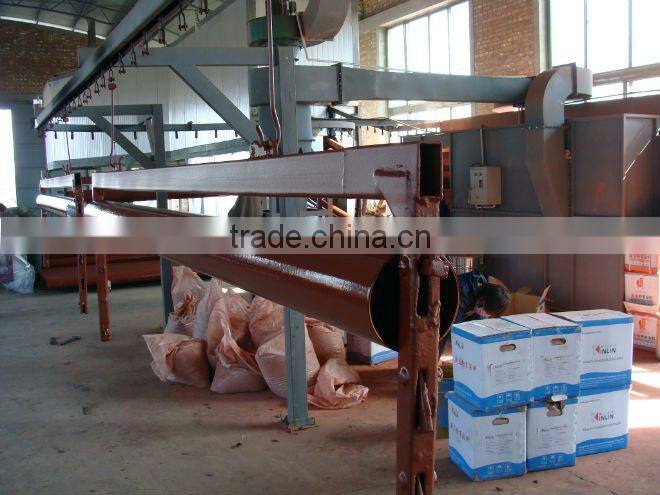

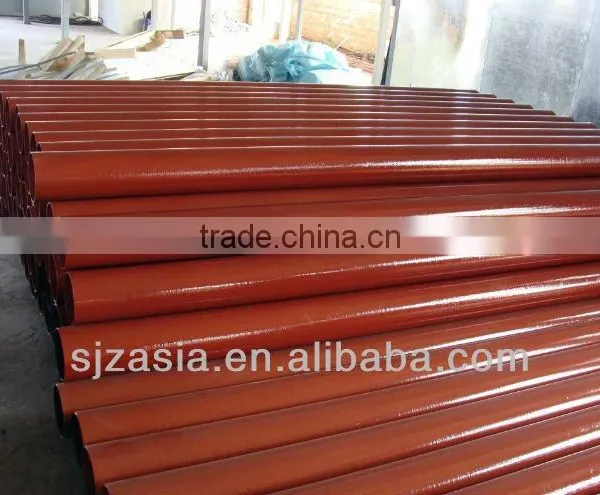

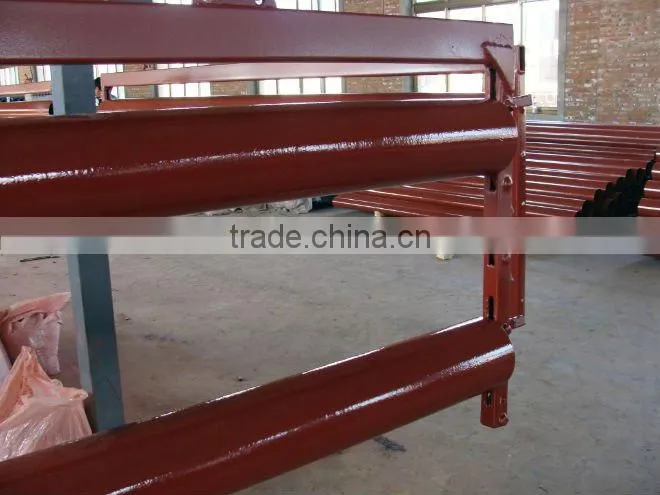

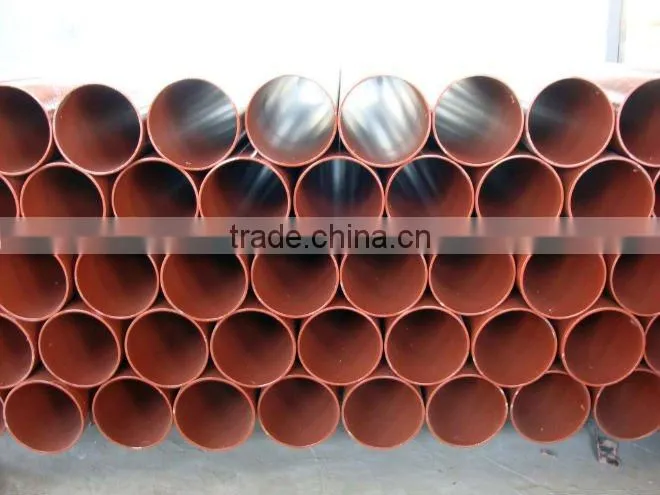

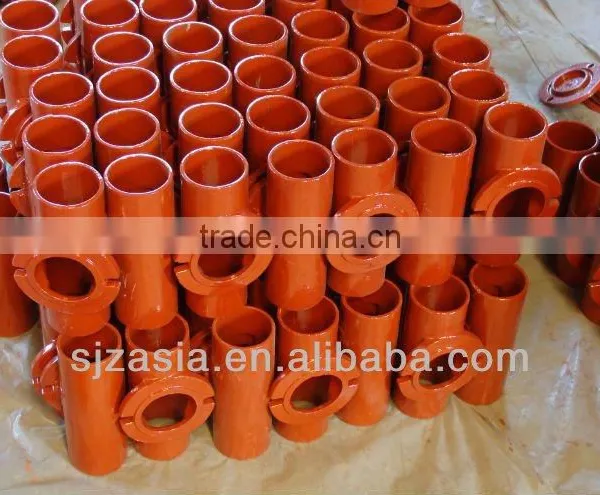

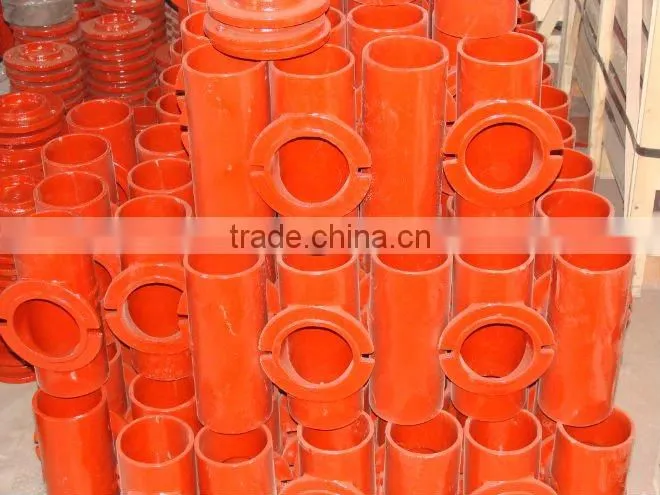

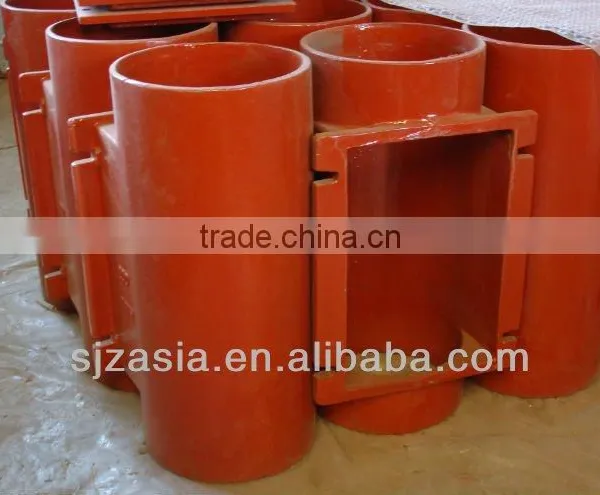

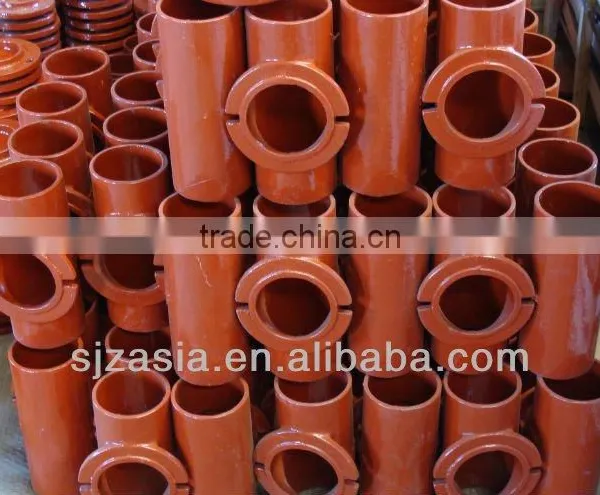

Some pictures:
|
|
|
|
|
|
|
|
