Specifications
cast iron pipe fittings-elbow, wye, san teeunder ASTM A888 & A74.
Be widely used in building install, washing room.

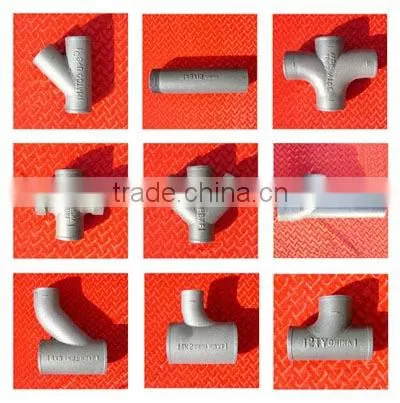

cast iron pipe fittings-elbow, wye, san tee
Use range: building install, dirty water and rainwater exhausting, exchanging dirty air with pure air, facilities of washing room and sewerage pipes, etc.
Centrifugal casting, compact structure, free from pinhole porosity and slag, smooth surface and even wall thickness, anticorrosion, defend the noise.
Flexible joint, coupling facilitates installation and repair work, the exterior shape is beautiful.
Lighter weighter compared with sand-mould casting pipes and its laying length increases 20-30% consequently.
Pipe wyes are used to to allow one pipe to join another pipe at some degree or angle. As the name suggests, the pipe wyes are Y-shaped pipe fitting devices. They are a popular type of pipe fitting used in various industrial applications.
Pipe wyes and pipe tees:
Pipe wyes are similar to pipe tees. The only difference is in that the branch line is angled to reduce friction which could hamper the flow. The pipe connection is typically at a 45-degree angle rather than a usual 90-degree angle. If a branch turns out at the end to be perpendicular to the through line, the pipe fitting becomes a "tee wye".
Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings. They are made of various materials and available in various sizes and finishes. Pipe tees are extensively used in pipeline networks to transport two-phase fluid mixtures.
