MS3816 CE small chain mortiser
- 10000 Unit / Units per Month
- QINGDAO
- T/T
-
LIVTER Pneumatic lifting big gong machine Woodworking milling furniture processing machine tenoning machine
-
LIVTER Electric Wood Milling Woodworking Flip Engraving Machine Multifunctional Slotting, Keyhole Trimming And Tenoning Machine
-
Automatic woodworking Horizontal double end mortising machine Tenoning Machine Mortise Machine MS3112B MS3112 for wood
-
MZ1610A wood working chain mortiser mortising machine mortise and tenon machine
-
LIVTER Mortiser Wood Machine Chisel Portable Chain Mortising Machines
-
LIVTER Mortajadora Vertical Portable Wood Mortising Machine Chain Mortising Machine Wood Mortising Machine
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | LEADER |
| Model Number: | MS3816 | Power(W): | 370w | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

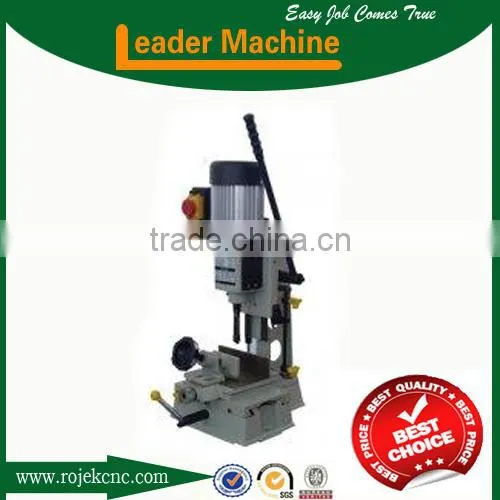

small chain mortiser
Model: MS3816
Model | MS3816 |
Chisel capacity | 6-16mm(1/4”-5/8”) |
Max mortising depth | 76mm(3”) |
Drill chuck capacity | 13mm |
Max clamping width | 80mm |
Travel in front and behind | 40mm |
Travel in left and right | 100mm |
Spindle to fence(Max) | 50mm |
Chisel to table(Max) | 100mm |
Table size | 180*120mm |
Fence size | 180*50mm |
Base size | 320*270mm |
Over height | 800mm |
Motor | 230v 50Hz 370w |
Spindle speed | 1400rpm |
N.G weight | 42/46kg |
Packing size | 670*450*340mm |
Units/20’ container | 400pcs |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
