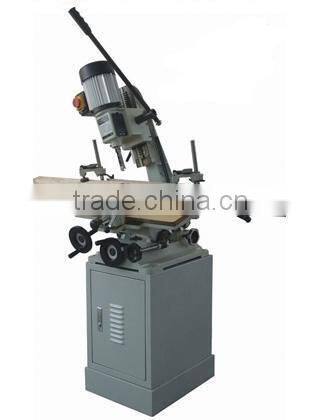

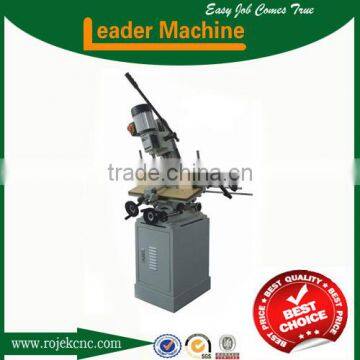

chisel mortiser for woodworking
Model: MS3840T
Model | MS3840T |
Chisel capacity | 6-26mm(1/4”-1”) |
Max mortising depth | 76mm(3”) |
Max clamping width | 160mm |
Drill chuck capacity | 3-16mm |
Travel in front and behind | 145mm |
Travel in left and right | 280mm |
Spindle to fence(Max) | 140mm |
Table size | 540*230mm |
Base size | 450*360mm |
Column tilt | ±20° |
Table tilt | ±20° |
Fence tilt | 0° |
Chisel to table(Max) | 210mm |
Over height | 1870mm |
Motor | 750w |
Spindle speed | 1400rpm |
N.G weight | Machine:110/140kg Stand:16/18kg |
Packing size | Machine:620*560*970mm Stand:500*400*630mm |
Units/20’ container | 60pcs |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
