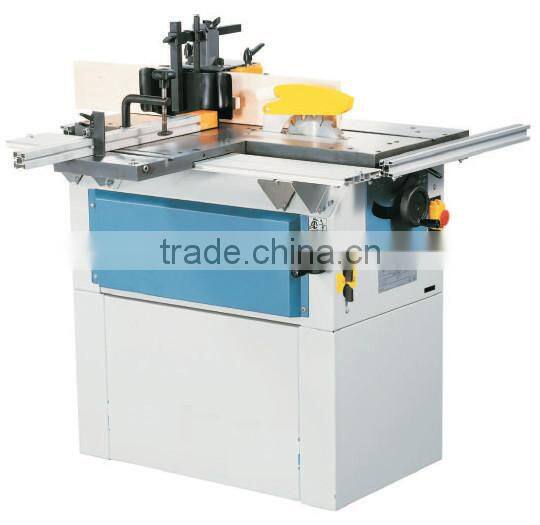

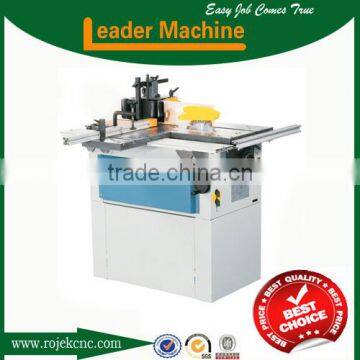

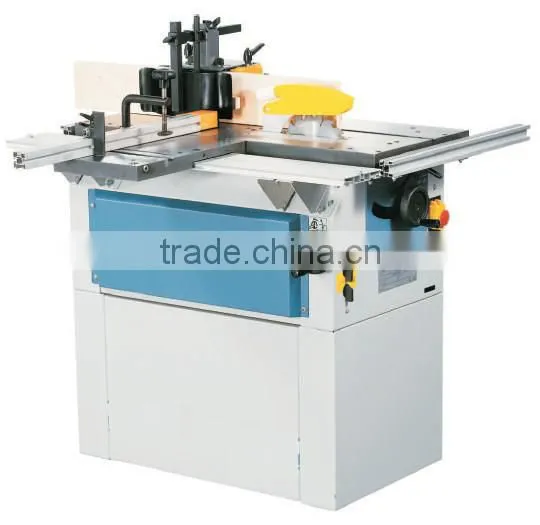

wood spindle moulder
Model:SM200
Table Size | 410mm x 940mm |
Table Saw Motor (Induction) | 1100w |
Cutting Depth at 90/45 degrees | 60mm / 42mm |
Blade Diameter x Bore | 200mm x 30mm or 254mm x 30 |
Blade Tilt | 90 - 45 degrees |
Sliding Table Stroke | 750mm |
Sliding Table Size | 400mm*250mm |
Spindle Moulder Motor (Induction) | 1500w |
Spindle Diameter x Height | 30mm x 83mm |
Maximum Tooling Diameter | 140mm |
Spindle Stroke | 80mm |
Spindle Speed | 6500rpm |
Dimensions (WxDxH) | 1170mm x 1130mm x 1160mm |
Weight | 148kg |
40' Container | 72 sets |
PS: Part of circular saw right handed or lefted handed version optional. | |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
