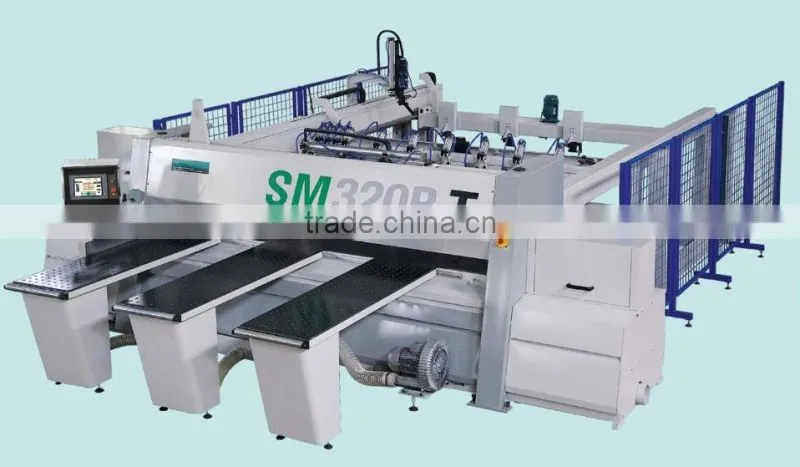

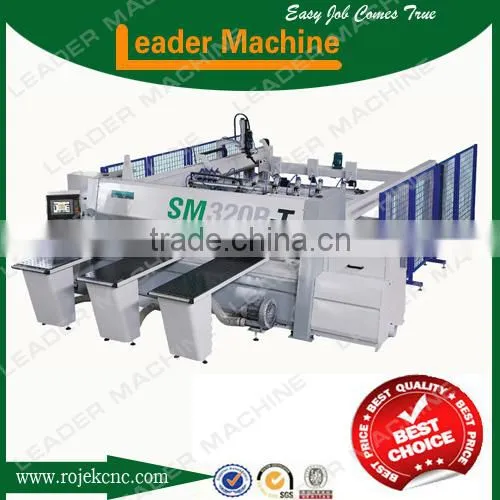

beam saws
Model: MJ-SM380
Patent No: 01213655.7
| model | MJ-SM260 | MJ-SM320 | MJ-SM380 |
| total weight | 4200kg | 4500kg | 5000kg |
| table size | 2600mm | 3200mm | 3800mm |
| mechanical area(L*W) | 5300*5500mm | 5900*6400mm | 6500*7000mm |
| working pressure | 6kg/cm2 | 6kg/cm2 | 6kg/cm2 |
| working voltage | 380v(three phase four wire) | ||
| power of main motor | 11kw | 11kw | 11kw |
| feed dirve power | 1.5kw | 1.5kw | 1.5kw |
| feeding power | 1kw | 1.5kw | 2kw |
| saw extension height | ≤75mm | ≤75mm | ≤75mm |
| cutting length | 2440mm | 3050mm | 3660mm |
| cutting speed | 0-50m/min | 0-50m/min | 0-50m/min |
| precisison cutting line | 0.2mm/2.4m | 0.2mm/2.4m | 0.2mm/2.4m |
| feeding accuracy | ±0.3mm | ±0.3mm | ±0.3mm |
| diagonal precision | 1200/2400<0.7mm | 1200/2400<0.7mm | 1200/2400<0.7mm |
| feeding speed | 25-30m/min | 25-30m/min | 25-30m/min |
| feeding length | 2440mm | 3050mm | 3670mm |
| electrical components | Touch screen,servo motors,servo drives,frequency converter ,PLC,and text display is reached by Taiwan Taida brand ;Switch and AC contactor;Schneider;,motor;Domestic. | ||
forward,back drive transmission | rack-and-pinion drive | ||
| speed manner | frequency conversion | ||
| feeding frame structure | pneumatic floating bead | ||
| positioning manner | pulse position control servo | ||
| main saw specifications | outter dia350mm inner bore30mm thickness4.4mm | ||
| scoring saw specifications | outter dia180mm inner bore30mm thickness4.3-5.3mm | ||
| saw the lord speed | 5000r/min | 5000r/min | 5000r/min |
| slot saw speed | 7000r/min | 7000r/min | 7000r/min |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
