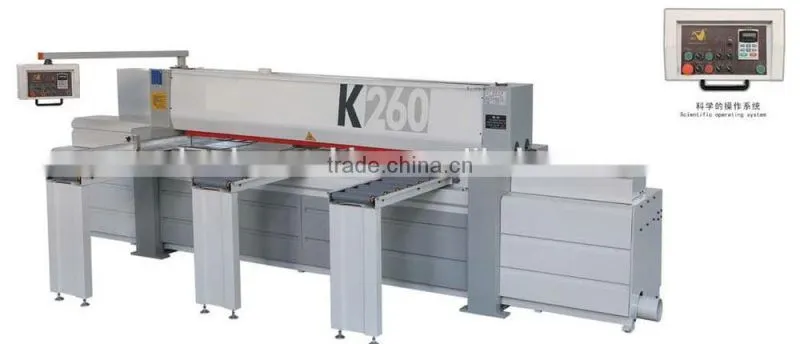

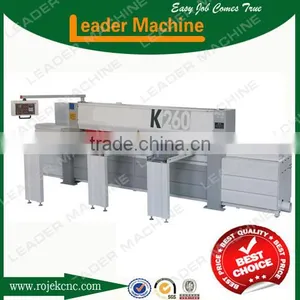

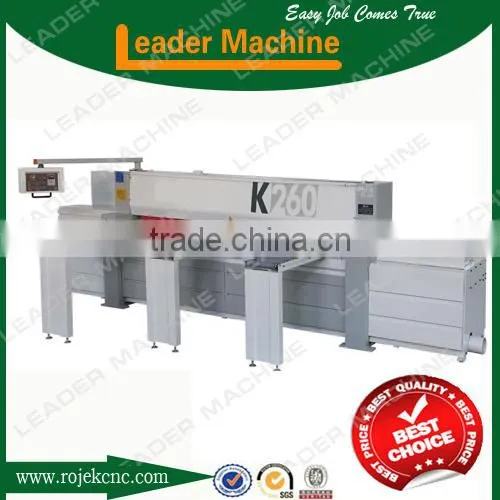

computerized panel saw
Model: MJ-K320
Patent No: 01213655.7
| model | MJ-K260 | MJ-K320 | MJ-K380 |
| total weight | 2500kg | 3000kg | 3800kg |
| working table size | 2600mm | 3200mm | 3800mm |
| machine size | 3400*5230mm | 3400*5830mm | 3400*6430mm |
| working pressure | ≥6kg/cm2 | ≥6kg/cm2 | ≥6kg/cm2 |
| power supply | 380v(three phase four line) | 380v(three phase four line) | 380v(three phase four line) |
| main motor power | 7.5kw | 7.5kw | 7.5kw |
| scoring saw motor power | 1.5kw | 1.5kw | 1.5kw |
| driving power | 1.5kw | 1.5kw | 1.5kw |
| saw blade projection height | ≤80mm | ≤80mm | ≤80mm |
| cutting length | 2440mm | 3050mm | 3660mm |
| cutting speed | 3-30m/min | 3-30m/min | 3-30m/min |
| cutting straightness precision | 0.2mm/2.4m | 0.2mm/2.4m | 0.2mm/2.4m |
| electrics | PLC | ||
| driving mode | chain | chain | chain |
| speed adjust | transducer | transducer | transducer |
| feeding rack | roller(or plane surface) | roller(or plane surface) | roller(or plane surface) |
| positioning mode | manual | manual | manual |
| main saw size | outter diameter | 350mm | |
inner diameter | 30mm | ||
thickness | 4.4mm | ||
| scoring saw size | outter diameter | 180mm | |
| inner diameter | 30mm | ||
| thickness | 4.3/5.3mm | ||
| main saw rotation | 5000rpm | ||
| slot saw speed | 7000rpm | ||
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
