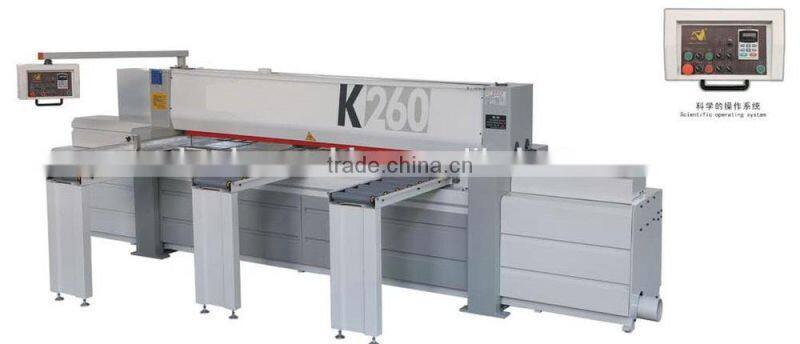

Computer Beam Saw
Model: MJK260
Patent No: 01213655.7
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
Computer beam saw
model | MJK260 | MJK320 | MJK380 | |
total weight | 2500KG | 3000KG | 3800KG | |
working table size | 2600MM | 3200MM | 3800MM | |
machine size(LXW) | 3400MM×5230MM | 3400MM×5830MM | 3400MM×6430MM | |
working pressure | ≥6KG/CM2 | ≥6KG/CM2 | ≥6KG/CM2 | |
working voltage | 380V3phase 4lines | 380V3phase 4lines | 380V3phase 4lines | |
main motor power | 7.5KW | 7.5KW | 7.5KW | |
scoring saw motor power | 1.5KW | 1.5KW | 1.5KW | |
driving power | 1.5KW | 1.5KW | 1.5KW | |
saw blade projection height | ≤80MM | ≤80MM | ≤80MM | |
cutting length | 2440MM | 3050MM | 3660MM | |
cutting speed | 3-30M/MIN | 3-30M/MIN | 3-30M/MIN | |
lineal cutting precision | 0.20MM/2440MM | 0.20MM/2440MM | 0.20MM/2440MM | |
electrics | PLC | |||
driving mode | chain | chain | chain | |
speed adjust | transducer | transducer | transducer | |
feeding rack | roller( or plane surface) | roller( or plane surface) | roller( or plane surface) | |
positioning mode | manual | manual | manual | |
main saw size | outter diameter | φ350MM | φ350MM | φ350MM |
inner diameter | φ30MM | φ30MM | φ30MM | |
thickness | 4.4MM | 4.4MM | 4.4MM | |
scoring saw size | outter diameter | φ180MM | φ180MM | φ180MM |
inner diameter | φ30MM | φ30MM | φ30MM | |
thickness | 4.3/5.3MM | 4.3/5.3MM | 4.3/5.3MM | |
main saw rotation | ≈5000rpm | ≈5000rpm | ≈5000rpm | |
scoring saw rotation | ≈7000rpm | ≈7000rpm | ≈7000rpm | |
