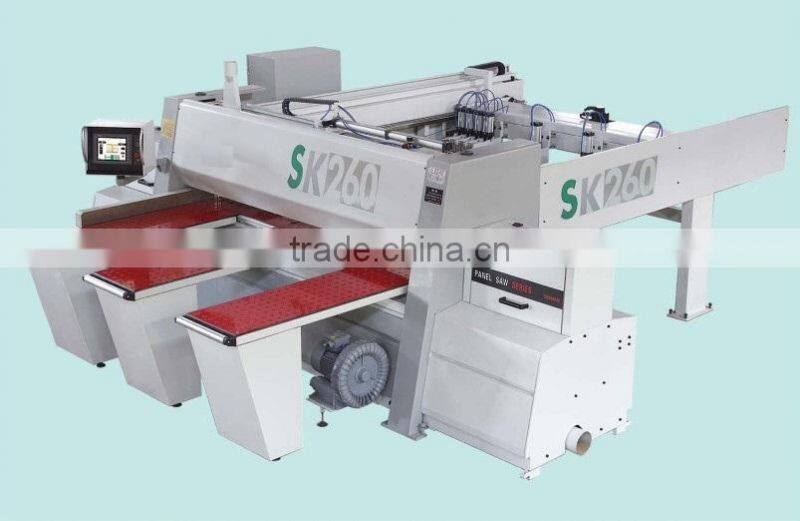

European Quality CE Computerized Panel Saw MJ-SK320

Model

MJSK260

MJSK320

MJSK380

Gross weight

4200KG

4500KG

5000KG

Workbench size

2600MM

3200MM

3800MM

Machine length

5300MM × 5500MM

5900MM × 6400MM

6500MM × 7000MM

Pressure

6kg/cm²

6kg/cm²

6kg/cm²

Power supply

380V(three-phase four-line)

380V(three-phase four- wire )

380V(three-phase four- wire )

main motor power

7.5KW

7.5KW

7.5KW

feeding driving power

1.5KW

1.5KW

1.5KW

feeder power

1KW

1.5KW

2KW

saw blade projectin height

≤75MM

≤75MM

≤75MM

cutting length

2440MM

3050MM

3660MM

cutting speed

0-50M/MIN

0-50M/MIN

0-50M/MIN

cutting straightness precision

0.20MM/2440MM

0.20MM/2440MM

0.20MM/2440MM

feeding precision

±0.3MM

±0.3MM

±0.3MM

catercorner precision

1200/2400 < 0.7MM

1200/2400 < 0.7MM

1200/2400 < 0.7MM

feeding speed

25~ 30M /MIN

25~ 30M /MIN

25~ 30M /MIN

feeding length

2440MM

3050MM

3670MM

pneumatic unit

Taiwan Actac

electric units

Touch screen , servo motor , servo driver , tranducer , PLC and text display are all made in TAIWAN; swiches and AC contactor: from France, stroke switch: Japan. Motor made in China

feeding and returning convey mode

Chain drive

speed adjust

transducer

feeding rack

pneumatic floating beads

positioning mode

pulse servo position control

main saw size

Outer diameter φ 350MM inner diameter φ 30MM thickness 4.4MM

scoring saw size

Outer diameter φ 1800MM inner diameter φ 30MM thickness 4.3 -5.3MM

main saw rotation

5000rpm

scoring saw rotation

7000rpm

The above data is for reference. Any modification is subject to the real products
