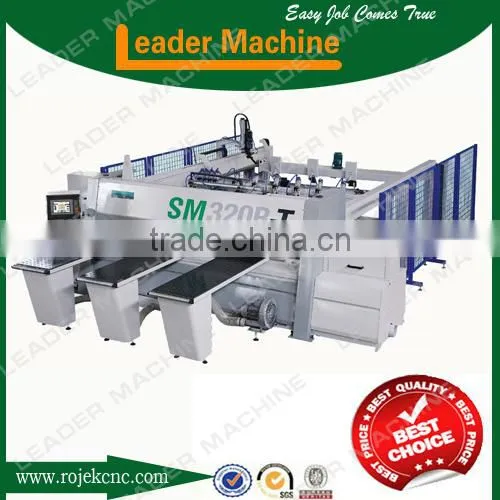

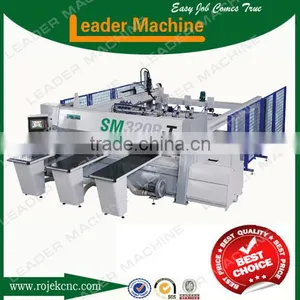

European Quality CE woodworking beam saws MJ-SM380B

Model

MJ-SM260B

MJ-SM320B

MJ-SM380B

Total weight

4000KG

5100KG

6200KG

Table size

2600MM

3200MM

3800MM

Mechanical area

4950×5500×1850MM

5550×6000×1850MM

6150×6200×1850MM

Working pressure

6KG/CM²

6KG/CM²

6KG/CM²

Working voltage

380V(three-phase four-wire)

380V(three-phase four-wire)

380V(three-phase four-wire)

Power of main motor

11KW

11KW

11KW

Feed drive power

2.2KW

2.2KW

2.2KW

Feeding power

1KW

1.5KW

2KW

Saw extension height

≤75MM

≤75MM

≤75MM

Cutting length

2440MM

3050MM

3660MM

Cutting speed

0-50M/MIN

0-50M/MIN

0-50M/MIN

Precision cutting line

0.2MM/2.4M

0.2MM/2.4M

0.2MM/2.4M

Feeding accuracy

±0.3MM

±0.3MM

±0.3MM

Diagonal precision

1200/2400<0.7MM

1200/2400<0.7MM

1200/2400<0.7MM

Feeding speed

25~30M/MIN

25~30M/MIN

25~30M/MIN

Feeding length

2440MM

3050MM

3670MM

Electrical components

Touch screen,servo motors,servo drives,frequency converter,PLC,and text display is reached by Taiwan Taida brand;Switch and AC contactor; Schneider;, motor; Domestic.

Forward,back drive Transmission

Gear Driver

Speed Manner

Frequency conversion

Frequency conversion

Frequency conversion

Feeding frame structure

Pneumatic floating bead

Pneumatic floating bead

Pneumatic floating bead

Positioning manner

Pulse position control servo

Pulse position control servo

Pulse position control servo

Main saw spesifications

Diaφ350MM  Inner boreφ30MM     Thickness4.4MM

Scoring saw specifications

Diaφ180MM Inner boreφ30MM   Thickness4.3-5.3MM

Saw the lord speed

5000 R/min

5000 R/min

5000 R/min

Slot saw speed

7000 R/min

7000 R/min

7000 R/min
