KSR-R-P1300 Belt Sander Machine

KSR-R-P1300 Belt Sander Machine photo-1
US$ 1 - 1 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name LEADER
Model Number KSR-R-P1300
After-sales Service Provided Engineers available to service machinery overseas

Belt Sander

Model:KSR-R-P1300

 KSR-R-P1300 Belt Sander machine

Product Description
modelR-RPR-P
Max working width1300mm1300mm
working thickness2.5-110mm2.5-110mm
No.1 abrasive belt speed20m/s20m/s
No.2 abrasive belt speed18m/s18m/s
No.3 abrasive belt speed12m/s12m/s
abrasive belt size1330*2200mm1330*2200mm
speed of conveyor belt6-38m/min6-38m/min
total motor power80.42kw(37,22,15)82.92kw(37,30,15)
working pressure0.55Mpa0.55Mpa
consumption of compressed air1.63m3/min1.63m3/min
average speed of sucked air25-30m/s25-30m/s
overall dimensions2700*2400*2000mm2700*2400*2000mm
net weight4700kg4700kg



Characteristics

Model:R-RP-P1300-1

Applied for thickness sanding and surface treatment of veneer, flakeboard and medium density fiberboard(MDF)

Model:R-R-P1300-2

Applied for thickness sanding and surface treatment of laminated word, sound board and hipboard.

Model:R-R-P1300-3

Applied for thickness sanding and surface treatment of medium density fiberboard(MDF),veneer and flakeboard.

The machine has welded steel structure with high strength and extended service life.

The machine features fault display and simplified maintenance. If the machine does not work properly, the machine will be switched off automatically and the conveyerwill lower for safety protection.

The Programmable Logic Controller(PLC) has been incorporated for control of the sander sway and workpiece thickness display to ensure anti-jamming capability of the machine.

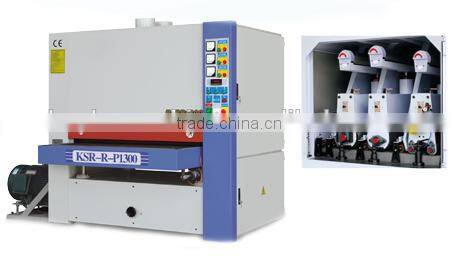

KSR-R-P1300 Belt Sander machine

KSR-R-P1300 Belt Sander machine

Company Information

We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.



Our Services



If you want to test the performance of machine ,we can sent sample to you with cost offer .



Customized Service :



Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.



After-sale Service



1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4)Engineers available to service machiner overseas
