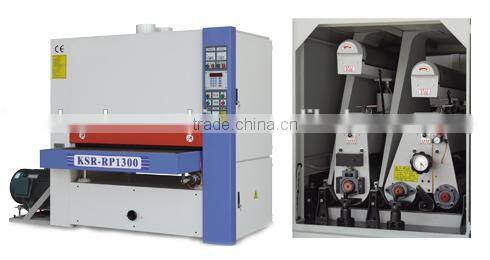

Woodworking Wide Belt Sander Machine
Model:KSR-RP1300
| model | R-RP | RP-P | R-P |
| Max working width | 1300mm | 1300mm | 1300mm |
| working thickness | 2.5-110mm | 2.5-110mm | 2.5-110mm |
| No.1 abrasive belt speed | 20m/s | 18m/s | 20m/s |
| No.2 abrasive belt speed | 18m/s | 12m/s | 12m/s |
| abrasive belt size | 1330*2200mm | 1330*2200mm | 1330*2200mm |
| speed of conveyor belt | 6-38m/min | 6-38m/min | 6-38m/min |
| total motor power | 56.74kw(30,22,4) | 41.74kw(22,15,4) | 56.74kw(37,15,4) |
| working pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
| consumption of compressed air | 1.5m3/min | 1.5m3/min | 1.5m3/min |
| average speed of sucked air | 25-30m/s | 20-30m/s | 25-30m/s |
| overall dimensions | 2700*2100*2100mm | 2700*2100*2100mm | 2700*2100*2100mm |
| net weight | 3300kg | 3200kg | 3200kg |
Characteristics

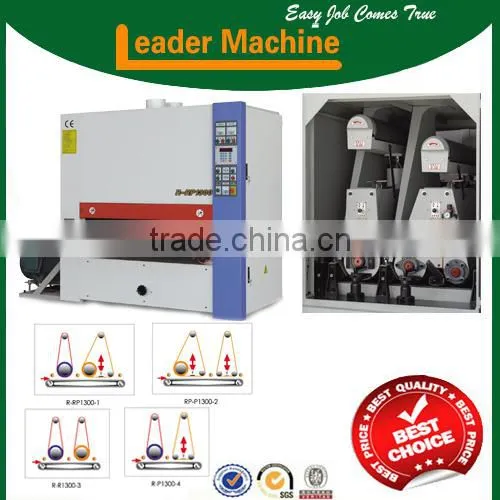

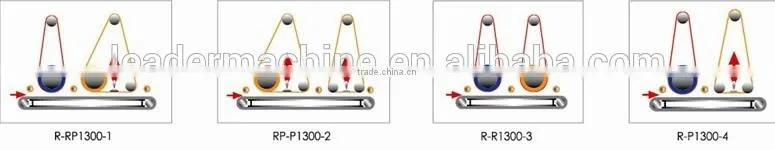

Model:R-RP1300-1
Applied for thickness calibrating, sanding and surface polishing of laminated wood, sound wood, composited flooring, hipboard and veneer.
Mode:RP-P1300-2, R-R1300-3 and R-P1300-4
Applied for thickness calibrating, sanding and surface polishing of sound wood, composite flooring, hipboard and veneer. An airbag sanding pad is used in the polishing process to gain high precision sanding result.

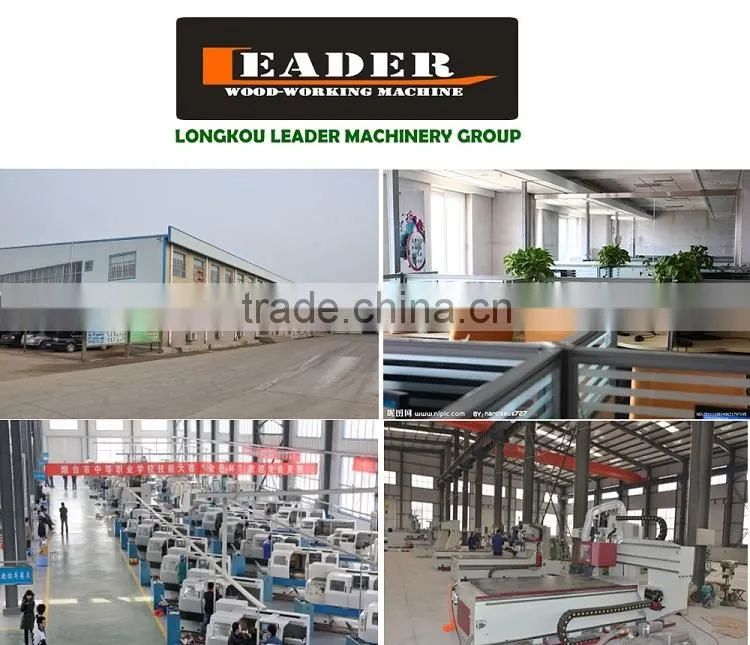

We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
