Belt Sander Machine

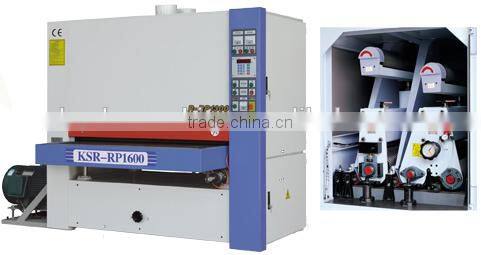

Model:KSR-RP1600
| model | R-RP | R-P |
| Max working width | 1600mm | 1600mm |
| working thickness | 2.5-110mm | 2.5-110mm |
| No.1 abrasive belt speed | 20m/s | 20m/s |
| No.2 abrasive belt speed | 18m/s | 12m/s |
| abrasive belt size | 1630*2500mm | 1630*2500mm |
| speed of conveyor belt | 6-38m/min | 6-38m/min |
| total motor power | 71.4kw(37,30.4) | 56.74kw(37,22.4) |
| working pressure | 0.55Mpa | 0.55Mpa |
| consumption of compressed air | 1.5m3/min | 1.5m3/min |
| average speed of sucked air | 30-35m/s | 30-35m/s |
| overall dimensions | 3100*2100*2200mm | 3100*2100*2200mm |
| net weight | 4500kg | 4500kg |

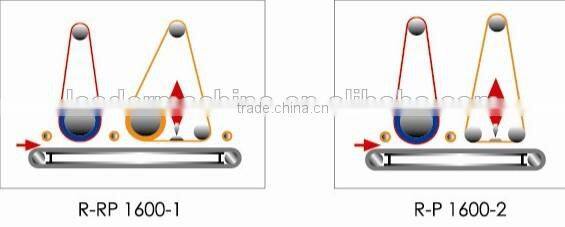

Model:KSR-RP1600-1
Applied for thickness calibrating and sanding of laminated wood and flakeboard.
Model:KSR-RP1600-2
Applied for thickness calibrating and precision sanding of veneer, flakeboard, sound board and parquetted veneer-overlay board.
The machine features fault display and simplified maintenance. If the machine does not work properly, the machine will be switched off automatically and the conveyer will lower for safety protection.
The Programmable Logic Controller(PLC) has been incorporated for control of the sander sway and workpiece thickness calibration display to ensure anti-jamming capability of the machine.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
