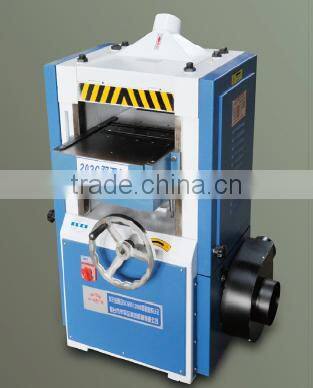

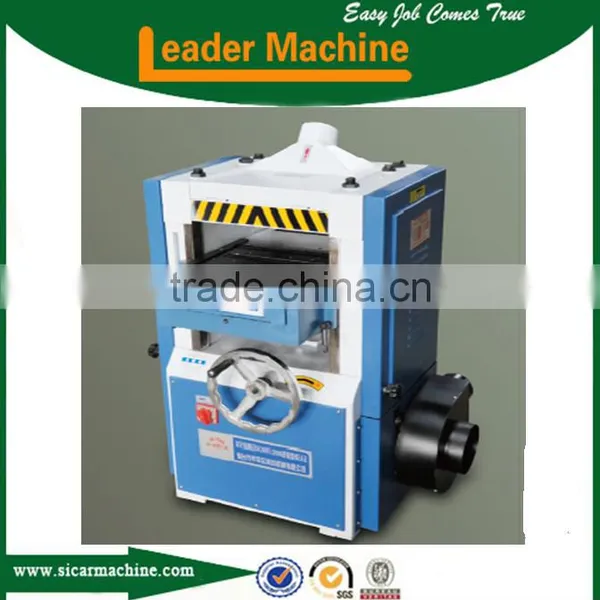

two Side planner thicknesser
Model: MB202C
Model | MB202C | MB203C | MB204C |
Max planing width | 200mm | 300m | 400mm |
Planing thickness | 5-130mm | 5-130mm | 5-130mm |
Spindle speed | 8000r/min | 7800r/min | 7100r/min |
Min planing length | 260mm | 260mm | 260mm |
Feeding speed | 7,10m/min | 7,10m/min | 7,10m/min |
Max planing amount of upper cutter spindle | 3mm | 3mm | 3mm |
Max planing amount of lower cutter spindle | 2mm | 2mm | 2mm |
Motor power | 3kw/380v | 4kw/380v | 5.5kw/380v |
Overall dimensions | 875*600*1000mm | 875*700*1000mm | 875*800*1000mm |
Range of applications:
Processing of sets of furniture,variety of wood materials,laminated wood,wood strips,etc
Advantages:
1.The body is welded with heavy-duty steel and with special heat treatment process,better stability and
lower noise
2.Feeding speed of the two-speed,convenient for users to be adjusted according to different workpiece
quality
3.The work table is with two special support rollers,more smooth edge feeding.
4.Two high speed spindle equipped with SKF high-speed bearings,more smooth rotation.
5.All the parts are made with fine processing of high-precision CNC center ,greatly improve the precision.
6.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard
indicator.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
