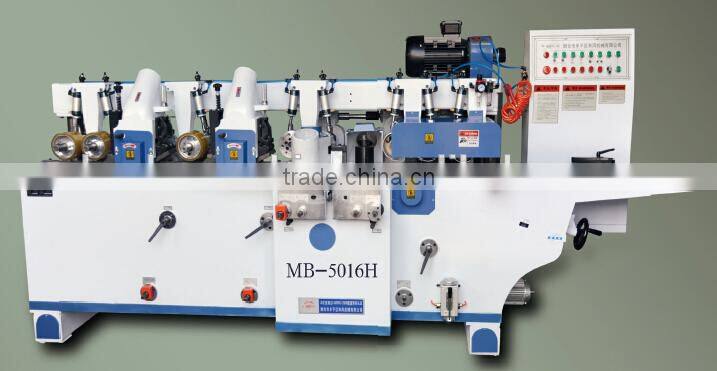

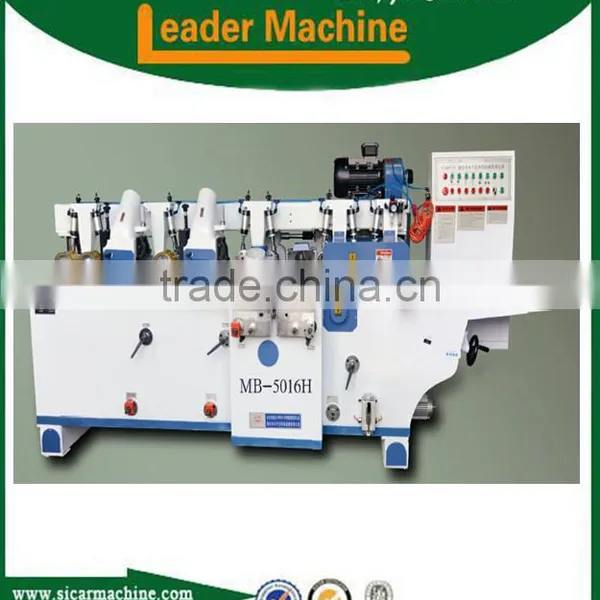

Four Side woodworking thicknesser
Model: MB5016H
Model | MB4012F | MN5016H |
Processing width | 15-130mm | 18-160mm |
Processing thickness | 8-110mm | 8-110mm |
Feeding speed | 5-20m/min | 5-20m/min |
Knife speed | 6000r/min | 6000r/min |
Feeding power | 1.5kw | 2.2kw |
First bottom power | 2.2kw | 3kw |
Left cutter power | 2.2kw(3kw) | 3kw |
Right cutter power | 2.2kw | 3kw |
First top power | 4kw | 5.5kw |
Second top power |
| 4kw |
Beam lifting power | 0.37kw | 0.37kw |
Total power consumption | 12.47kw(13.27kw) | 21.07kw |
Max cutting round | Dia125mm | Dia125mm |
Advantages
1.The body is with heavy-duty steel and with special heat treatment process,better stability.
2.Stable high speed feeding system,20m/min and with speed adjustment 5-20m,greatly improved production
efficiency.
3.All the spindle are with seperate motors,makes the cutting strong.
4.The work table is with special treatment process,better durability and no deformation.
5.Feeding wheel,using cylinder compression type,can be individually adjusted to its pressure,which makes
feeding more smoothly.
6.High speed spindle equipped with SKF high-speed bearings,more smooth cutting.
7.Spindle adjustment is concentrated in the front of the machine,more humane structure.
8.The work table is with active feeders,feeding more smoothly.
9.All the parts are made with fine processing of high-precision CNC center,and this ensures stable and
efficient operation.
10.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard
indicator.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
