Home > Products > Woodworking Planing Thicknesser Machine > MOTO530 European Quality CE Woodworking Thicknesser With Low Price

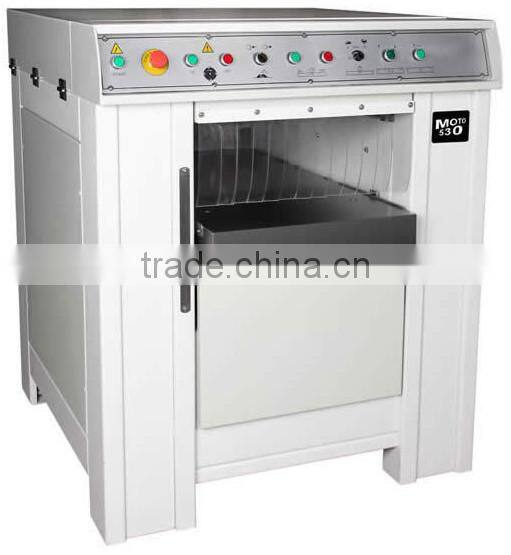

MOTO530 European Quality CE Woodworking Thicknesser With Low Price
- QINGDAO
- T/T
You May Like
-
MOTO630 Italy Technology European Quality CE Woodworking Thicknesser
-
VH-M621C European Quality CE 2015 New Condition Hot Sale Four Side Moulder
-
MOTO530 Woodworking Machine Planer Thicknesser
-
MOTO530 European Quality CE Industrial Planer Thicknesser
-
PT310 CE Certification Combined Wood Machine
-
PT410 Combined Planer and Thicknesser
Product Details
| Condition | New | Type | Thicknesser | |
| Place of Origin | Shandong, China | Brand Name | LEADER | |
| Model Number | MOTO530 | Power(W) | 4500W | |
| Weight | 810kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Woodworking thicknesser with low price
Model: MOTO530
Thicknessing Machine | MOTO 530 | |
Max. working width | mm | 530 |
Max. cutting depth | mm | 8 |
Feed speed | MT/1' | 5-20 |
Max. working height | mm | 300 |
Number of knives | 4-30*530*3 | |
Cutterblock rotation speed | g/1' | 4800 |
3-phase motor power | HP (KW) | 5,5 (4) |
Work table dimensions | mm | 1050 x 532 |
Min. working lenght | mm | 280 |
Power of the motorgear for rise/fall | HP (KW) | 0,75 (0,5) |
Net weight | kg | 810 |
Sound power level at operator's site | db | 82,2 |
Sound pressure level at operator's site | db | 105,8 |
|
|
|
Standard Accessories | MOTO 530 | |
Knife-setting device | * | |
4 pcs planing knives | * | |
Motorized thicknesing table lifting | * | |
|
|
|
optional accessories | MOTO 530 | |
1 Table roller | ||
2 Table rollers | ||
Motor | HP | 7,5 |
Electronic digital-read-out | ||
Control electroinstallations and quota volocita | MT/1' | 5-20 |
Feeding rollers rubber output | ||
Sectioned feeding roller | * |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
