Home > Products > Woodworking Planing Thicknesser Machine > MOTO630 Italy Technology European Quality CE woodworking thicknesser

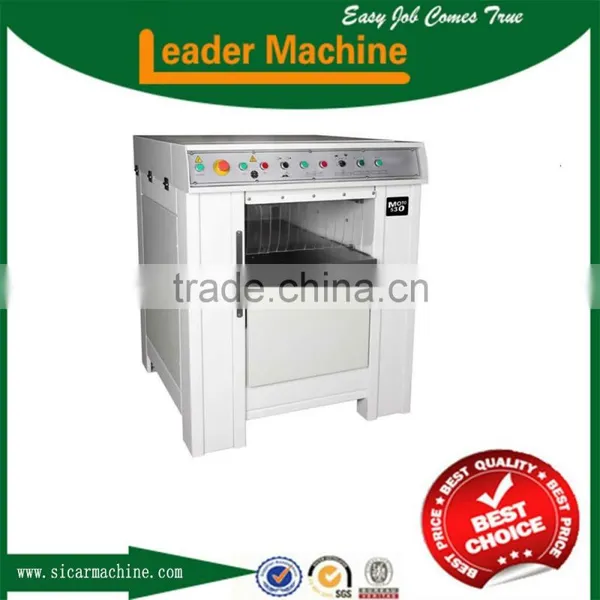

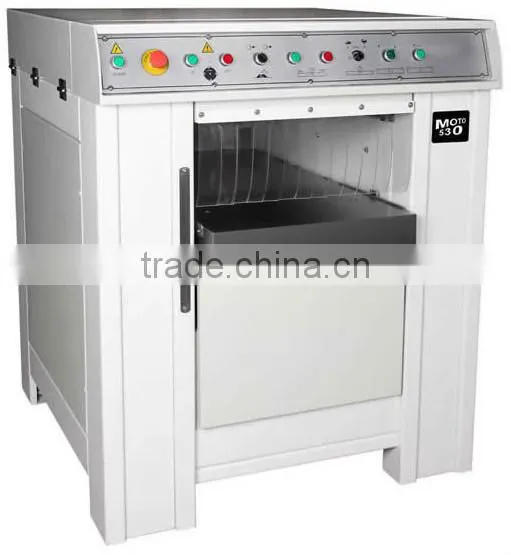

MOTO630 Italy Technology European Quality CE woodworking thicknesser
- 200 Unit / Units per Month
- QINGDAO
- T/T
- 3HP 12'' combination jointer planer machine with mobile base
- Heavy duty cast iron table 8\" x 83\" Helical Cutterhead Jointer with Digital Height Readout mobile base jointer
- 16/20 inches Thickness planer heavy duty cast iron woodworking surface planer industrial woodworking machine
- W0101 Woodworking Bench 12\" Planer Flat Knife Spiral Knife
- LIVTER 12\" Wood Jointer Woodworking Machine Woodworking Surface
- LIVTER W0301 12\" 300Mm Jointer Thicknesser Combination
Product Details
Condition: | New | Type: | Thicknesser | Place of Origin: | Shandong, China |
Brand Name: | LEADER | Model Number: | MOTO630 | Power(W): | 5500W |
Weight: | 870kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Woodworking thicknesser
Model: MOTO630
Thicknessing Machine | MOTO 630 | |
Max. working width | mm | 630 |
Max. cutting depth | mm | 8 |
Feed speed | MT/1' | 5-20 |
Max. working height | mm | 300 |
Number of knives | 4-30*630*3 | |
Cutterblock rotation speed | g/1' | 4800 |
3-phase motor power | HP (KW) | 7,5 (5,5) |
Work table dimensions | mm | 1050 x 632 |
Min. working lenght | mm | 280 |
Power of the motorgear for rise/fall | HP (KW) | 0,75 (0,5) |
Net weight | kg | 870 |
Sound power level at operator's site | db | 82,1 |
Sound pressure level at operator's site | db | 105,1 |
Standard Accessories | MOTO 630 | |
Knife-setting device | * | |
4 pcs planing knives | * | |
Motorized thicknesing table lifting | * | |
optional accessories | MOTO 630 | |
1 Table roller | ||
2 Table rollers | ||
Motor | HP | 10 |

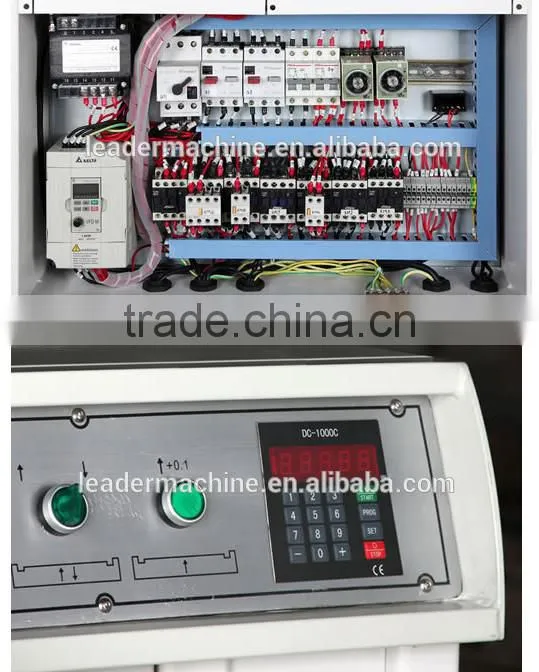

Electronic digital-read-out | ||
Control electroinstallations and quota volocita | MT/1' | 5-20 |
Feeding rollers rubber output | ||
Sectioned feeding roller | * |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
