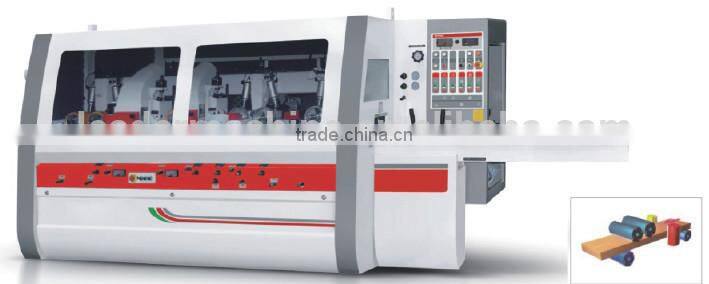

M523A European Quality CE five spindle 4 side planer moulder
- 100 Unit / Units per Month
- QINGDAO
- T/T
-
3HP 12'' combination jointer planer machine with mobile base
-
Heavy duty cast iron table 8\" x 83\" Helical Cutterhead Jointer with Digital Height Readout mobile base jointer
-
16/20 inches Thickness planer heavy duty cast iron woodworking surface planer industrial woodworking machine
-
W0101 Woodworking Bench 12\" Planer Flat Knife Spiral Knife
-
LIVTER 12\" Wood Jointer Woodworking Machine Woodworking Surface
-
LIVTER W0301 12\" 300Mm Jointer Thicknesser Combination
Product Details
| Condition: | New | Type: | Four Side Moulder | Place of Origin: | Shandong, China |
| Brand Name: | LEADER | Model Number: | M523A | Dimension(L*W*H): | 3710*1635*1735mm |
| Weight: | 3100kg | Certification: | CE | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

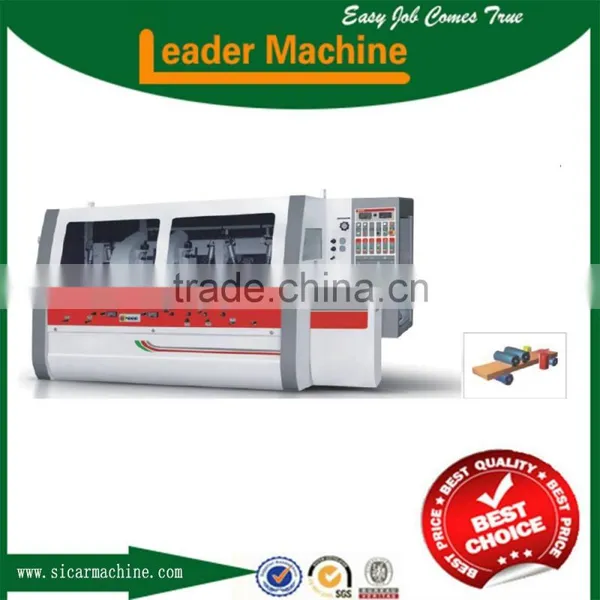

Five spindle 4 side planer moulder
Model: M523A
Machine parameter | Model | M523A |
working width | 25-230mm | |
working thickness | 8-150mm | |
working table length | 1950mm | |
feeding speed | 7-28m/min | |
main shaft diameter | 40mm | |
main shaft revolution | 6000r/min | |
pneumatic source pressure | 0.6Mpa | |
Motor power | 1st lower shaft | 7.5KW/10HP |
1st upper shaft | 11KW/15HP | |
right vertical shaft | 7.5KW/10HP | |
left vertical shaft | 7.5KW/10HP | |
2nd upper shaft | 7.5KW10HP | |
2nd lower shaft | / | |
feeding beam lifting | 0.75KW/1HP | |
feeding motor | 5.5KW/7.5HP | |
total power | 47.25KW/63HP | |
Cutter diameter | right vertical shaft | 125-200mm |
left vertical shaft | 125-200mm | |
1st lower shaft | 125mm | |
1st upper shaft | 125-200mm | |
2nd upper shaft | 125-200mm | |
2nd lower shaft | / | |
Remarks | feeding wheel diameter | 140mm |
Physical dimension(L*W*H) | 3710*1635*1735mm | |
dust outlet diameter | 140mm | |
net weight | 3100kg | |
Wood case packing size | 3700*1950*2100mm |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
