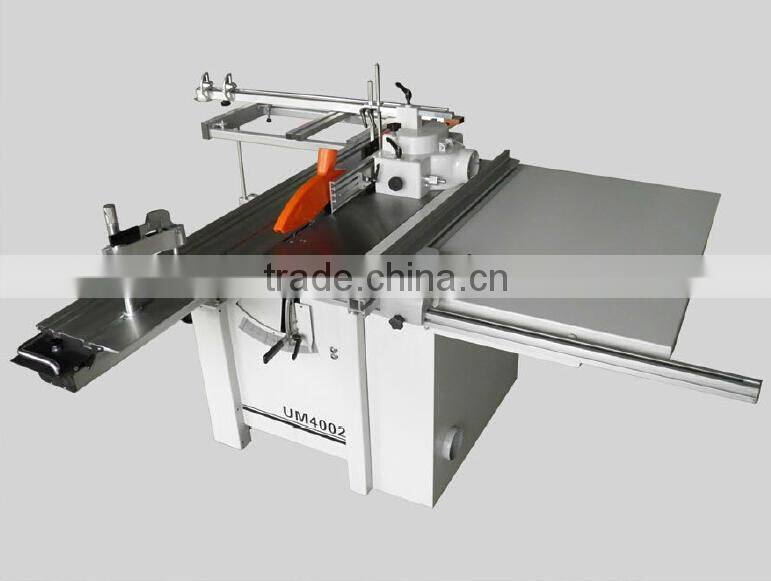

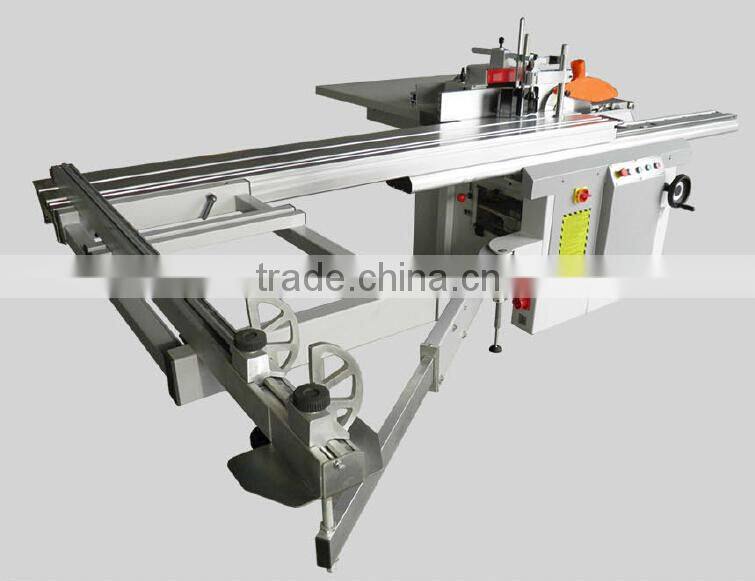

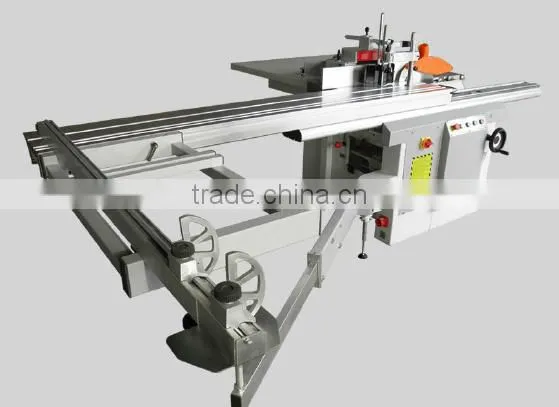

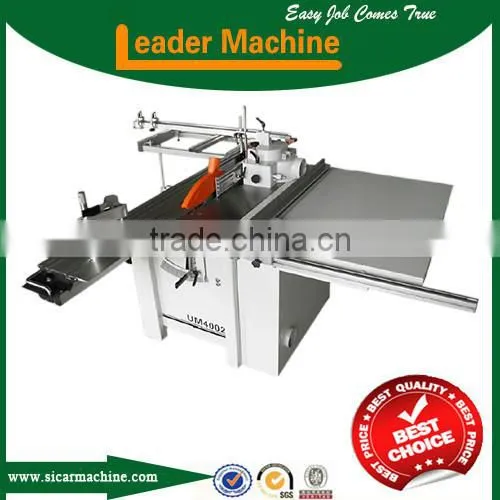

wood combination machine
Model:UM4002
2 works combines machine
1.circular saw
2.shaper

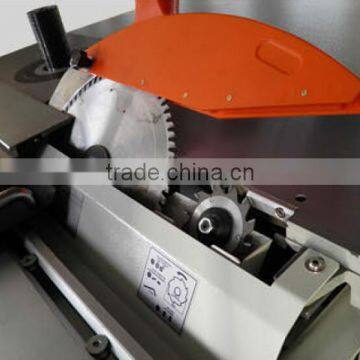

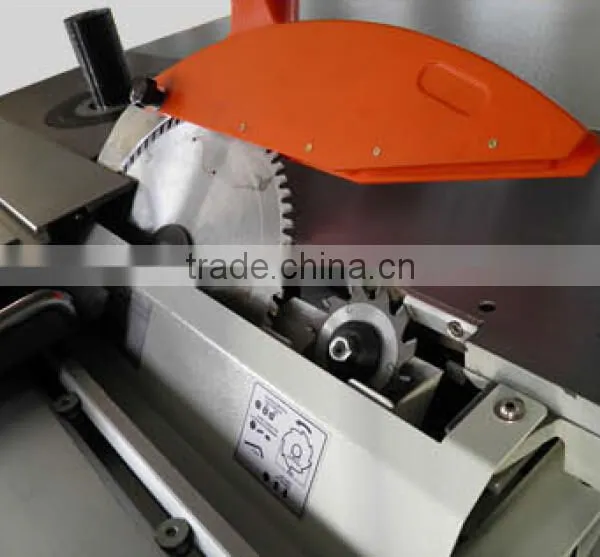

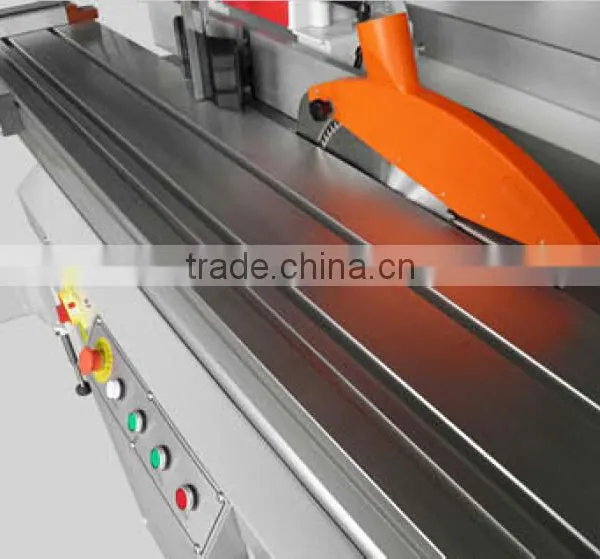

Circular saw | UM4002 |
Working table | 326*1112mm |
Shaft rotation speed | 4500rpm |
Blade diameter | 300mm |
Blade bore diameter | 30mm |
Cutting height 90° | 100mm |
Max. distance between blade and fence | 730mm |

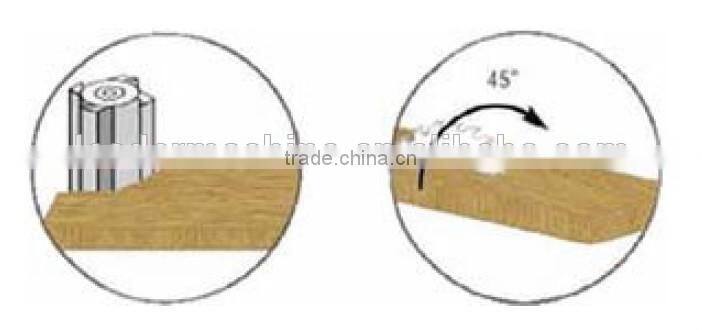

Blade inclination | 45° |
Max. cutting height 45° | 75mm |
Shaft rotation speed engraver | 7000rpm |
Engraver blade diameter | 90mm |
Engraver blade bore diameter | 22mm |

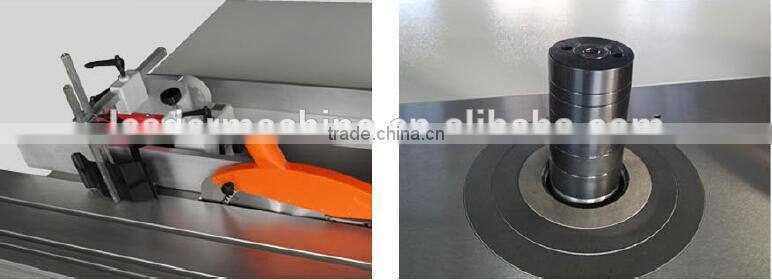

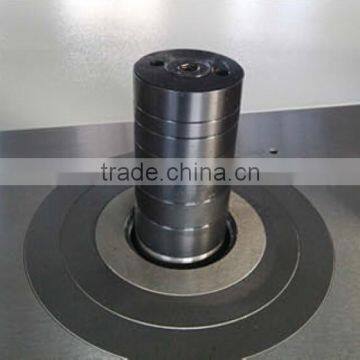

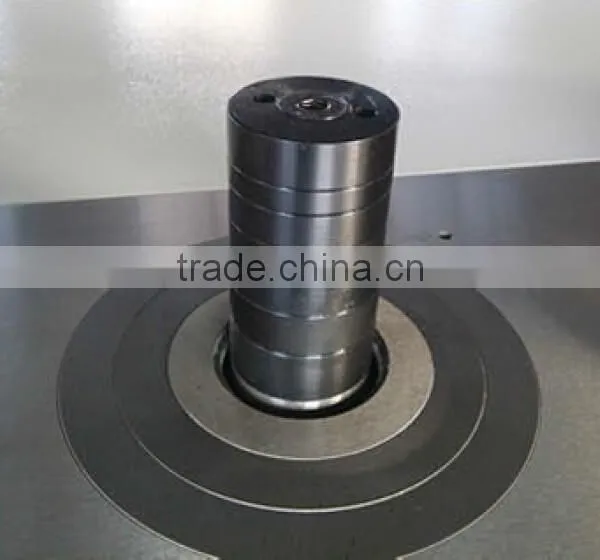

Shaper | UM4002 |
Working table | 326*1112mm |
Shaft rotation speed | 7000/4400/3100/2000rpm |
Standard shaft diameter | 30mm |
Spindle length | 105mm |
Shaft vertical stroke | 115mm |
Max. tool diameter | 180mm |
Max. tenoning depth | 65mm |
Tenoning carriage | UM4002 |
Carriage dimensions | 1800*315mm |
Carriage stroke | 2200mm |
Standard accessories | UM4002 |
N°1 clamp lever | * |

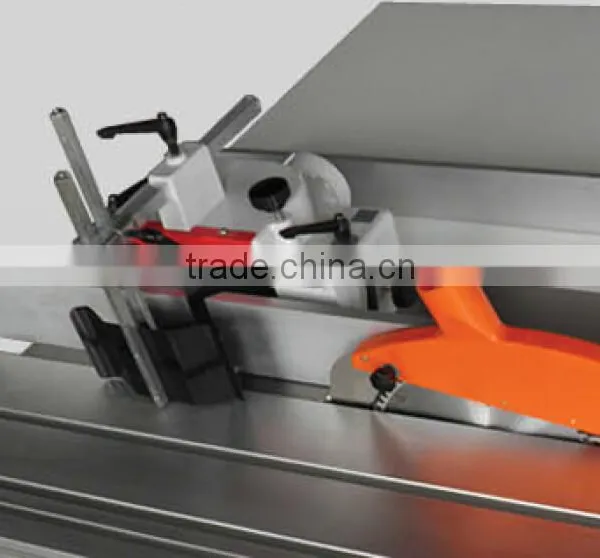

Sharper fence | * |
Service wrenches | * |
Table extensions with swinging arms | 800*600mm |
Planner guide | * |
Saw guide | * |
1-phase motor power | 4HP(3kw) |
Weight | 385kg |
Optional accessories | UM4002 |
Single-phase motor*2 | 4HP(3kw) |
3-phase motor*2 | 3HP(2.2kw) |
Extraction unit | 0.5HP(0.36kw) |
Set of wheels with feeding steering bar | * |
Contouring fence | * |
Regulating to copy | * |
Carriage stroke | 2600mm |
Tenoning with protection shelf |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
