400B Multi Wood Machine Combined Woodworking Machinery

400B Multi Wood Machine Combined Woodworking Machinery thumbnail-1
400B Multi Wood Machine Combined Woodworking Machinery photo-1
US$ 1 - 1 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Contact Supplier Request Quote Chat Now
Longkou Leader Imp& Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name LEADER
Model Number 400B
Voltage 1200
Power(W) 4.0W
Weight 370KG
Dimension(L*W*H) 2400*1800*875mm
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

 Company profile


We are particularly specific in woodworking machinery ,we have been more than15 years for exporing experience .Our products has been exported to many countries abroad.All customers are very satisfied with us .You are welcome to come to visit our company anytime ,We hope to set up to relationships with you to our mutrul advantage for a long time.

 product Ifo

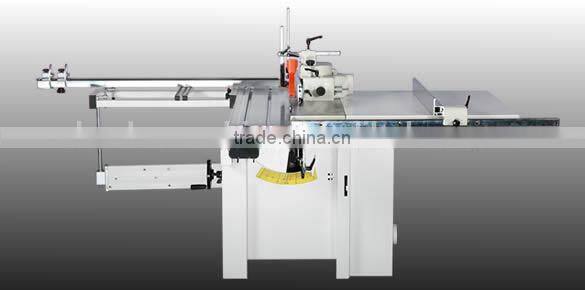

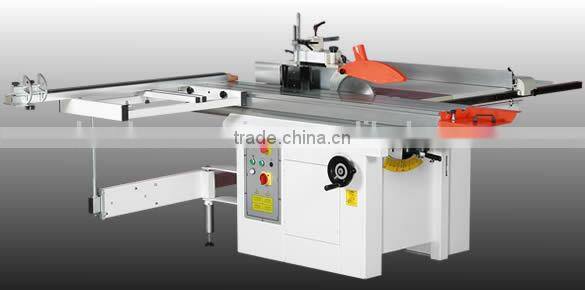

400B   Combined woodworking machinery

TWO fuctions in one: Saw+ Spindle moulder

From Italy original designed manufacture

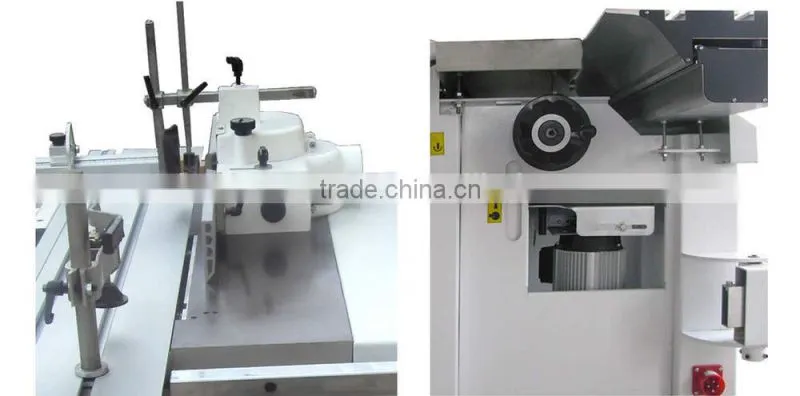

400B Multi wood machine Combined woodworking machinery400B Multi wood machine Combined woodworking machinery400B Multi wood machine Combined woodworking machinery

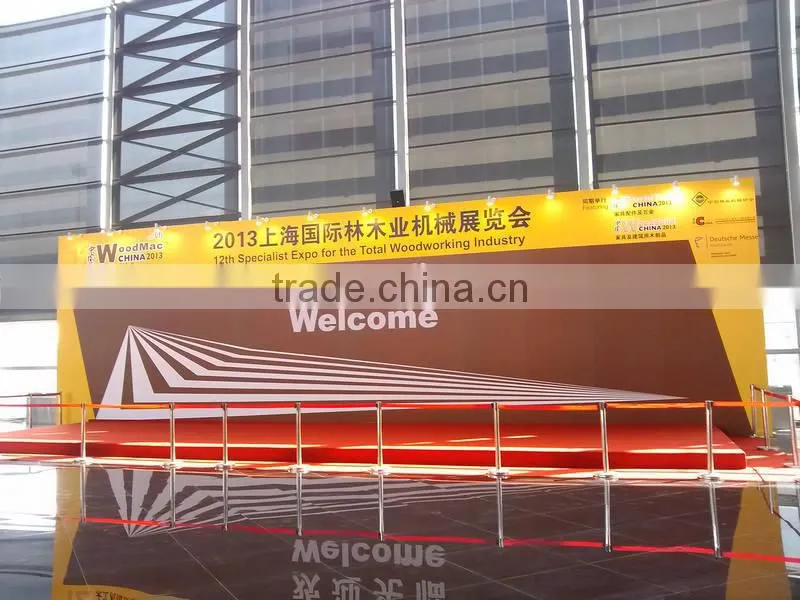

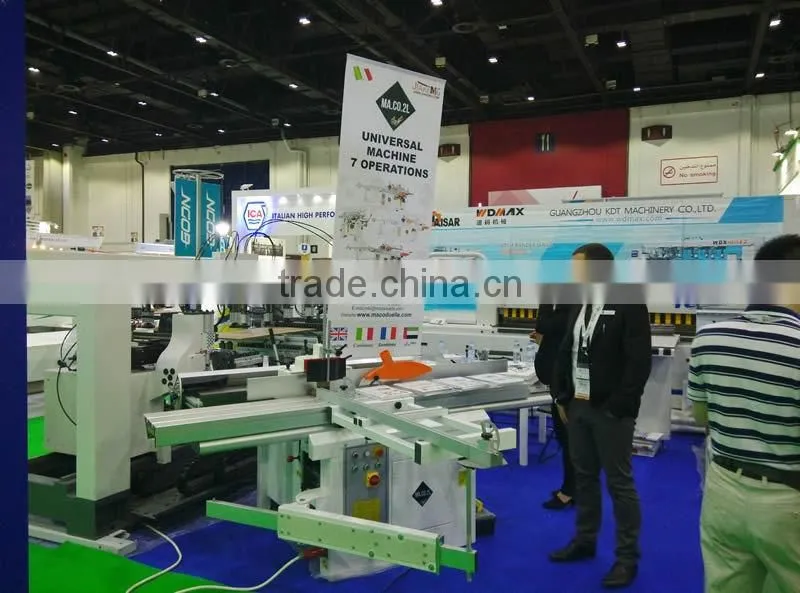

Exhibition photo





400B Multi wood machine Combined woodworking machinery400B Multi wood machine Combined woodworking machinery



product parameter

Combined woodworking machinery



Circular saw



400B

Working table

mm

326x1112

Shaft rotation speed

r.p.m.

4500

Blade diameter

mm

300

Blade bora diameter

mm

30

Cutting height 90°

mm

105

Max. distance between blade and fence

mm

730

Blade inclination

0°

45°

Max cutting height  45°

mm

75

Shaft rotation speed engraver

r.p.m.

7000

Engraver blade diameter

mm

90

Engraver blade bora diameter

mm

22


Shaper



 400B

Working tables

mm

 326x1112

Shaft rotation speeds

r.p.m.

 7000/4400/3100/2000

Standard shaft diameter

mm

30

Spindle lenght

mm

105

Shaft vertical stroke

mm

115

Max. tool diameter

mm

180

Max. tenoning depth

mm

65







Tenoning carriage



 400B

Carriage dimensions

mm

 1800x315

Carriage stroke

mm

2200







Standard accessories



 400B

N°2 clamp lever



*

Sharper fence



*

Service wrenches



*

Table extensions with swinging arms

mm

860x500

Saw guide



3-phase motor power

HP - KW

3,0 - 2,2

Weight

kg

295







Optiona accessories



 400B

Single-phase motor

HP - KW

2,7 - 2,0

Increasing 3-phase motor

HP - KW

4,0 - 3,0

Extraction

HP - KW

0,5 - 0,36

Contouring fence



Regulating to copy



Carriage stroke



2200/2200

Carriage stroke



2600/2600

Pianetto proluga output

mm

326x500

Tenoning with protection shelf







Circular saw



400B

Working table

mm

326x1112

Shaft rotation speed

r.p.m.

4500

Blade diameter

mm

300

Blade bora diameter

mm

30

Cutting height 90°

mm

105

Max. distance between blade and fence

mm

730

Blade inclination

0°

45°

Max cutting height  45°

mm

75

Shaft rotation speed engraver

r.p.m.

7000

Engraver blade diameter

mm

90

Engraver blade bora diameter

mm

22


Shaper



 400B

Working tables

mm

 326x1112

Shaft rotation speeds

r.p.m.

 7000/4400/3100/2000

Standard shaft diameter

mm

30

Spindle lenght

mm

105

Shaft vertical stroke

mm

115

Max. tool diameter

mm

180

Max. tenoning depth

mm

65







Tenoning carriage



 400B

Carriage dimensions

mm

 1800x315

Carriage stroke

mm

2200







Standard accessories



 400B

N°2 clamp lever



*

Sharper fence



*

Service wrenches



*

Table extensions with swinging arms

mm

860x500

Saw guide



3-phase motor power

HP - KW

3,0 - 2,2

Weight

kg

295







Optiona accessories



 400B

Single-phase motor

HP - KW

2,7 - 2,0

Increasing 3-phase motor

HP - KW

4,0 - 3,0

Extraction

HP - KW

0,5 - 0,36

Contouring fence



Regulating to copy



Carriage stroke



2200/2200

Carriage stroke



2600/2600

Pianetto proluga output

mm

326x500

Tenoning with protection shelf















Services:



 Once there is something wrong with machinery ,we are guaranteed to come to see whtin 24  hours in time in Eropean Country
