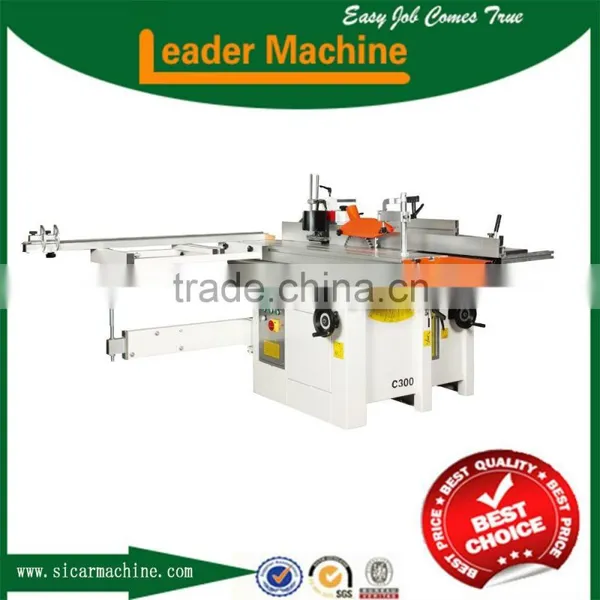

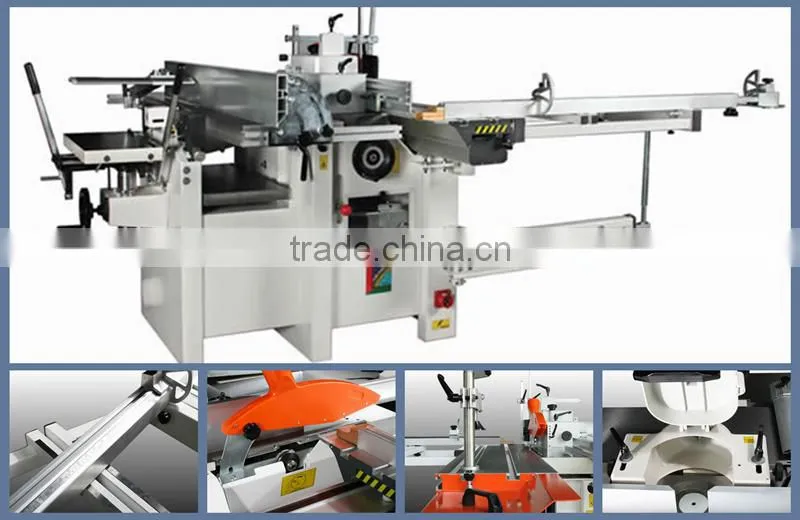

C300 alibaba china used woodworking machinery ireland
- 110 Unit / Units per Month
- QINGDAO
- T/T
-
Guangzhou Industrial-Grade High Quality Circular Chain Saws, Electric Lithium Cutting Machine, Welding Machines
-
Log square saw log push table saw machine band saw infrared edge saw double end head saw
-
Sawdust Dryer Machine
-
PCD Saw Blades for Woodworking
-
wood log cutting machine industrial table saw
-
Woodworking wood cutting machine sliding table panel saw wood saw machines
Product Details
| Condition: | New | Use: | Woodworking | Style: | Horizontal |
| Place of Origin: | Shandong, China | Brand Name: | LEADER | Model Number: | C300 |

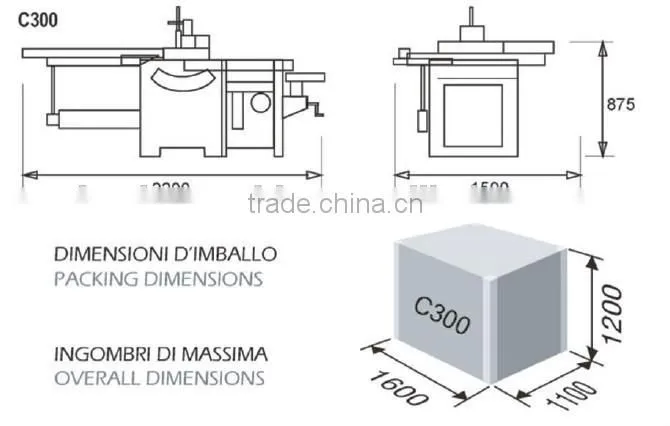

| Usage: | Woodworking | Voltage: | 380V | Dimension(L*W*H): | 2200*1590*875 |
| Weight: | 560kg | Certification: | CE | Warranty: | 2 years |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Alibaba china used woodworking machinery ireland
Model:C300
Planer | C300 |
Working table | 300*1500mm |
Cutterblock diameter | 70mm |
Cutterblock rotation speed | 5700rpm |
No. Of knives | 3 |
Knife dimensions | 300*20*3mm |
Max table adjustment | 4mm |
Thicknesser | C300 |
Working table | 300*660mm |
Feed speed | 7m/s |
Max working height | 220mm |
Min working height | 4mm |
Cutterblock rotation speed | 5700rpm |
Max cutting depth | 4mm |
Circular saw | C300 |
Working table | 220*1000mm |
Shaft rotation speed | 4500rpm |
Blade diameter | 250mm |
Blade bore diameter | 30mm |
Cutting height 90° | 80mm |
Max. distance between blade and fence | 500mm |
Blade inclination | 45° |
Max. cutting height 45° | 50mm |
Shaft rotation speed engraver | 7000rpm |
Engraver blade diameter | 90mm |
Engraver blade bore diameter | 22mm |
Mortiser | C300 |
Working table | 250*500mm |
Longitudinal stroke | 205mm |
Trasversal stroke | 95mm |
Vertical stroke | 90mm |
Churck | 16mm |
Churck rotation speed | 5700rpm |
Shaper | C300 |
Working table | 220*1000mm |
Shaft rotation speed | 2000/3100/4400/7000rpm |
Standard shaft diameter | 30mm |
Spindle length | 105mm |
Shaft vertical stroke | 115mm |
Max. tool diameter | 160mm |
Max. tenoning depth | 55mm |
Tenoning carriage | C300 |
Carriage dimensions | 1250*315mm |
Carriage stroke | 1250/1600mm |
Standard accessories | C300 |
N°2 clamp lever | * |
Sharper fence | * |
Service wrenches | * |
Mortiser chuck | * |
Table extensions with swinging arms | 800*600mm |
Guards on mortiser chuck | * |
3 pcs. planning knives | * |
Planner guide | * |
Saw guide | * |
Bridge safety hood on planner | * |
3-phase motor power | 3.0HP-2.2KW |
Weight | 530kg |
Optional accessories | C300 |
Single-phase motor*3 | 2.7HP-2.0KW |
3-phase motor*3 | 4.0HP-3.0KW |
Extraction unit | 0.5HP-0.36KW |
Set of wheels with feeding steering bar |
|
Contouring fence |
|
Regulating to copy |
|
Wescott (Diameter) | 16mm |
Carriage stroke | 1600/1600mm |
Carriage stroke | 1800/1800mm |
Carriage stroke | 2200/2200mm |
Tenoning with protection shelf | 326*500 |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
