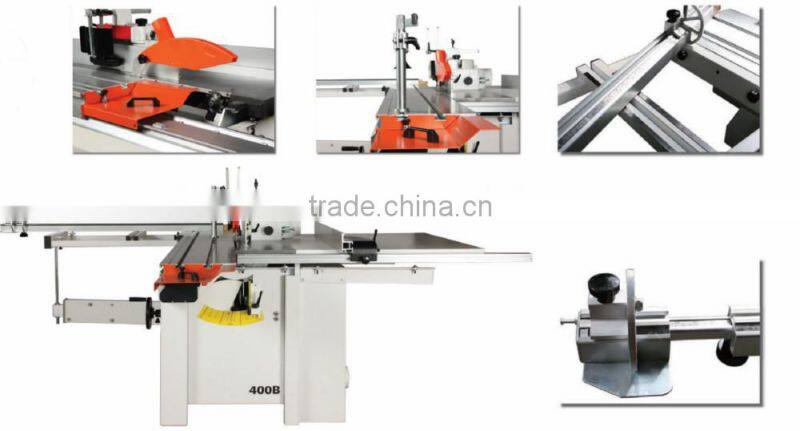

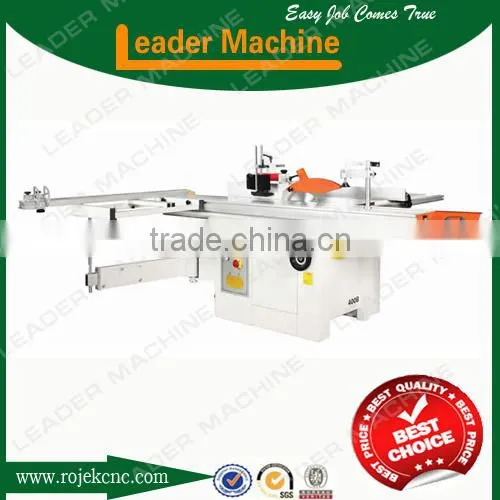

400B CE Certification Italy technical combination woodworking machine
USD $1 - $1
/ Unit
5 Units(Min.Order)
- 20 Unit / Units per Month
- QINGDAO
- T/T
You May Like
-
C400 multifunction universal combine woodworking machine
-
Italian technology Robland CE Certification combine woodworking machine
-
UM300 CE Certification combine universal wood machine
-
UM400 CE Certification wood combined universal machine
-
UM4002 CE wood combination machine
-
UM4003 CE multi woodworking machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | LEADER | Model Number | 400B | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

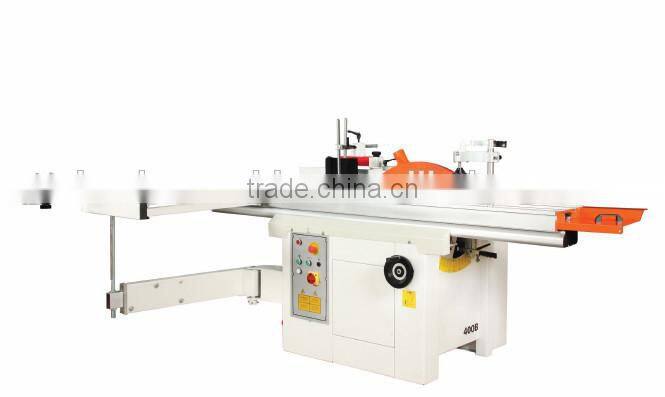

combination woodworking machine
Model:400B
Product Description

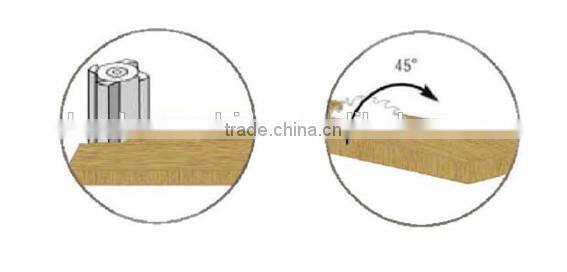

2 works combines machine
1.circular saw
2.shaper
| Circular saw | 400B |
| working table | 326*1112mm |
| shaft rotation speed | 4500rpm |
| blade diameter | 300mm |
| blade bore diameter | 30mm |
| cutting height 90° | 100mm |
| Max. distance between blade and fence | 1150mm |
| blade inclinatino | 45° |
| Max. cutting height 45° | 75mm |
| shaft rotation speed engraver | 7000rpm |
| engraver blade diameter | 90mm |
| engraver blade bore diameter | 22mm |
| Shaper | 400B |
| working table | 326*1112mm |
| shaft rotation speed | 7000/4400/3100/2000rpm |
| standard shaft diameter | 30mm |
| spindle length | 105mm |
| shaft vertical stroke | 115mm |
| Max. tool diameter | 180mm |
| Max. tenoning depth | 65mm |
| Tenoning carriage | 400B |
| carriage dimensions | 1800*315mm |
| carriage stroke | 2200mm |
| Standard accessories | 400B |
| N°1 clamp lever | * |
| shaper fence | * |
| service wrenches | * |
| table extensions with swinging arms | 800*600mm |
| saw guide | |
| 3-phase motor power | 3HP(2.2kw) |
| weight | 345kg |
| Optional accessories | 400B |
| single-phase motor*2 | 3HP(2.2kw) |
| increasing 3-phase motor*2 | 4HP(3kw) |
| increasing 3-phase motor*2 | 5.5HP(4kw) |
| extraction | 0.5HP(0.36kw) |
| contouring fence | |
| regulating to copy | |
| carriage stroke | 2200/2200 |
| carriage stroke | 2600/2600 |
| pianetto proluga output | 326*500mm |
| tenoning with protection shelf |
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
