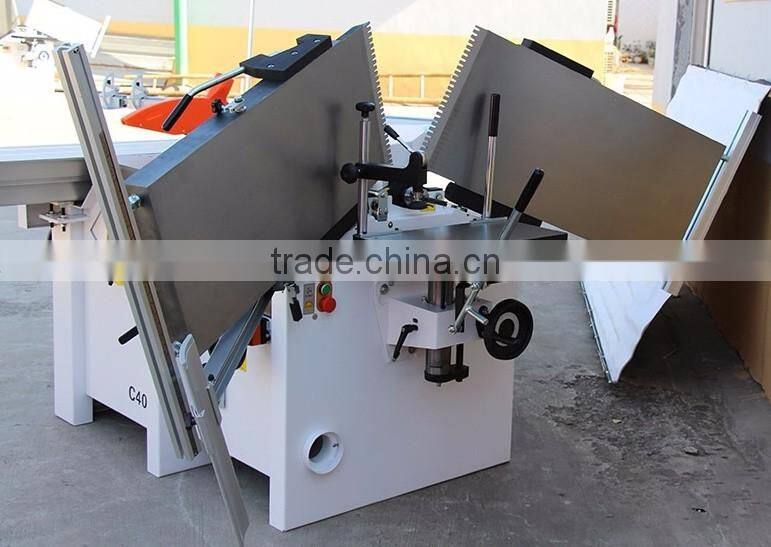

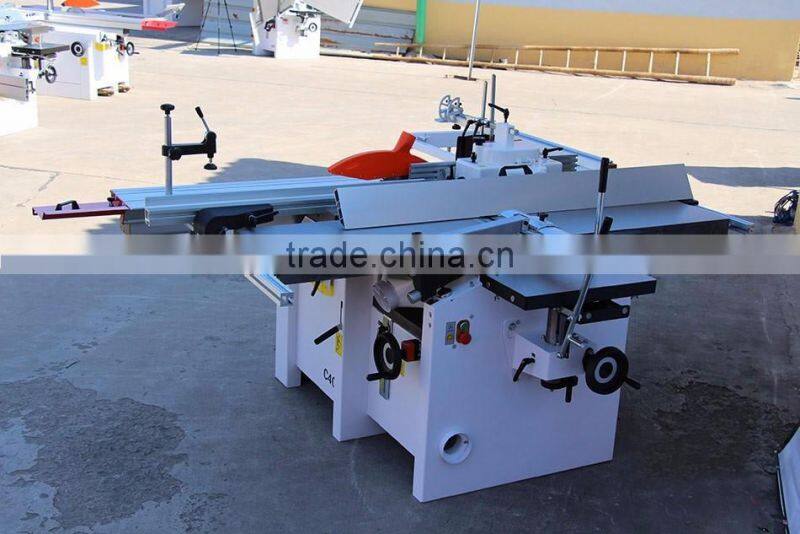

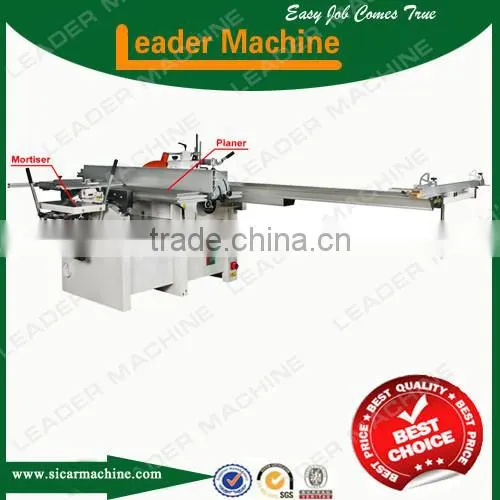

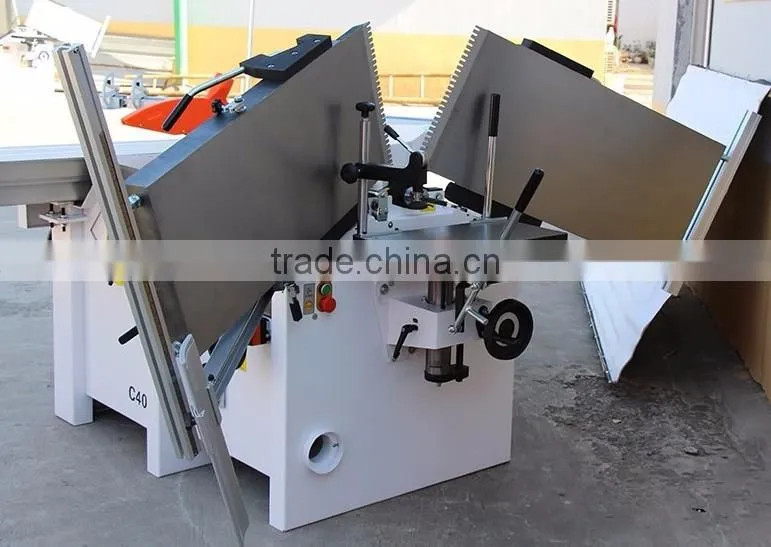

C400 Multifunction Universal Combine Woodworking Machine
US$ 1 - 1
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Italian Technology Robland CE Certification Combine Woodworking MachineUS$ 1 - 6,000MOQ: 1 Unit -
UM300 CE Certification Combine Universal Wood MachineUS$ 1 - 1MOQ: 1 Unit
-
UM400 CE Certification Wood Combined Universal MachineUS$ 1 - 1MOQ: 5 Units
-
UM4002 CE Wood Combination MachineUS$ 1 - 1MOQ: 5 Units
-
UM4003 CE Multi Woodworking MachineUS$ 1 - 1MOQ: 5 Units
Condition
New
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
C400
After-sales Service Provided
Overseas service center available
woodworking machine planer thicknesser
Model:C400
Product Description
| Planner | C400 |
| working table | 400*1800mm |
| cutterblock diameter | 70mm |
| No. of knives | 3 |
| cutterblock rotation speed | 5700rpm |
| knives dimensions | 400*20*3mm |
| Max table adjustment | 4mm |
| Thicknesser | C400 |
| working table | 400*760mm |
| feed speed | 7m/s |
| Max working height | 220mm |
| Min working height | 4mm |
| cutterblock rotation speed | 5700rpm |
| Max cutting depth | 4mm |
| Circular saw | C400 |
| working table | 326*1112mm |
| shaft rotation speed | 4500rpm |
| blade diameter | 300mm |
| blade bore diameter | 30mm |
| cutting height 90° | 100mm |
| Max. distance between blade and fence | 730mm |
| blade inclinatino | 45° |
| Max. cutting height 45° | 75mm |
| shaft rotation speed engraver | 7000rpm |
| engraver blade diameter | 90mm |
| engraver blade bore diameter | 22mm |
| Mortiser | C400 |
| working table | 250*500mm |
| longitudinal stroke | 205mm |
| trasversal stroke | 95mm |
| vertical stroke | 90mm |
| churck | 16mm |
| churck rotation speed | 5700rpm |

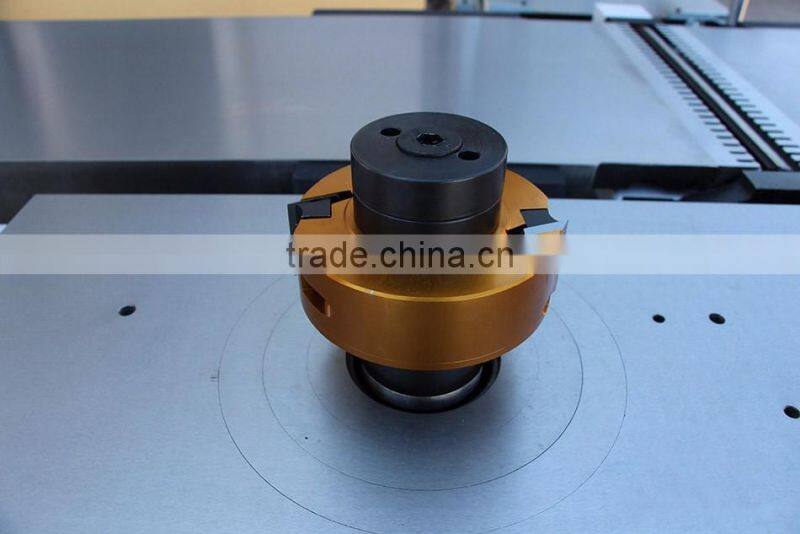

| Shaper | C400 |
| working table | 326*1112mm |
| shaft rotation speed | 7000/4400/3100/2000rpm |
| standard shaft diameter | 30mm |
| spindle length | 105mm |
| shaft vertical stroke | 115mm |
| Max. tool diameter | 180mm |
| Max. tenoning depth | 65mm |
| Tenoning carriage | C400 |
| carriage dimensions | 1800*315mm |
| carriage stroke | 2200mm |
| Standard accessories | C400 |
| N°1 clamp lever | * |
| shaper fence | * |
| service wrenches | * |
| mortiser chuck | * |
| table extensions with swinging arms | 800*600mm |
| guards on mortiser chuck | |
| 3 pcs planning knives | |
| planner guide | |
| saw guide | |
| bridge safety hood on planner | |
| 3-phase motor power | 3HP(2.2kw) |
| weight | 645kg |
| Optional accessories | C400 |
| single-phase motor*3 | 3HP(2.2kw) |
| increasing 3-phase motor*2 | 4HP(3kw) |
| increasing 3-phase motor*2 | 5.5HP(4kw) |
| extraction | 0.5HP(0.36kw) |
| set of wheels with feeding steering bar | |
| contouring fence | |
| regulating to copy | |
| carriage stroke | 2200/2200 |
| carriage stroke | 2600/2600 |
| pianetto proluga output | 326*500mm |
| tenoning with protection shelf |
7work combines machine
1.cicular saw
2.sharpner
3.surface planner
4.thickness machine
5.spindle moulder mortise
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
