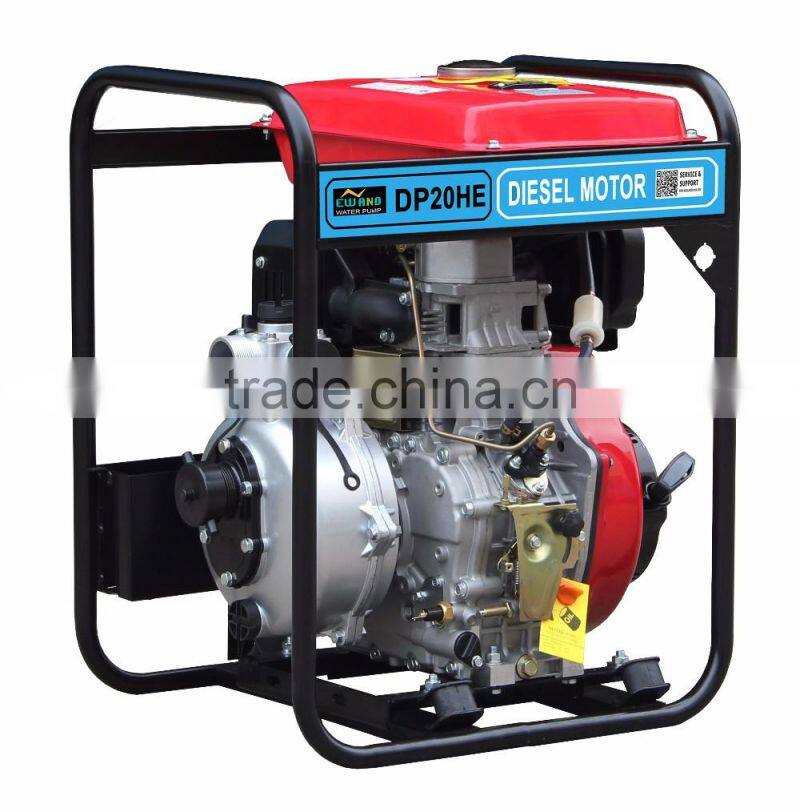

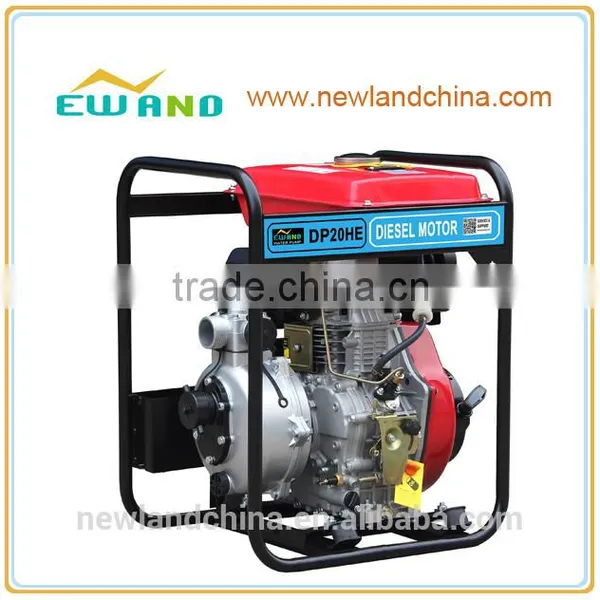

2inch(50mm) Diesel High Pressure Water Pump,186F Diesel Engine With Output 9hp/6.6KW

2inch(50mm) Diesel High Pressure Water Pump,186F Diesel Engine With Output 9hp/6.6KW thumbnail-1
2inch(50mm) Diesel High Pressure Water Pump,186F Diesel Engine With Output 9hp/6.6KW photo-1
US$ 230 - 270 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Newland
Model Number:
DP20H(E)
Contact Supplier Request Quote Chat Now
Taizhou Newland Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Newland
Model Number DP20H(E)
Theory Reciprocating Pump
Structure Piston Pump
Usage Water
Power Pneumatic
Standard or Nonstandard Standard
Fuel Other, Diesel, diesel
Pressure High Pressure
Application Other, clean water pump

2inch(50mm)  Diesel high pressure water pump,186F diesel engine with output 9hp/6.6kw





Product Description

1. Green and Environmental Protection.

2.It's an efficiently economy energy water pump.

3. Low malfunction and reliable &stable performance.

4. Easily maintained.

5. Suitable for garden watering, hotels, villas, high-level water supply and irrigation of farmland, eliminate the water factory, mine, ships, etc.

6. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners, but also friends and family.



Product parameters



Model DP20H
WATER PUMP Suction,discharge port diameter mm(in) 50(2 “)
HP 9
Cont.head(m) 55
Self-priming time (s/4m) 30
Max suction head (m) 8
Cont.capacity(m3/hr) 23
ENGINE Engine model HR186F
Speed(rpm) 3000/3600
Type Single-cylinder,vertical,4-stroke air-cooled diesel engine
Displacement(cc) 406
Bore×stroke (mm) 86×70
Starting system Recoil or Electric
Fuel tank capacity(L) 5.5
STANDARD FEATURES Connecter of infall,Connecter of outfall yes
Filter yes
Seal ring yes
Hoop yes
OPTIONAL FEATURES Luxury big fuel tank 13.5
Electric Start  optional
DIMENSIONS Dimension(L×W×H)(mm) 610×500×710
Dry weight(kg) 69
2inch(50mm) Diesel high pressure water pump,186F diesel engine with output 9hp/6.6KW
Packaging & Shipping

 2inch(50mm) Diesel high pressure water pump,186F diesel engine with output 9hp/6.6KW

2inch(50mm) Diesel high pressure water pump,186F diesel engine with output 9hp/6.6KW





Company Information

About Us

Taizhou Newland Machinery Co., Ltd here, exports gasoline generator, diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years's export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become best choice for all customers.

2inch(50mm) Diesel high pressure water pump,186F diesel engine with output 9hp/6.6KW

2inch(50mm) Diesel high pressure water pump,186F diesel engine with output 9hp/6.6KW2inch(50mm) Diesel high pressure water pump,186F diesel engine with output 9hp/6.6KW

FAQ

1.Q:Are you a factory or trading company?

A:  We are a trading company based on a factory with more than 10 years

processing experience.

2.Q:Where is your factory located?

A: Our factory is in Taizhou city, Zhejiang Province, China.30mins from

Luqiao Airport by car, 2hours from Ningbo Airport by car, 4hours from

Shanghai Airport by car.



3.Q:What is the material of your products?

A: The crank case is made of high quality aluminum with high strength.



4.Q:How about quality control in your factory?

A: Newland people are always paying great attentions to quality controlling from the
beginning to the end.



5.Q:How about guarantee?

A:  It's within 1year after goods is discharged in the destination.





6.Q:Can we use our own brand on it?



A: Of course,yes.Our factory has more than 10 years processing experience.



7.Q:How about your MOQ?



A: 50sets.
