Help Center1.5inch(40mm)/ 178F Diesel Water Pump,high Pressure Water Pump DP15H
Related Products
-
1.5inch/ 6.5HP Gasoline High Pressure Water Pump for Firefighting,double Impellor WP15HUS$ 79 - 115MOQ: 30 Sets -
2inch Gasoline High Pressure Water Pump With Hongda Type Engine and Double Impellors WP20US$ 50 - 70MOQ: 50 Sets
-
3inch Sewage Water Pump,4-stroke 25 Angle Single-cylinder With Air-cooled EngineUS$ 98 - 130MOQ: 50 Sets
-
Hongda 6.5hp Engine High Pressure Water Pump for Fireman,2inch(50mm) Water Pump With Single ImpellorUS$ 87 - 120MOQ: 30 Sets
-
1.5inch(40mm)/ 6.5HP Gasoline High Pressure Water Pump for Firefighting,single Impellor WP15HUS$ 89 - 110MOQ: 50 Sets

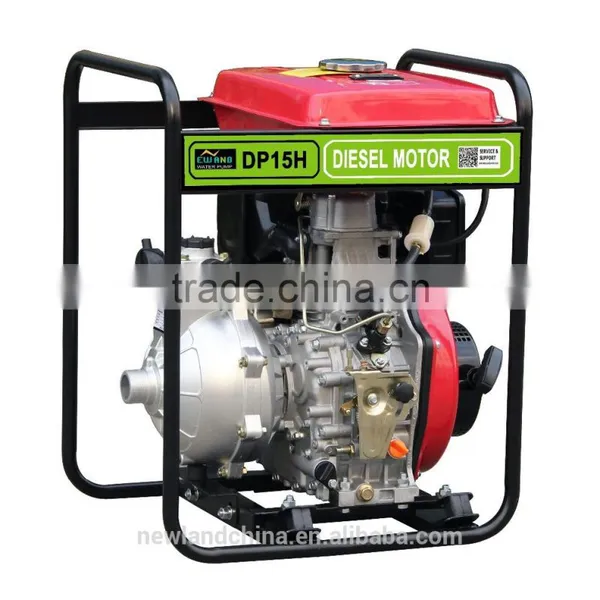

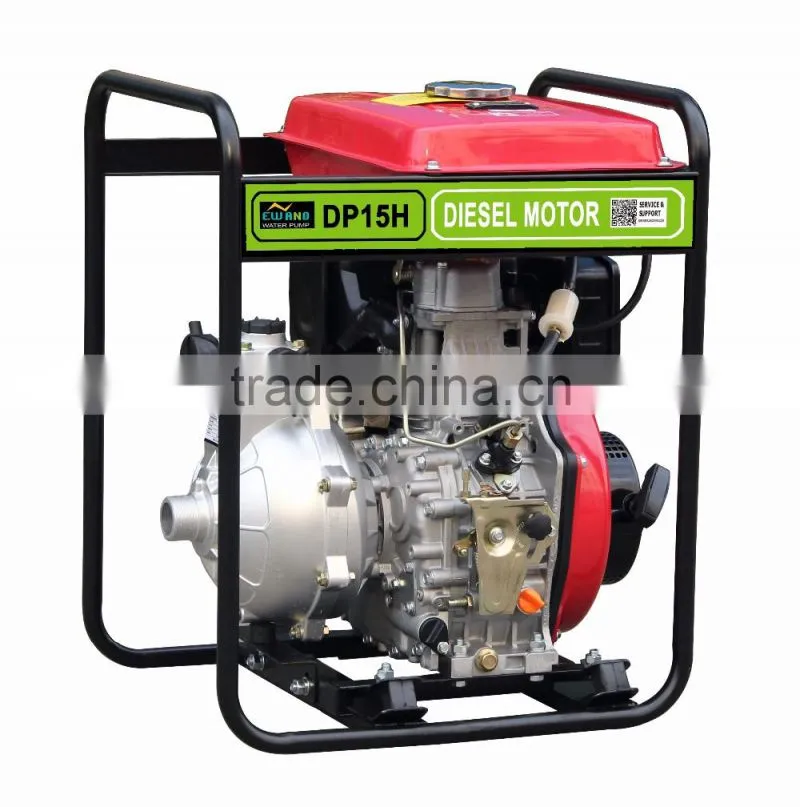

High Pressure water pump for firefighting,40mm(1.5inch) 178F/6HP diesel Engine,high lifting
1. Green and Environmental Protection.
2.It's an efficiently economy energy water pump.
3. Low malfunction and reliable &stable performance.
4. Easily maintained.
5. Suitable for garden watering, hotels, villas, high-level water supply and irrigation of farmland, eliminate the water factory, mine, ships, etc.
6. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners, but also friends and family.
Product parameters
| Model | DP15H | DP20H | DP30H | |
| WATER PUMP |
Suction,discharge port diametermm(in) |
40(1.5 “) | 50(2 “) | 80(3 “) |
| HP | 6 | 9 | 12 | |
| Cont.head(m) | 60 | 55 | 75 | |
| Self-priming time (s/4m) | 30 | 30 | 30 | |
| Max suction head (m) | 8 | |||
| Cont.capacity(m3/hr) | 18 | 23 | 47 | |
| ENGINE | Engine model | HR178F | HR186F | HR188FA |
| Speed(rpm) | 3000/3600 | |||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |||
| Displacement(cc) | 296 | 406 | 456 | |
| Bore×stroke (mm) | 78×62 | 86×70 | 88×75 | |
| Starting system | Recoil or Electric | |||
| Fuel tank capacity(L) | 3.5 | 5.5 | 5.5 | |
|
STANDARD FEATURES |
Connecter of infall, Connecter of outfall |
yes | yes | yes |
| Filter | yes | yes | yes | |
| Seal ring | yes | yes | yes | |
| Hoop | yes | yes | yes | |
|
OPTIONAL FEATURES |
Luxury big fuel tank | 13.5 | 13.5 | 13.5 |
| Electric Start | optional | optional | optional | |
| DIMENSIONS | Dimension(L×W×H)(mm) | 565×465×690 | 610×500×710 | 610×500×710 |
| Dry weight(kg) | 42 | 69 | 75 | |
About Us
Taizhou Newland Machinery Co., Ltd here, exports gasoline generator, diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years's export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become best choice for all customers.
1.Q:Are you a factory or trading company?
A: We are a trading company based on a factory with more than 10 years
processing experience.
2.Q:Where is your factory located?
A: Our factory is in Taizhou city, Zhejiang Province, China.30mins from
Luqiao Airport by car, 2hours from Ningbo Airport by car, 4hours from
Shanghai Airport by car.
3.Q:What is the material of your products?
A: The crank case is made of high quality aluminum with high strength.
4.Q:How about quality control in your factory?
A: Newland people are always paying great attentions to quality controlling from the
beginning to the end.
5.Q:How about guarantee?
A: It's within 1year after goods is discharged in the destination.
6.Q:Can we use our own brand on it?
A: Of course,yes.Our factory has more than 10 years processing experience.
7.Q:How about your MOQ?
A: 50sets.
Taizhou Newland Machinery Co.,Ltd
Jodie Bao
Tel:0086-15757557467
Whats App:0086-15757557467
Skype:newlandmachinery
Address:Shifu Road Jiaojiang District Taizhou Zhengjiang
Welcome you contact me any time!
