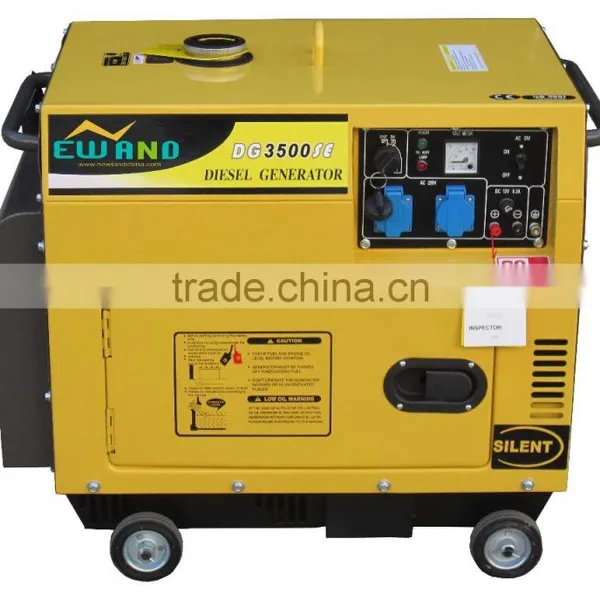

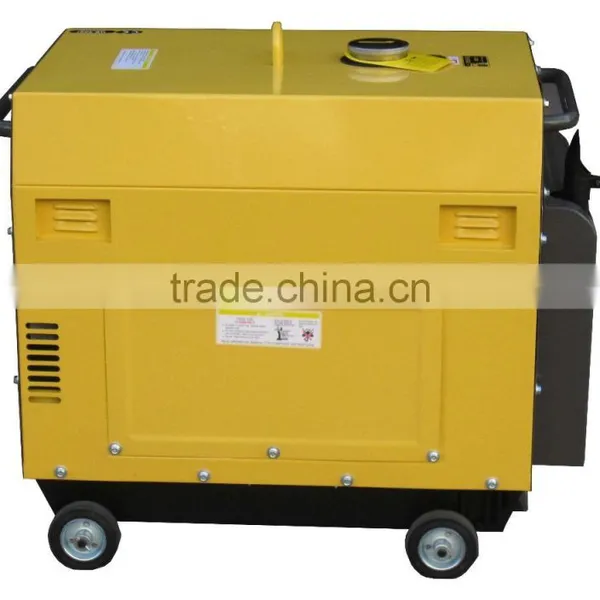

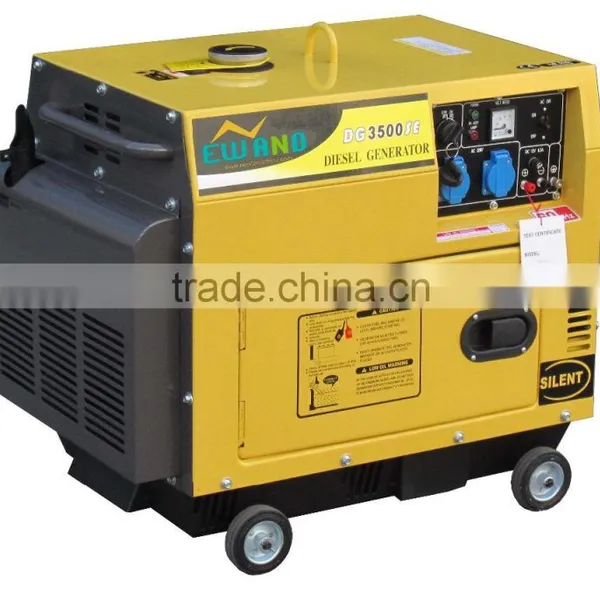

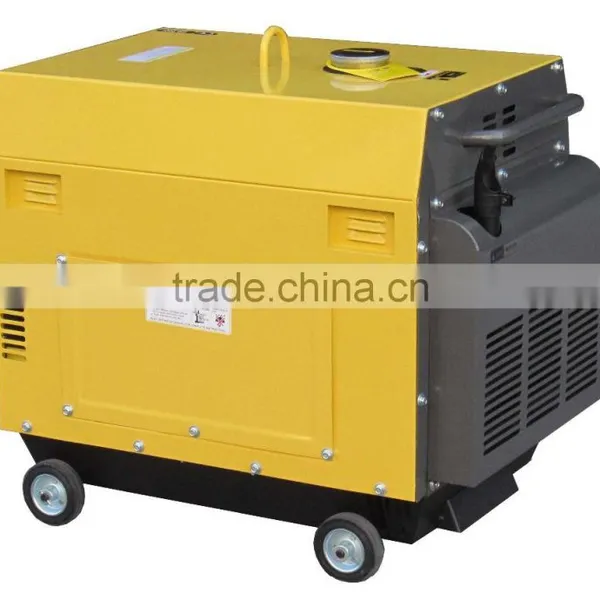

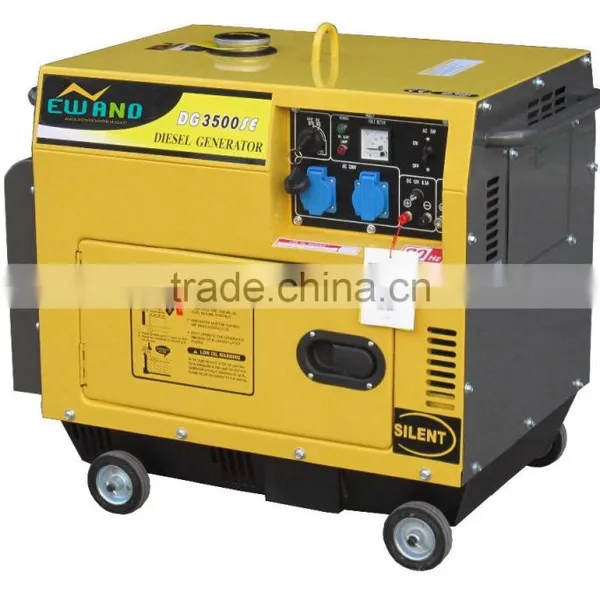

5KW Single Phase 100% Copper Wire Marine Diesel Generator

FOB Price

US$ 300 - 600 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

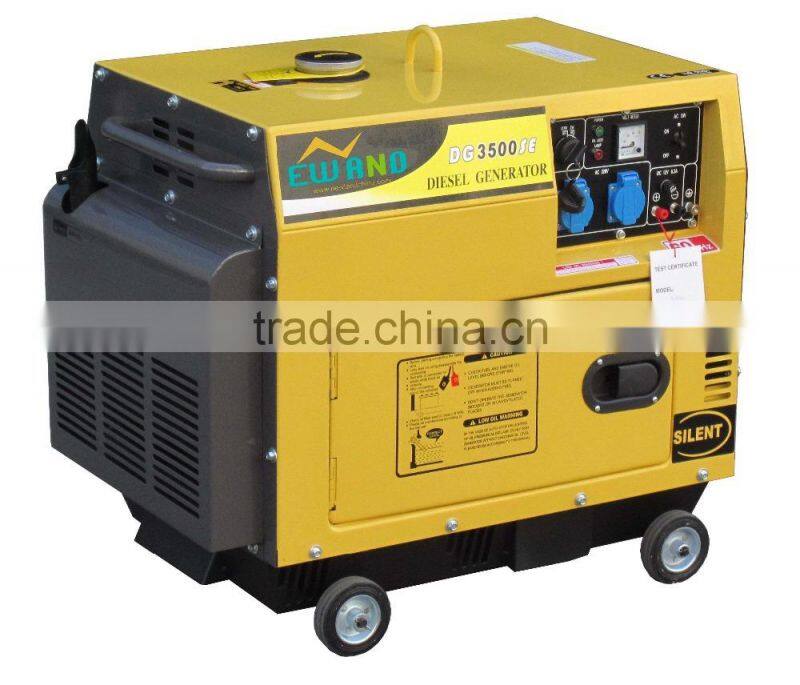

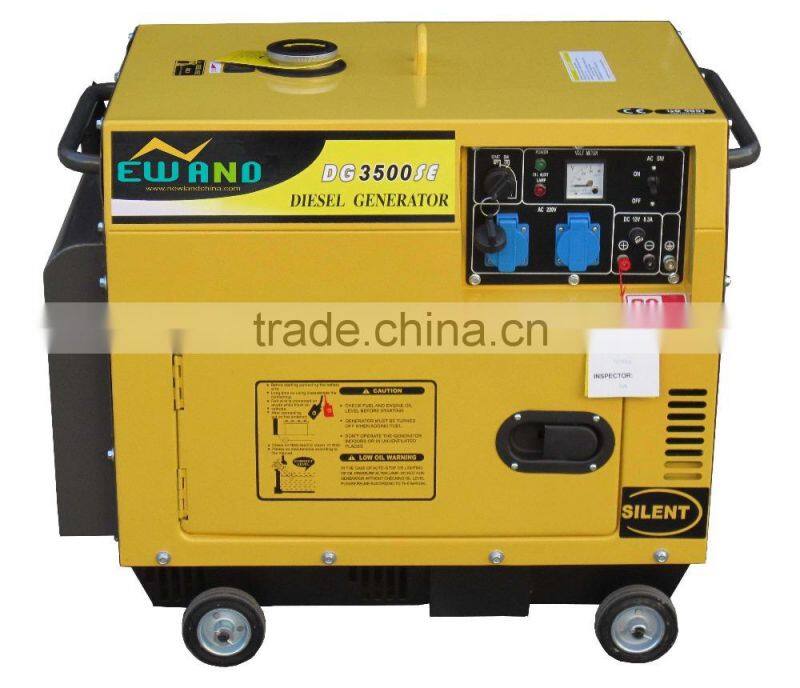

5KW single phase 100% copper wire marine diesel generator

Item No.: DG6500SE

1. Overload and low oil warning for safe running.

2. AVR alternator provides stable voltage and current.

3. Powered by 4-stroke air-cooled diesel engine.

4. Large-capacity mufflers for super silent operation.

5. Portable, easy to fit wheels and handle.

6. One year warranty with free spare parts.

Product Description

Specification

5KW single phase 100% copper wire marine diesel generator
GENERATOR	4500SE	6500SE	7500SE	8500SE	12000SE	15000SE
Frequency (HZ)	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Max.output (KW)	3.3/3.5	5/5.5	5.5/6	6.5/7	9/9.5	10/11
Rated output(KW)	3/3.3	4.6/5	5/5.5	6/6.5	8.5/9	9/10
Rated AC Voltage(V)	120,220,230,120/240,220/380
Power Factor	1	1	1	1	1	1
DC output (V)	12V/8.3A
Phase	Single Phase/Three phase
Alternator Type	Self-excited,2-pole, Single alternator				Self-excited
Starting System	electric
Noise Level (dB(A/7m)	68-72				86dB
Fuel Tank Capacity (L)	16			16/30	30	30
Continuous Running Time (hr)	8.5/7.8	8.5/7.8	8.5/7.8	8.5/7.8	9.4/8.4	9.4/8.4
ENGINE
Engine Model	178F	186FA	188FA	192FB	2V86	2V88
Engine Type	single-cylinder, vertical,4-stroke, air-cooled diesel engine				two-cylinder, vertical,4-stroke air-cooled diesel engine
Bore×Stroke	78×64	86×72	88×75	92×75	86×72	88×72
Fuel Consumption rate g/kw/h	≤295	≤280	≤280	≤280	≤268	≤268
Fuel	0# or -10# light diesel oil
Lubrication Oil Volume (L)	1.65				1.7
Combustion System	Direct Injection
PACKING
Dimention(LxWxH)(cm)	855676	955676	955676	955676	1237584	1237584
Net Weight(kgs)	144	155	156	156	265	265
Container quantity 20GP	72	72	72	72	26	26
40HQ	144	144	72	72	52	52
