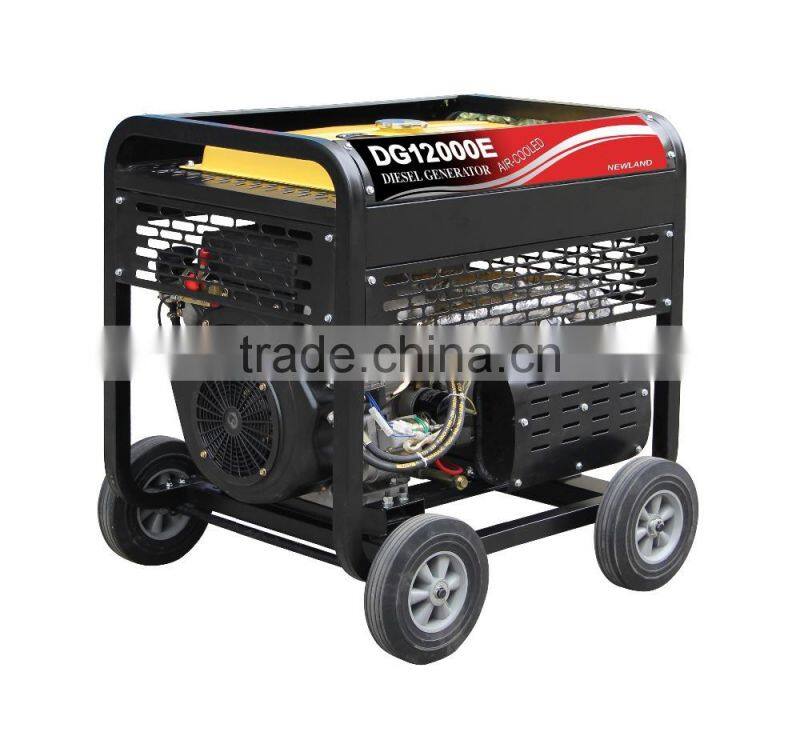

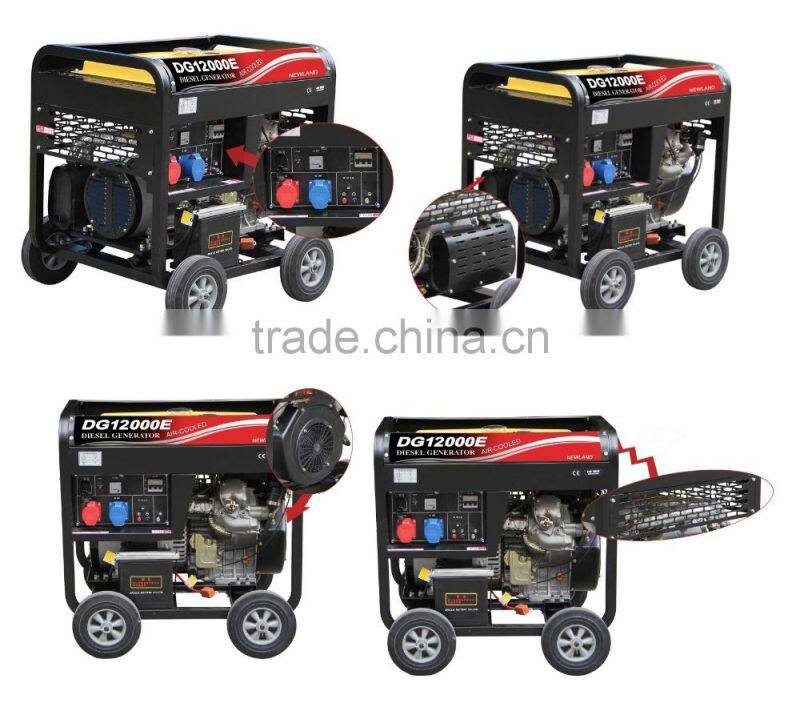

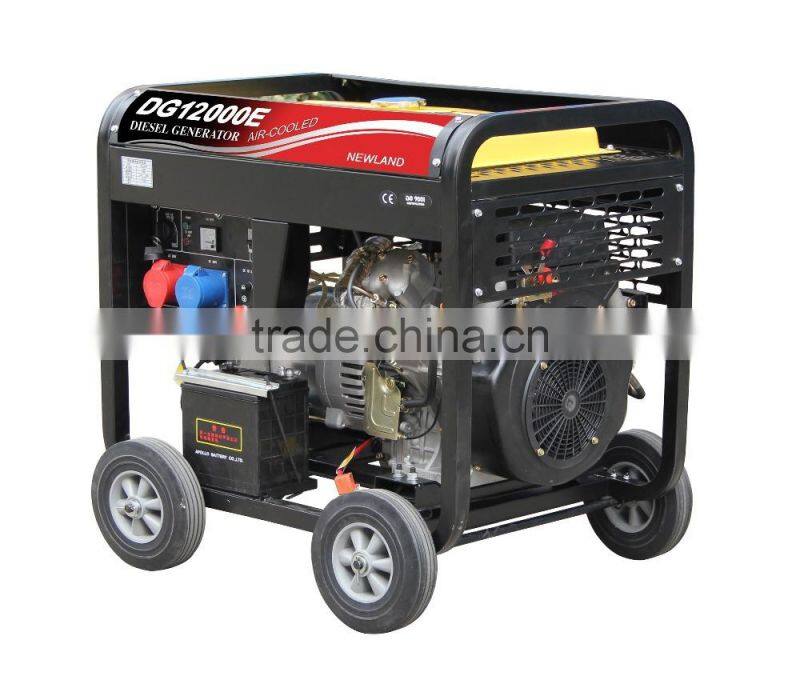

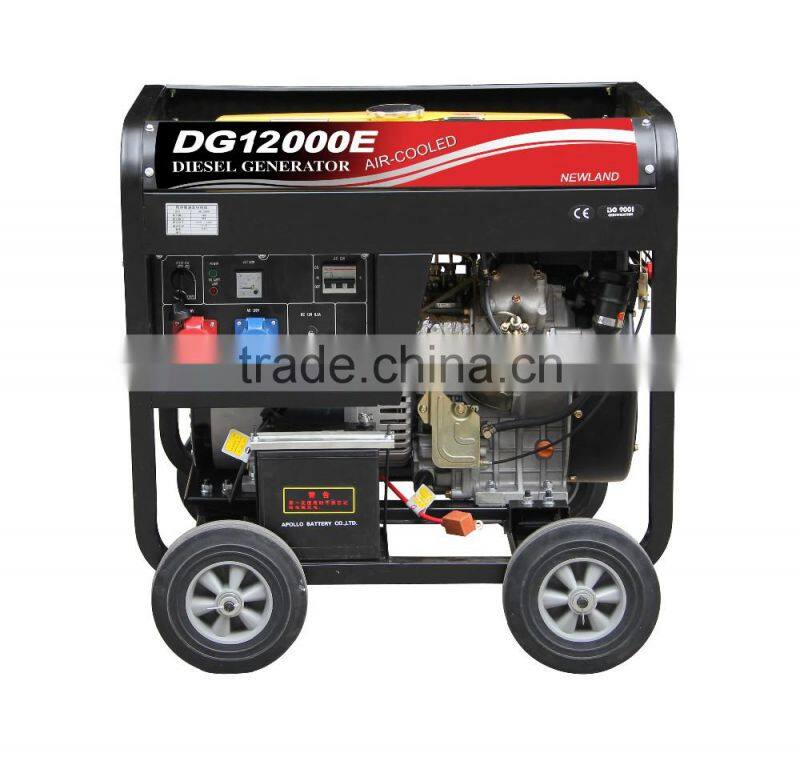

open type diesel power generator
Item NO.: NEWLAND DG12000E
Feature
1. Overload and low oil warning for safe running.
2. AVR alternator provides stable voltage and current.
3. Powered by 4-stroke air-cooled diesel engine.
4. Large-capacity mufflers for super silent operation.
5. Portable, easy to fit wheels and handle.
6. One year warranty with free spare parts.
Specification
| open type diesel power generator | ||||||||||||||
| LB2500(E) | LB3000(E) | LB6000(E) | LB7000(E) | LB8000(E) | LB12000E | LB15000E | ||||||||
| Generator | ||||||||||||||
| Frequency (HZ) | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||||
| Max.output (KW) | 2/2.2 | 3/3.3 | 5/5.5 | 5.5/6 | 6.5/7 | 9/9.5 | 10/11 | |||||||
| Rated output(KW) | 1.8/2 | 2.8/3 | 4.6/5 | 5/5.5 | 6/6.5 | 8.5/9 | 9/10 | |||||||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380,230/400V,240/415V | |||||||||||||
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||
| DC output (V) | 12V/8.3A | |||||||||||||
| Phase | Single/Three Phase | |||||||||||||
| Alternator Type | Self-excited,2-pole, Single phase alternator | Self-excited | Self-excited | |||||||||||
| Starting System | manual or electric | electric | electric | |||||||||||
| Noise Level (Dba/7m) | 80-85dB | 86dB | 86dB | |||||||||||
| Fuel Tank Capacity (L) | 12.5 | 30 | ||||||||||||
Continuous Running Time (hr) | 17/14.5 | 9.7/9 | 6.5/6 | 6.5/6 | 6.5/6 | 9.4/8.4 | ||||||||
| ENGINE | ||||||||||||||
| Engine Model | 170F | 178F | 186FA | 188FA | 192FB | 2V86 | 2V88 | |||||||
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | two-cylinder, vertical,4-stroke air-cooled diesel engine | ||||||||||||
| Bore×Stroke | 70×55 | 78×62 | 86×72 | 88×75 | 92×75 | 2*86×72 | 2*88×72 | |||||||
Fuel Consumption rate g/kw/h | ≤295 | ≤295 | ≤280 | ≤280 | ≤280 | ≤268 | ≤268 | |||||||
| Fuel | 0# or -10# light diesel oil | |||||||||||||
Lubrication Oil Volume (L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 | |||||||
| Combustion System | Direct Injection | |||||||||||||
| Packing | ||||||||||||||
Dimention(LxWxH) (cm) | 66*48*55 | 70*48*59 | 70*47*60 | 70*47*60 | 70*47*60 | 88*65*89 | 88*65*89 | |||||||
| Net Weight(kgs) | 52 | 64 | 84 | 85 | 85 | 184 | 184 | |||||||
| 20FT loading pcs | 150 | 130 | 102 | 102 | 102 | 40 | 40 | |||||||
TAIZHOU NEWLAND MACHINERY CO.,LTD,exports gasoline generator,
diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become one of the best choice for all customers.
Company Show
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q:How about guarantee?
A: within 1year after goods is discharged in the destination.
We will suply the consumables if it broken under normal using.
For example, fuel cock,spark plug,recoil starter,etc.
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q:Is it all right to make customer brand name?
A:If your brand already registed in China and it belong to your company.It is ok we can accept it and do it.
More than 500sets can make color carton.
