RG Series Agricultural Rotary Lawn Mower Gearbox

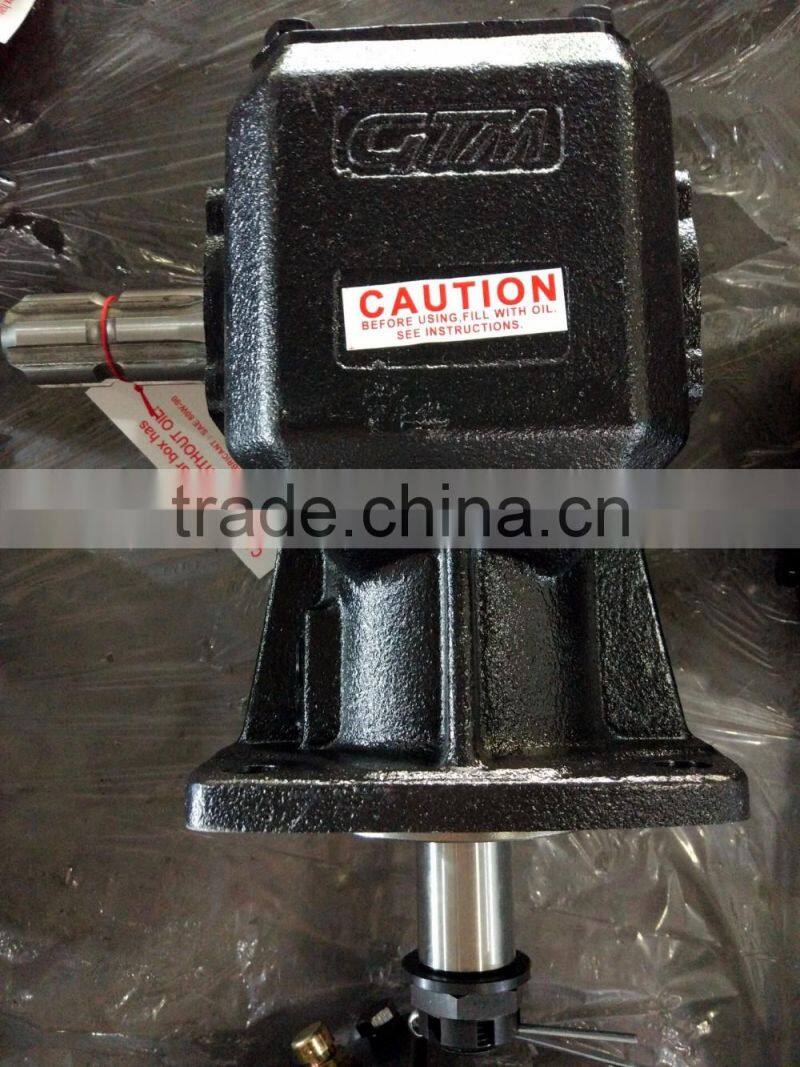

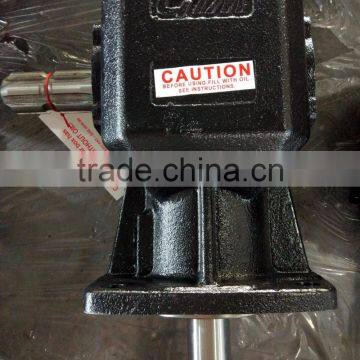

RG Series Agricultural Rotary Lawn Mower Gearbox photo-1

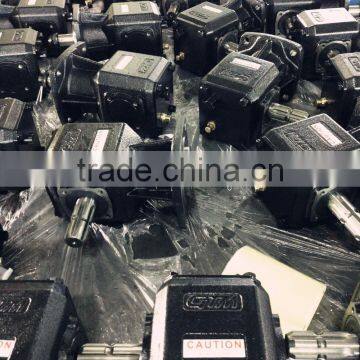

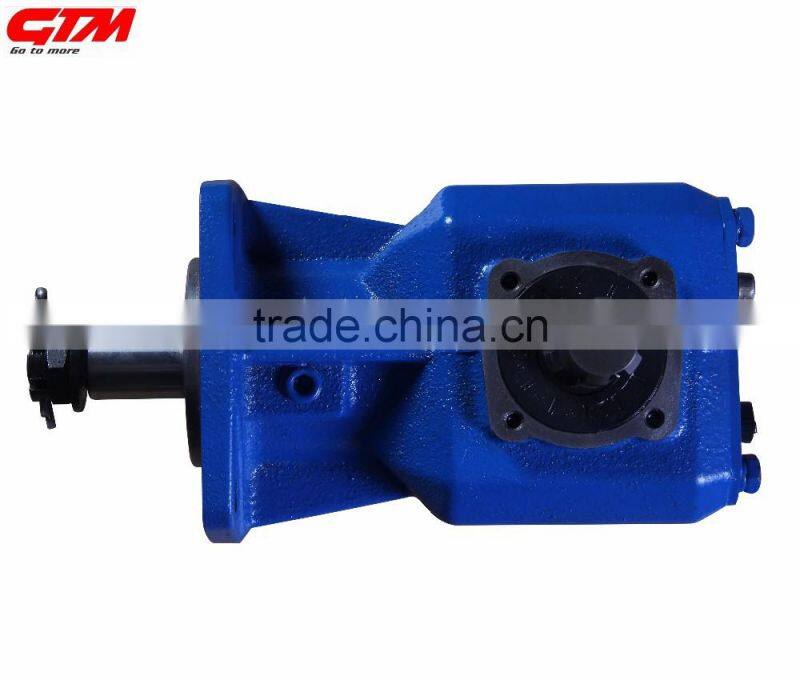

RG Series Agricultural Rotary Lawn Mower Gearbox photo-2

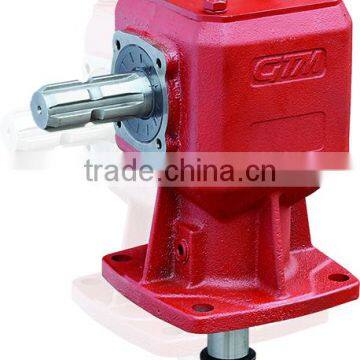

RG Series Agricultural Rotary Lawn Mower Gearbox photo-3

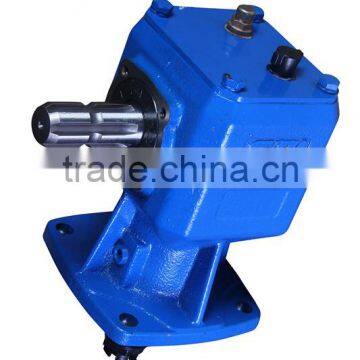

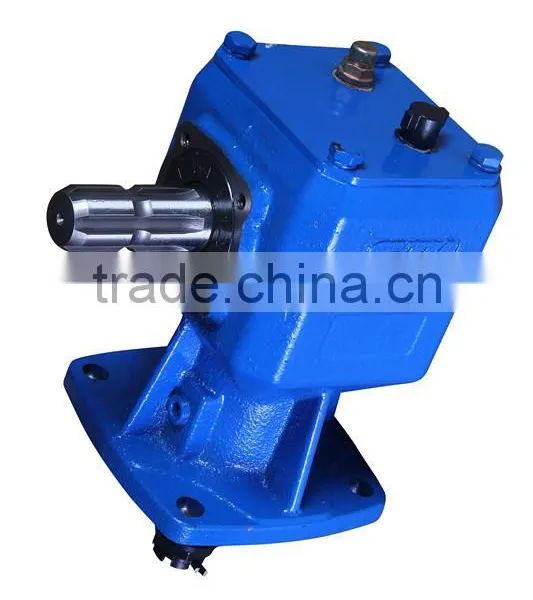

RG Series Agricultural Rotary Lawn Mower Gearbox photo-4

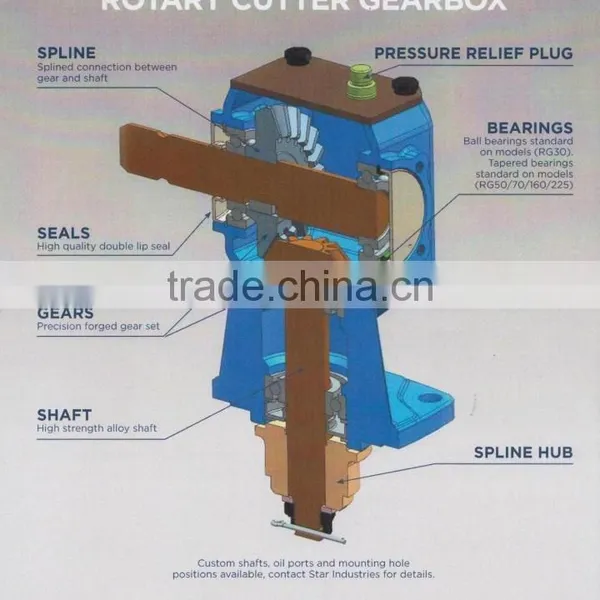

RG Series Agricultural Rotary Lawn Mower Gearbox photo-5

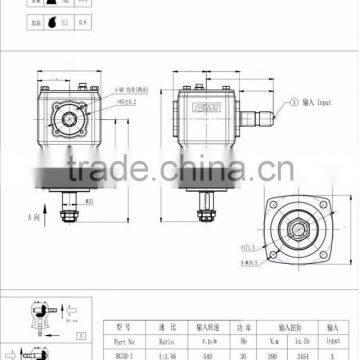

RG Series Agricultural Rotary Lawn Mower Gearbox photo-6
US$ 65 - 85 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GTM
Model Number:
RG30
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GTM
Model Number RG30
Gearing Arrangement Bevel / Miter
Output Torque 267Nm
Rated Power 30hp
Input Speed 540rpm
Output Speed 788rpm
VEDIO
Product Description

1. RG30 gearbox for rotary lawn mower

2. Type: RG30-1; RG30-2; RG30-3

3. Oil: 0.8L

4. Certification: ISO9001:2008, SGS, ROHS

Product Name
Rotary lawn mower gearbox RG30
Material
Housing as HT250, Shaft as 20CrMnTi
Color
Dark or Red or as customized
Type
Bevel gear
Ratio
1:1.46
Bearing
QC or C&U or NTN
Warranty
one and half year
Used
lawn mower

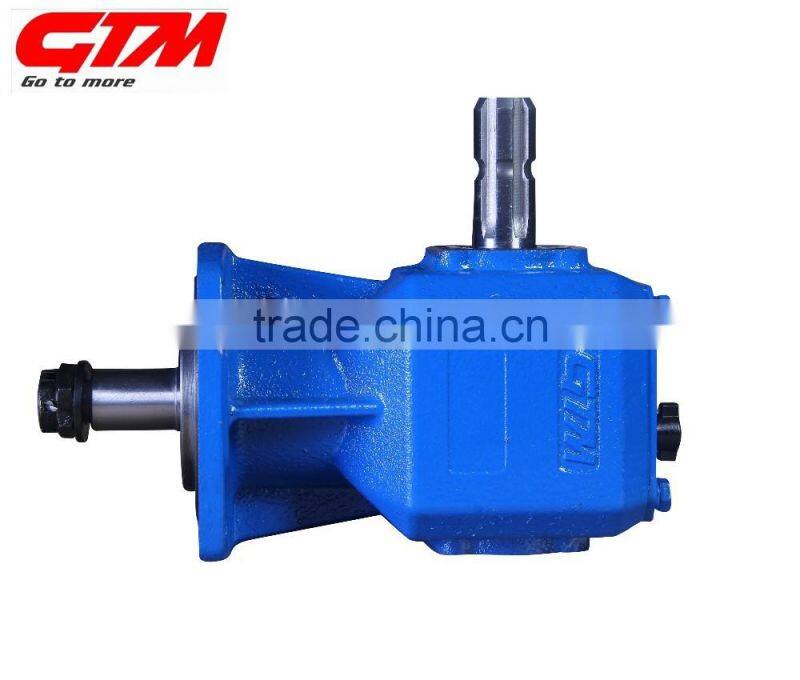

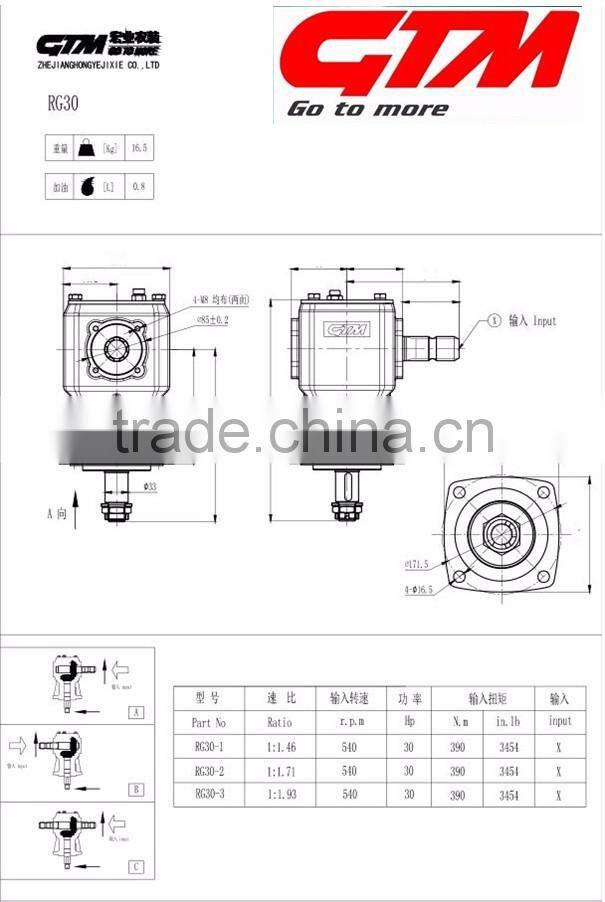

Products Show
Type
Ratio
Output r.p.m
Power
Output torque
N.m
Input r.p.m
RG30-1
1:1.46
788
30
267
540
RG30-2
1:1.71
923
30
228
540
RG30-3
1:1.93
1042
30
202
540
Our Service

High quality

Passed the ISO9001:2008 quality system authentication.

High quality

Passed the ISO4001:2004 environmental system authentication.

High quality

Win the prize from Star Ins.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

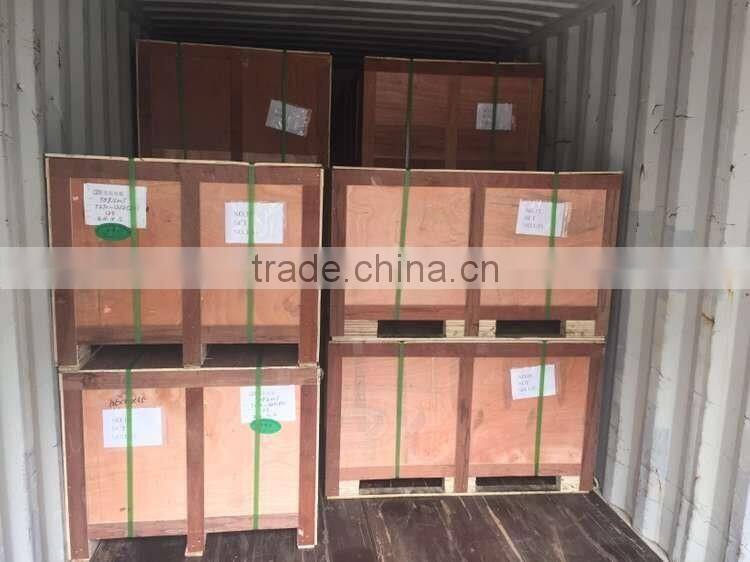

Packing & Delivery

Packing Details  : Plywood case

Delivery Details : Could be transported by air, express, sea freight.

1. Special logistics packaging
2. Suitable case size
3. Inside the container
4. Professional placement
5. Professional operation
6. Complete and let's go!
Products Application

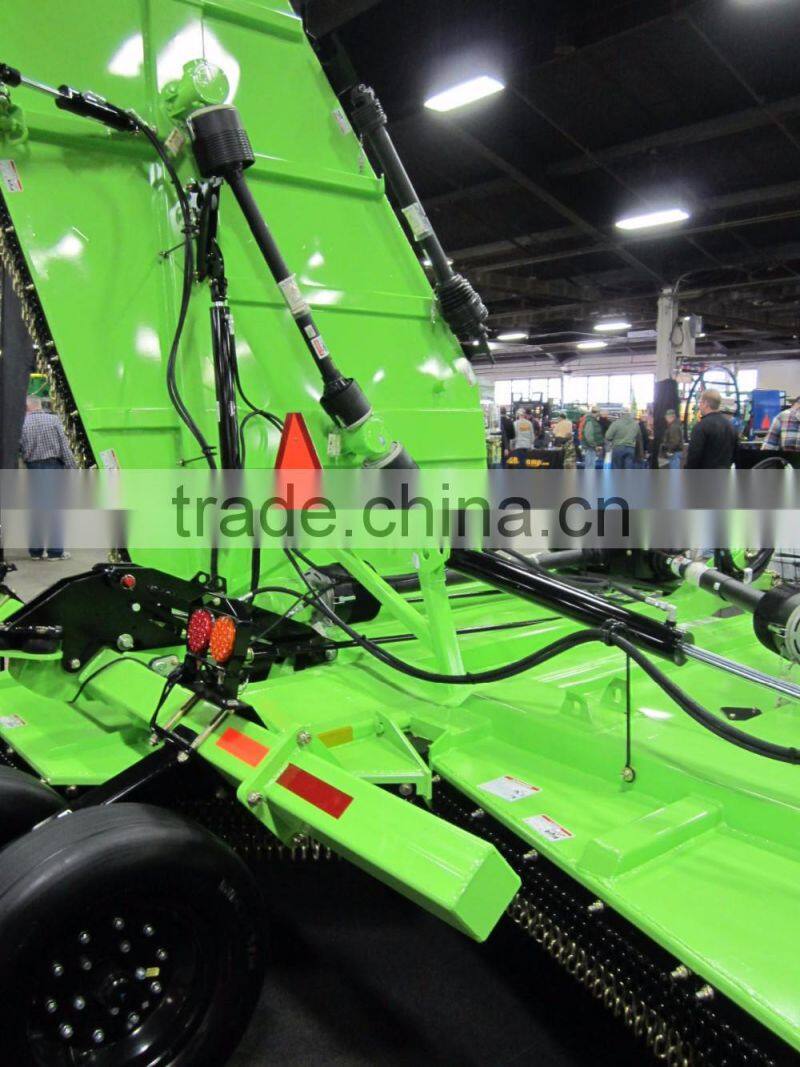

Rotary Lawn Mower Gearbox Application


FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer and also can export by ourselves.

Q: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample as customer's request for certain charge as the drawing shows.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.
