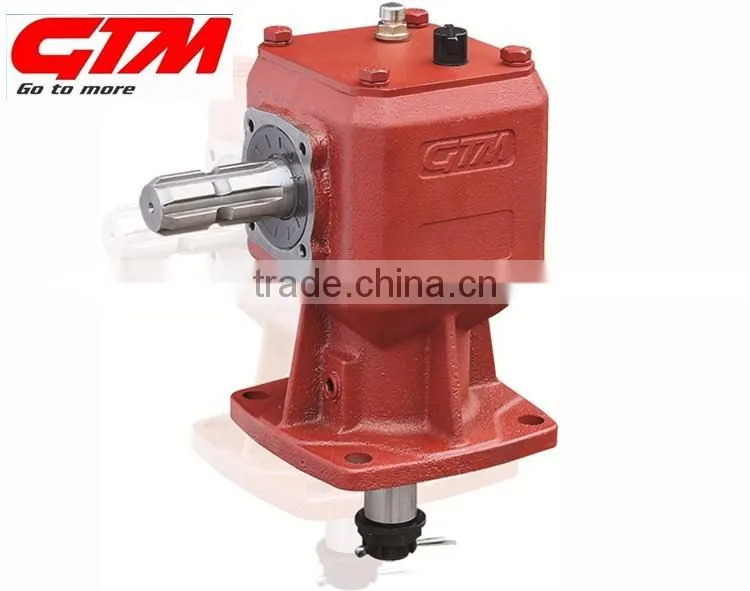

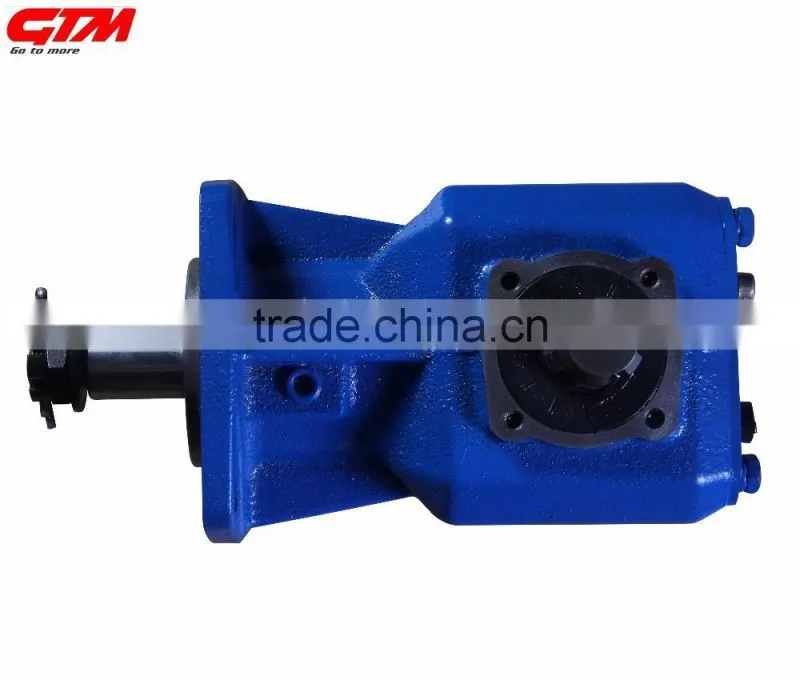

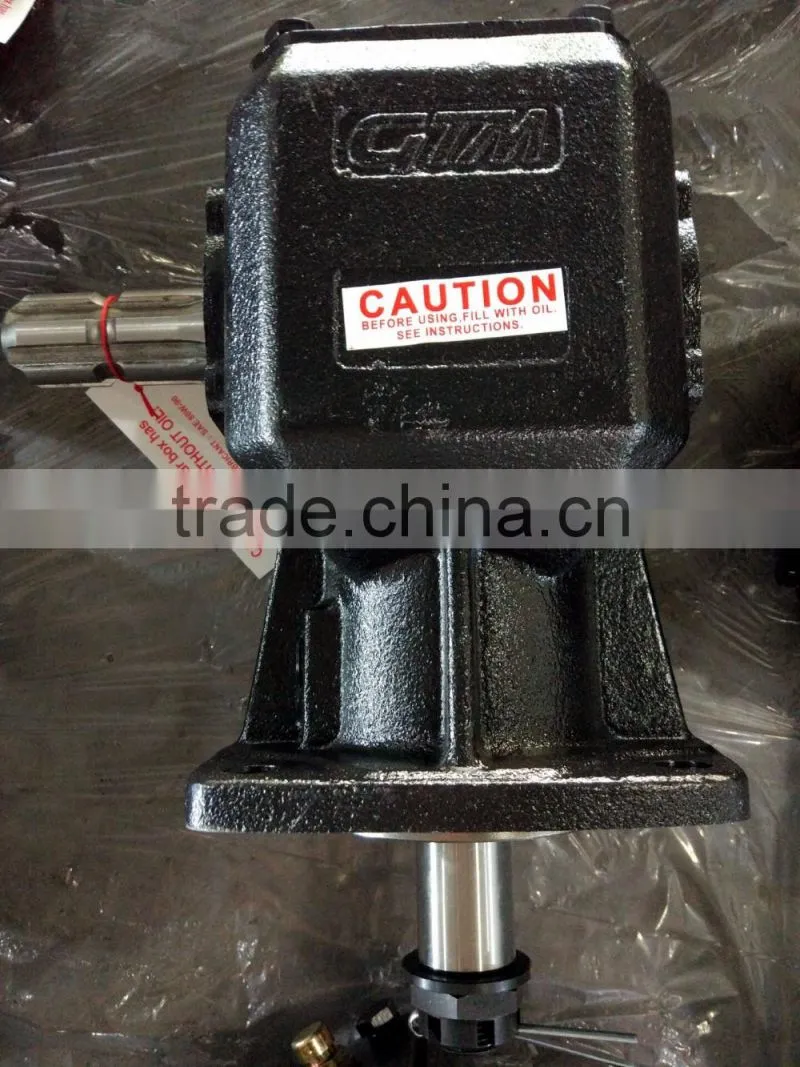

1:1.46 Ratio Hay Mower Gearbox

1:1.46 Ratio Hay Mower Gearbox photo-1
1:1.46 Ratio Hay Mower Gearbox photo-2
1:1.46 Ratio Hay Mower Gearbox photo-3
1:1.46 Ratio Hay Mower Gearbox photo-4
1:1.46 Ratio Hay Mower Gearbox photo-5
1:1.46 Ratio Hay Mower Gearbox photo-6
US$ 60 - 80 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GTM
Model Number:
RG30
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GTM
Model Number RG30
Gearing Arrangement Bevel / Miter
Output Torque 267Nm
Rated Power 30HP
Input Speed 540rpm
Output Speed 788.4rpm



VEDIO

1:1.46 ratio hay mower gearbox

Product Description

1:1.46 ratio hay mower gearbox1:1.46 ratio hay mower gearbox

 1:1.46 ratio hay mower gearbox



Detail Specification



1:1.46 ratio hay mower gearbox

1:1.46 ratio hay mower gearbox



Type Ratio Output r.p.m Power Output torque
N.m
Input r.p.m
RG30-1 1:1.46 788 30HP 267 540
RG30-2 1:1.71 923 30HP 228 540
RG30-3 1:1.93 1042 30HP 202 540

Company Information

Zhejiang Hongye Agricultural Equipment Science and Technology LTD. is a modern enterprise with a combination of development, production, sales and service for transmission products. It is professional in gearbox development and manufacturing with more than 20 years experience. It is manufacturing upward of 500 different kinds of gearbox, used in agricultural, industrial and some other fields.



Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.



We own a series of high precision CNC workshop, high speed 5-axis linkage digital-controlling gear hobbing machines as well as automatic spray painting line All these equipments supply favorable managing condition and reliable detecting methods.



1:1.46 ratio hay mower gearbox1:1.46 ratio hay mower gearbox



 Our team



1:1.46 ratio hay mower gearbox



Related Products
1:1.46 ratio hay mower gearbox

Factory manufacturing grain transporation gearbox

1:1.46 ratio hay mower gearbox

RG series agricultural rotary lawn mower gearbox

1:1.46 ratio hay mower gearbox

Long life-span agricultural short harvester reversing gearbox

1:1.46 ratio hay mower gearbox

agricultural grain auger gearbox with shafting fork



Packaging & Shipping



FAQ

FAQ

01

Are you trading company or manufacturer ?

We are manufacturer and also can export by ourselves.



02

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.



03

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample as customer's request for certain charge as the drawing shows.



04

What is your terms of payment ?

Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.



05

Can you deal with OEM & ODM order?

Yes. Hongye offers our customers with customized services from drawings.



06

What info. need to provide when I need a quotation?

You'd better provide horsing drawing & assembly drawing with BOM so that we can quote a.s.a.p. Of course such elements as ratio,output rpm,output torque and power request also be neeed.


Contact Us
1:1.46 ratio hay mower gearbox

Mob:+86 13888322993
QQ: 3668905
Wechat: delicaterain

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Business Type
Manufacturer
Year Established
1997
Factory Size
1,000-3,000 square meters
Total Employees
201 - 300 People
