Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > 540 Pto Gearbox for Grain Transportation
US$ 50 - 150 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GTM
Model Number:
BR1540R
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GTM
Model Number BR1540R
Gearing Arrangement Bevel / Miter
Output Torque 1000-2000Nm
Rated Power 55HP
Input Speed 540rpm
Output Speed 540rpm



VEDIO

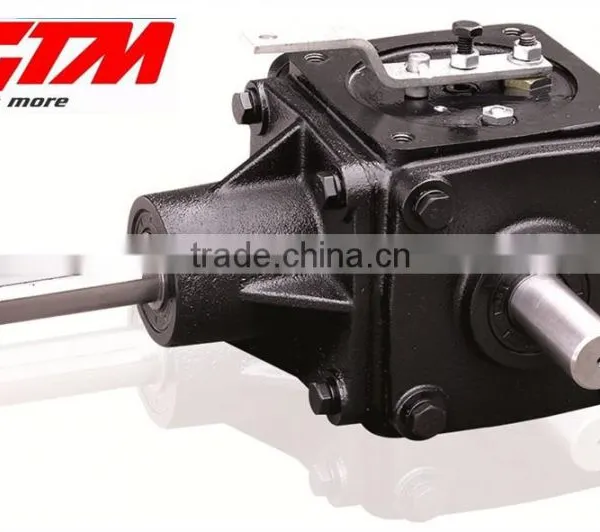

540 pto gearbox for grain transportation



Product Description

Product details

Housing MaterialHT 250
Gear Shaft20CrMnTi
Ratio1:1
Input speed540 rpm
Teeth26/26
ColorCustomer Requests
output torque1000-2000NM
Mould NO.4
Noise87db-1meter
Weight30kg
Product Keywords540 pto gearbox

540 pto gearbox for grain transportation540 pto gearbox for grain transportation


540 pto gearbox for grain transportation540 pto gearbox for grain transportation



TypeRatioInput rpmOutput rpmInput TorquePower
BR1540R1:1540rpm540rpm715NM55HP

FEATURE & ADVANTAGE

Product feature:



1) Transmission ratio: Different ratio as customized.

2) Professional: Professional QC department and inspection equipment to control dimension and backlash and noise well.

3) ODM & OEM: The technology Dpt. can make design the gearbox and develop new craft according to customer's requirement.

4) Warranty period: One and half years to two years.

5) Experience: 20 years experience, safe, reliable, economical and durable.

6) Packing and Delivery control: All of our workers are well trained to guarantee high quality of our gearboxes and 100% products are inspected before delivery.



We promise to supply you perfect design, professional quality control, competitive prices and excellent after-services.





Company feature:



GTM has passed the ISO9001:2008 international quality system certification, ISO14001:2004 environmental management system certification  and Quality Austria ISO/TS 16949:2009 quality management system certification, has won numerous customers' trust and support.



540 pto gearbox for grain transportation

Company Information

ABOUT US

Zhejiang Hongye Agricultural Equipment Science and Technology LTD was established in 1995, located in economic development zone of Wenling city, southeast of China. Hongye commits itself to development, production, sales and service for transmission products. Its products include spiral and straight bevel gearbox, cylinder gear speed reducer, worm reducer, and transmission case etc, widely used in various fields as lawn mowers, grain transportation and storage equipments, rice harvesters, corn harvesters, rotary tillers, pesticide sprayers, fertilizer spreaders, potato harvester, post-hole diggers, snow-blowers, garden machines and oil exploitation fields, etc, with the annual quantity over 250,000pcs.

540 pto gearbox for grain transportation
Customer net

Our customer



300 employees, 10 engineers and 30 technicians, long & good business relationship with most famous agricultural machinery manufacturers in the world, such as Alamo, Star, Yanmar, John Deer,Astuant, GKN, YTO group,Weasler.



540 pto gearbox for grain transportation





540 pto gearbox for grain transportation



 Sales network

540 pto gearbox for grain transportation







Each year, GTM will take part in different kind of exhibition in China and many other countries.We patiently treat with each customer. GTM agricultural regards the global customer needs as own duty, takes root in China, provides service worldwide. Using technology to ensure excellent quality, using wisdom to create national brand.

Packaging & Shipping




FAQ

FAQ

01

Are you trading company or manufacturer ?

We are manufacturer and also can export by ourselves.



02

How long is your delivery time?

Generally it is 10-15 days if the goods are in stock including confirming all the technical details. or it is 30-45 days if the goods are not in stock, it is according to new design.



03

Do you provide samples ? is it free or extra ?

Yes, we could offer the sample as customer's request for certain charge as the drawing shows.



04

What is your terms of payment ?

Payment<=5000USD, 100% TT payment in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. We also accept LC, WU payment.



05

Can you deal with OEM & ODM order?

Yes. Hongye offers our customers with customized services from drawings.



06

Where is your company address?

Our company hongye located in NO.5 of Changjiang Road,2nd Economic Development Zone of Wenling Zhejiang China.
