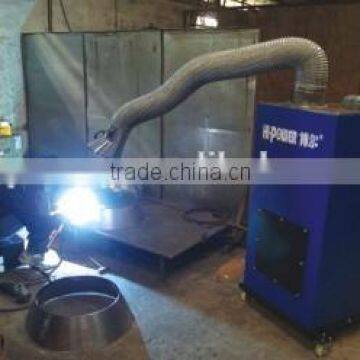

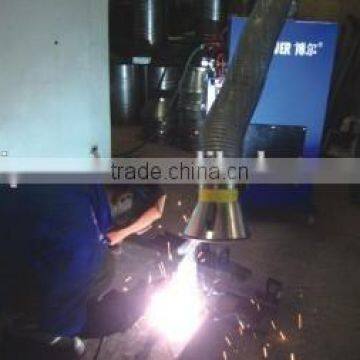

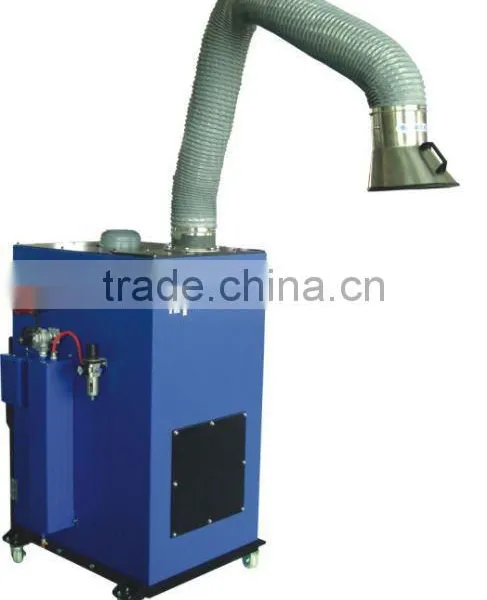

Mobile Type Impulse Counter Blowing Welding Fume Purifier is a moveable filtration system with internally installed filter and counter blowing device. It is the necessary equipment for metal processing to clean the welding fume and dust.
Impulse Counter Blowing Device
Filtration precision can reach to 99.9%. When the filter is blocked, just use the hose connecting to the pressed air. By the Jet Pulse System, the filter can be cleaned within one minute. At last, take out and clean the dust collector then can be used repeatedly.
With big wheel and handle, it is easy to move and operate.
360 degree pull retractable hover long flexible suction arm, insure larger working area.
Technical Parameters
Model |
GY-0075FC |
GY-0150FC |
GY-22FC |
Airflow |
1000 m3/h |
1320 m3/h |
2200 m3/h |
Filtration Efficiency |
99.9% |
99.9% |
99.9% |
Filtration Precision |
0.1 micro m |
0.1 micro m |
0.1 micro m |
Filter Area |
> 10 m2 |
> 10 m2 |
> 10 m2 |
Power |
0.75 KW |
1.5 KW |
2.2 KW |
Filter Cleaning Way |
Impulse Counter Blowing |
||
Action Radius |
2 m ( Depend on the length of the suction arm) |
||
Suction Arm |
360 degree pull retractable hover long flexible suction arm |
||
Cartridge Filter |
Easy to clean and change |
||
Dimensions |
840*605*1300 mm |
||
Weight |
90 KG + 15 KG( suction arm) |
||
