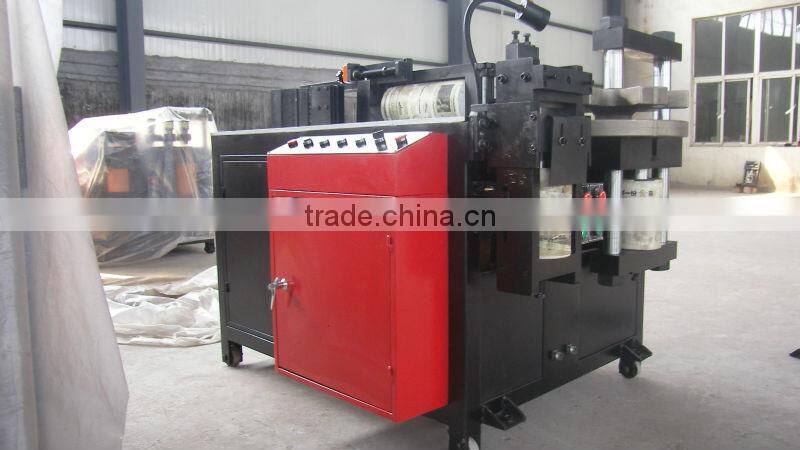

ZTMX-503D multifunction Busbar Machine
Instruction:
busbar machine is also called busbar processing machine, busbar bending cutting punching shearing
machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
ZTMX busbar machine including: ZTMX-503D
This kind machine is mainly used for different types of processing of copper or aluminum busbar.
One machine can carry out processing of punching, shearing and bending at the same time or
respectively. It is easy to operate, convenient to use and high production efficiency. So it is an
ideal processing equipment for electrical appliance manufacture of high and low voltage.
Main Characteristics:
1) This machine has 3 units for punching, shearing and bending and can do special processing
work such as pressing, embossing, pressing cable joint, twisting and so on.
2) It is convenient for using and higher production efficiency than traditional busbar processing
equipments.
3) You can adjust working stroke of each unit conveniently to reduce machining auxiliary time
and improve production efficiency.

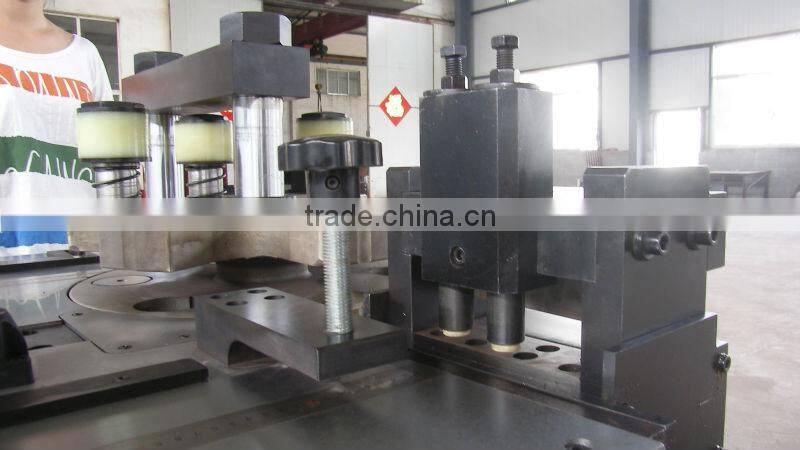

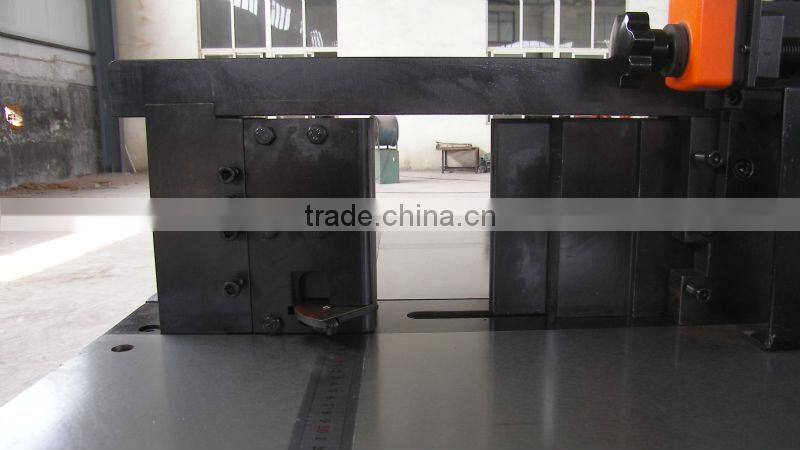

4) We adopt vertical machining method for punching and shearing unit, so operation is flexible
and convenient. We use flatedge shearing method, so the work piece surface is neater and
smoother
5) Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools.
6) Through changing tools, this machine can achieve many functions like embossing, pressing,
pressing cable joint, twisting and so on.
7) There are 4 trundles. So the machine can be moved conveniently by adjusting them.

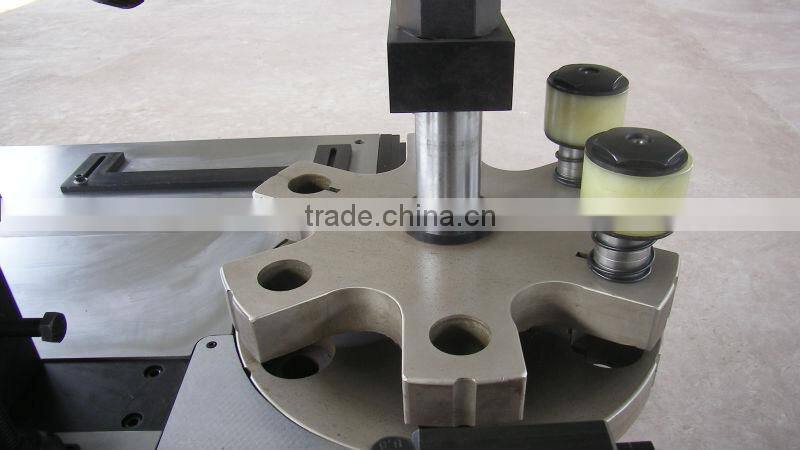

8) It can be installed 6 punching mould once time. Improve working efficiency.
Technical parameters:
ZTMX-303D |
ZTMX-503D |
||
Punching |
Max power(KN) |
300 |
500 |
|
Punching Diameter(mm) |
4.3~25 |
4.3~34 |
|
Max thickness(mm) |
12 |
16 |
|
Max width(mm) |
150 |
250 |
|
Shearing |
Max thickness(mm) |
12 |
16 |
Max width(mm) |
150 |
250 |
|
Bending |
Max power(KN) |
300 |
500 |
Max width(mm) |
150 |
250 |
|
Vertical Bending |
Max width (mm) |
100 (10mm Thick copper) |
120(10mm Thick copper) |
Embossing |
√ |
√ |
|
Pressing Cable Joint |
√ |
√ |
|
Twisting |
√ |
√ |
|
Outline Dimensions |
1300×1000×900 |
1500*1345*900 |
|
Power of Main Motor (KW) |
3×4 |
3*5.5 |

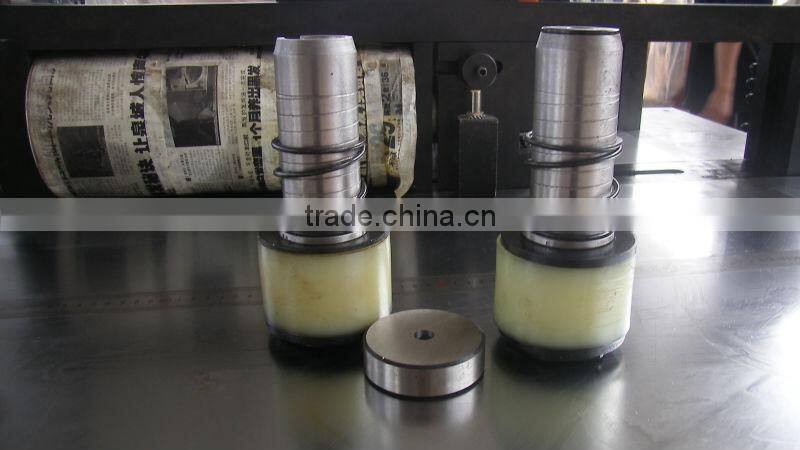

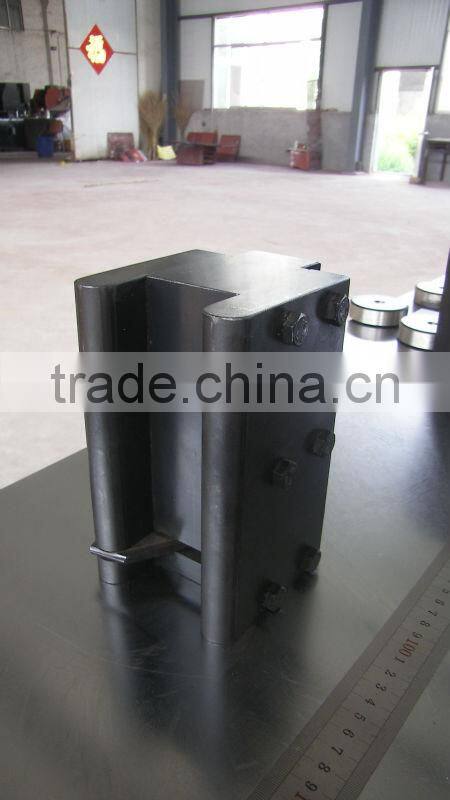

Accessories with machine:
6 sets of punching, 1 set of shearing, 1 set of flat bending, 1 set of vertical bending.
