Home > Manufacturing & Processing Machinery > Metallurgy Machinery > DW50CNC Cnc Tube Bending Machine
DW50CNC Cnc Tube Bending Machine
US$ 26,000 - 26,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
chengyang
Model Number:
DW50NC
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Automatic Hydraulic CNC Pipe Bending Machine DW75CNC ModelUS$ 40,000 - 40,000MOQ: 1 Set -
W24S-16 Hydraulic Section Bending MachineNegotiableMOQ: 1 Set
-
CNC Hydraulic Iron Profile Bending Machine For Steel SectionNegotiableMOQ: 1 Set
-
Hydraulic 3-Roller Metal Sheet Profile Bending Machine ManufacturerNegotiableMOQ: 1 Set
-
CNC Hydraulic Section Bender Machine for ProfileNegotiableMOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
chengyang
Model Number
DW50NC
After-sales Service Provided
Engineers available to service machinery overseas

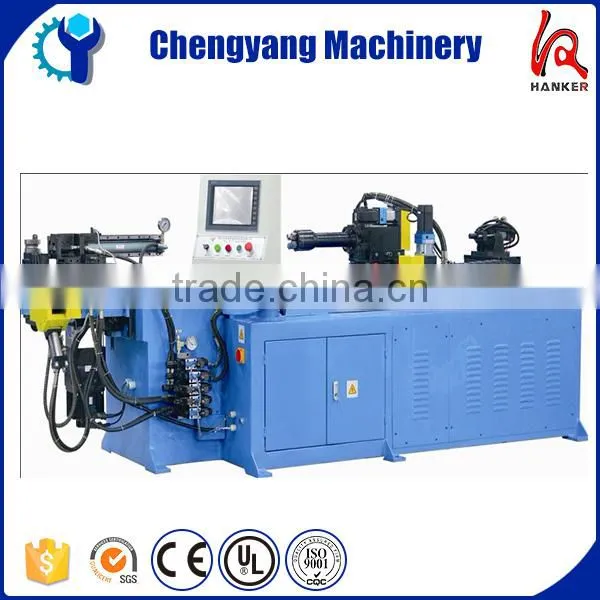

DW50CNC CNC Pipe-bending Machine
Automatic CNC Pipe Bending Machine Tube Bending Machine Roll Bending Machine
1. Bend-arm (C-axis) by hydraulic. Clamp die by hydraulic, Pressure die by hydraulic.
2. Carriage (Y-axis) by servo motor. Collet (B-axis) : rotation by servo motor, grip by hydraulic.
3. Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control
4. Fan-cooling system.
5. Central Automatic lubrication system.
6. Foot pedal for safe start.
7. It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding.
8. Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual,
semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axes working simultaneously.
9. Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.
10. Security code for the protection the data setting and selected operation features.
11. To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.
12. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
13. CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic.
14. The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the metal pipe processing.
15. CE, ISO9001 Certification
DATA:
| DW50CNC automatic bending machine details: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
