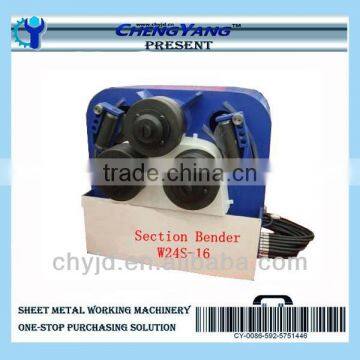

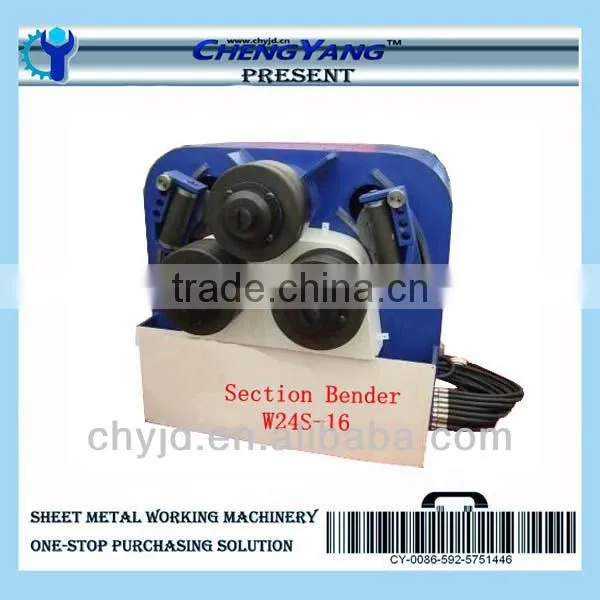

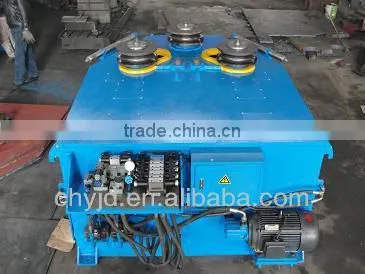

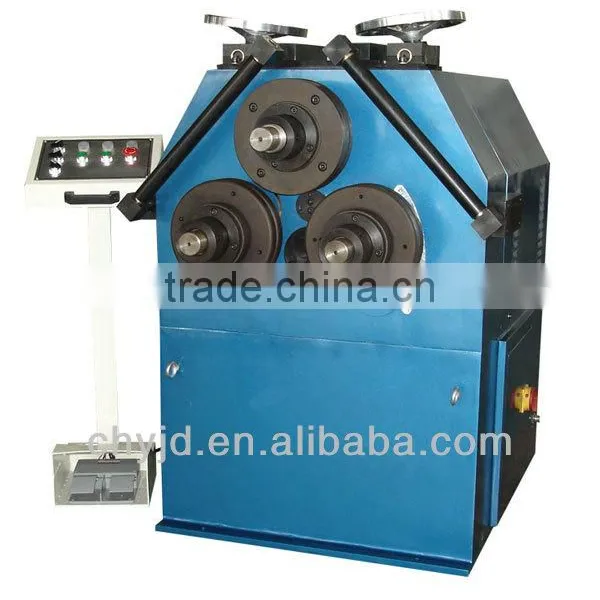

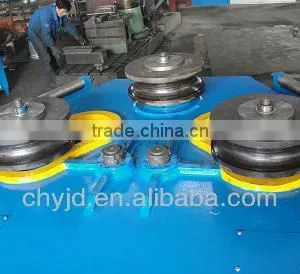

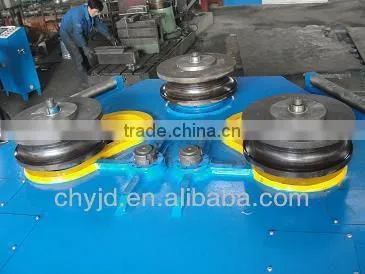

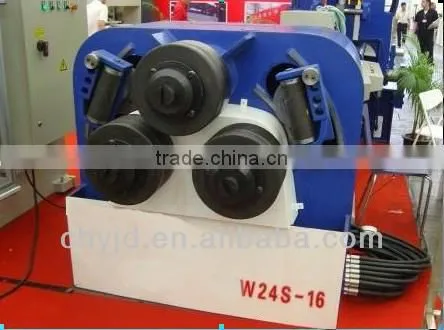

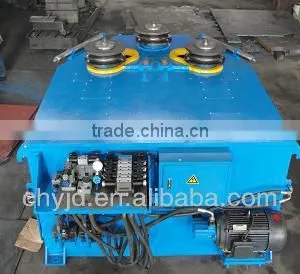

W24S-16 Hydraulic Section profile bending Machine
1. Main Performance
Section bender produced by our co., is specially used in the volume curved angle steel, channel steel,
I-steel, flat steel, side steel, round steel and so on, each kind of profiled bar highly effective processing
equipment, and may one time winding circle, corrective round working procedure, widely used in the
petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and so on.
Two lower rollers of the machine are primarily transmission roller, also the three work rollers primarily
are transmission roller, two side rollers revolve the fixed center of ritation to make the are vibratory
movement, two sides are equipped with hold the roller equipment, it’s advantageous in guaranteeing
the asymmetrical section molding volume system quality of winding, the structure of the machine is
advanced, works reliably, small volume, complete function, it’s the present equipment in domestic and
abroad. The machine may be equipped with advanced general or the special purpose molds and easy
operation, high efficiency, warmly welcome by the customer.
2. Type:W24S-16
3. Major Parameters:
|
Type Parameter |
W24S-16 |
|
Max bending resistence of section modulus Cm³ |
16 |
|
Rolling speed m/min |
5 |
|
Yield limit MPa |
under 245 |
|
|
Angle iron inturn |
Max section of angle iron |
70×70×8 |
Mini rolling dia: mm |
1000 |
|
Mini section of angle iron |
30×30×3 |
|
Mini rolling dia: mm |
500 |
|
|
Angle iron outurn |
Angle iron |
75×75×10 |
Mini rolling dia: mm |
1000 |
|
Mini section of angle iron |
30×30×3 |
|
Mini rolling dia: mm |
400 |
|
|
Channel Outurn |
Type |
12 |
Mini rolling dia: mm |
800 |
|
|
Channel Inturn |
Type |
14 |
Mini rolling dia: mm |
900 |
|
|
Steel flat
|
Max section |
150×25 |
Mini rolling dia: mm |
700 |
|
|
Steel flat vertical |
Max section |
75×16 |
Mini rolling dia: mm |
760 |
|
Dimension(L*W*H)m |
1.21×0.95×1 |
|
4. Major Elements:
Serial |
Items |
1 |
Motor Y Series |
2 |
Hydraulic Motor |
3 |
Gear Pump |
4 |
Hydraulic Valve |
5 |
Oil cylinder |
6 |
Electrics |
7 |
Light Encode |
8 |
Bearing |
9 |
PLC |
10 |
Sealings |
11 |
Moulds |
5. Enclosed Moulds:
A set of standard mould is enclosed,while it can meet the requirements of Angle iron, Channel iron and flat iron.
If you need other types, we can design according to your need with additional cost.
