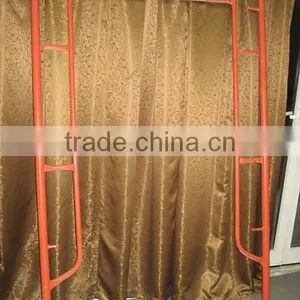

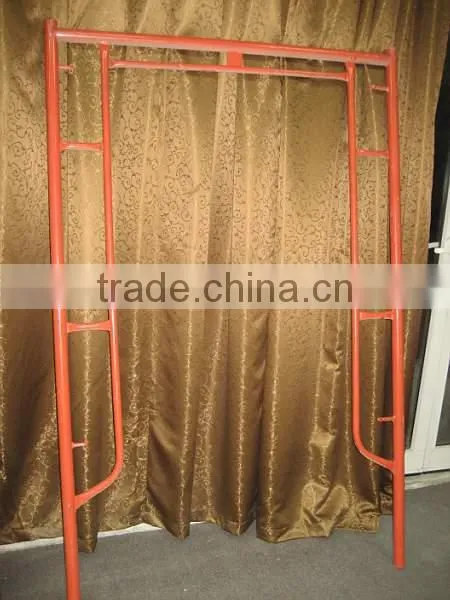

Help Center1219*1524MM Ladder Scaffold Gate for Construction
Related Products
-
1219*1219MM Light Duty Gates ScaffoldUS$ 43 - 65MOQ: 200 Sets -
Walk Through Scaffolding Systems for BuildingUS$ 43 - 65MOQ: 200 Sets
-
Good Quality Heavy Duty Steel Scaffolding CastersUS$ 5.6 - 9.3MOQ: 500 Pieces
-
High Grade Heavy Duty Steel Scaffold CastersUS$ 5.6 - 9.3MOQ: 500 Pieces
-
6" Mobile Scaffolding Caster Wheel With BrakeUS$ 5.6 - 9.3MOQ: 500 Pieces
Specifications
ladder scaffold gate1)Material:Q235,Q195
2)Size:1219x1700x1800mm
3)pipe:42*2.2mm/48*2.5mm
4)Surface finish:galv
Frame Scaffolding
Frame Scaffolding Cross Brace / ladder scaffold gate
Type |
Scaffolding Frames |
Material |
Q235 Material is as per customer's demand with high tensile and yield stress |
Color |
Silver, as customer's requirement |
Surface Treatment |
Electro plated, Hot dip galvanized, Powder coated, Painted |
Advantages |
Top quality, Competitive price, Timely delivery, Good Service, Standard package, |
Certification |
ISO9001/2000 |
Minimum order |
1000 pieces |
Supply ability |
20tons/month |
Port |
QINGDAO PORT |
Currency |
U.S.Dollars |
Payment |
L/C, T/T |
Package |
Woven bags with pallets or as your requirements |
Specification of the Scaffolding Frame Cross Brace
| Cross brace 2198 | 1219×1829mm Ø21×1.5×2243mm |
Pre-galvanized | 3.29 |
| 1219×1829mm Ø21×1.0×2243mm |
Pre-galvanized | 2.25 | |
| Cross brace 2045 | 914×1829mm Ø21×1.5×2090mm |
Pre-galvanized | 3.06 |
| 914×1829mm Ø21×1.0×2090mm |
Pre-galvanized | 2.09 | |
| Cross brace 1928 | 610×1829mm Ø21×1.5×1973mm |
Pre-galvanized | 2.89 |
| 610×1829mm Ø21×1.0×1973mm |
Pre-galvanized | 1.98 | |
| Cross brace 1724 | 1219×1219mm Ø21×1.5×1769mm |
Pre-galvanized | 2.59 |
| 1219×1219mm Ø21×1.0×1769mm |
Pre-galvanized | 1.77 | |
| Cross brace 1363 | 1219×610mm Ø21×1.5×1408mm |
Pre-galvanized | 2.06 |
| 1219×610mm Ø21×1.0×1408mm |
Pre-galvanized | 1.41 |
Specification of the Scaffolding Frame Cross Brace
| Description | Size (mm) | The distance from end to Lock pin(mm) | The Distance from lock pin to lock pin(mm) | Match Cross brace size(mm) | Match Catwalk size (mm) |
| Door frame | 1219*1700 | 240.5 | 1219 | 2198 | 1829 |
| 1219*1930 | 152 | 1219 | 2198 | 1829 | |
| 1219*1524 | 152 | 1219 | 2198 | 1829 | |
| 914*1700 | 240.5 | 1219 | 2198 | 1829 | |
| 914*1930 | 152 | 1219 | 2198 | 1829 | |
| Ladder frame | 1219*914 | 152 | 610 | 1928 | 1829 |
| 1219*1000 | 152 | 610 | 1928 | 1829 | |
| 1219*1219 | 152 | 914 | 2045 | 1829 | |
| 1219*1524 | 152 | 914 | 2045 | 1829 | |
| 1219*1700 | 240.5 | 1219 | 2198 | 1829 | |
| 1219*1930 | 152 | 1219 | 2198 | 1829 | |
| 914*914 | 152 | 610 | 1928 | 1829 | |
| 914*1700 | 240.5 | 1219 | 2198 | 1829 |
Workshop of the Frame
-
Application:
1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.
2. Apply to inside and outside scaffolding fence.
3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.
-
Package of the Scaffolding Frame
About us
We specialized in the filed of the hardware and scaffolding systems for10 years time and we dealing with many kinds of the Scaffolding .like Ringlock.Cuplock.Kwikstage scaffolding .frame systems. Shoring propsystems. hardware like handtools, Auto Tools. Building tools, such as the ratchet wrench.Pickaxe, Firmer chisel,shovel, pickaxe,various hammers,Triangle bricklayer,Scraper and so on. We want to emphasize that our goods get the reputation in the market due to the competitive price with the high quality. please do not hesitate to contact us meanwhile we will offer you the best with the quality you satisfied.
