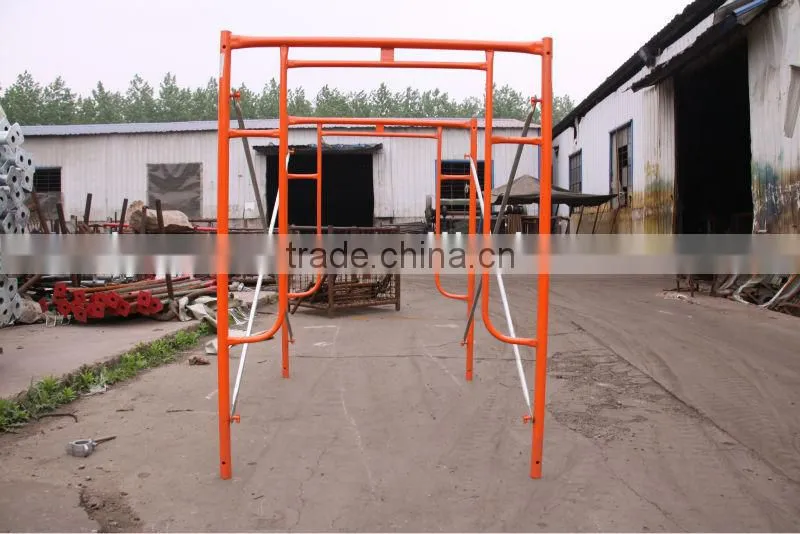

1219*1219MM light duty gates scaffold

by steel pallet

Specifications

light duty gates scaffold
1)Material:Q235,Q195
2)Size:1219x1700x1800mm
3)pipe:42*2.2mm/48*2.5mm
4)Aviliable height 20M

Frame Scaffolding/ formwork scaffolding



1.Material:Q235 Q255 Q345
2.Variety:Walk through type & Ladder type
3.Type:  H frame scaffolding system

4.Thickness of the tube:3mm 3.2mm 3.25mm 3.5mm 4mm or customize
5.Surface treatment:HDG/Galvanized/Painted,ect.
6.Color:silver, red, blue, yellow, green or customize
7.Certificate:ISO9001:2000  ISO9001:2008
8.Standard:EN74 BS1139 AS1576
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Main components: frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster.
11.Usage: Our products are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc

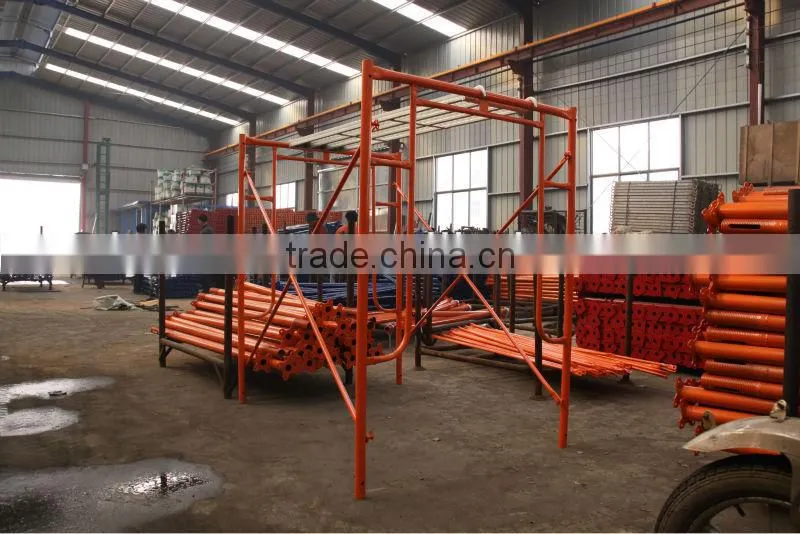

frame scaffolding is light duty, easy to erect and walk through, wide applications for both inside and outside constructions.
A complete set usually includes 2 PCS of H frames, 2 pairs of cross braces and 4 PCS of joint pins.

Components:
Pre-galvanized tube, Joint Pin, Lock Pin, Cross Brace, Base Jack or Universal Wheel.



Specification of the Walking through frame



STD/ Ledger(P.G.) mm	Size          mm	Weight       KG
Φ42*2.2/Φ42*2.0	1930*1219	15.05
Φ42*2.0/Φ42*2.0	1930*1219	14.33
Φ42*2.1/Φ42*2.0	1930*1219	14.43
Φ42*2.2/Φ42*2.0	1700*1219	13.51
Φ42*2.0/Φ42*2.0	1700*1219	12.88
Φ42*2.1/Φ42*2.0	1700*1219	13.20
Φ42*2.2/Φ42*2.0	1524*1219	12.21
Φ42*2.0/Φ42*2.0	1524*1219	11.64
Φ42*2.1/Φ42*2.0	1524*1219	12.00
Φ42*2.2/Φ42*2.0	914*1219	9.56
Φ42*2.2/Φ42*2.0	1930*914	14.19
Φ42*2.0/Φ42*2.0	1930*914	13.47
Φ42*2.2/Φ42*2.0	1700*914	12.65
Φ42*2.0/Φ42*2.0	1700*914	12.02
Φ42*2.2/Φ42*2.0	1524*914	11.60
Φ42*2.0/Φ42*2.0	1524*914	11.03





   Specifications of frame scaffolding:

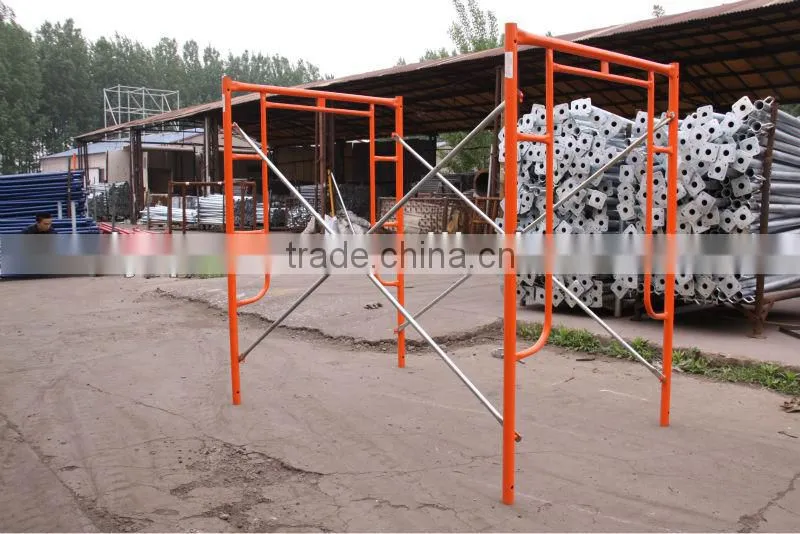

1.  One set of frame scaffolding system consists of two H type frame scaffolding, two pairs of cross bar, four piece of joint pins, additional steel plank, jack base, caster wheels, etc.
2.  Frame scaffolding system is widely use as movable platform, install the caster wheels at the bottom tube, for inside wall painting and decoration; also applicated in build constrution ourside working platform system; in some country, frame scaffolding is for inside suport system, which connect U jack on the top, for concere, slab support.
3. Frame scaffolding system is easy assembly and time saving, just need to connect two H frame by cross bar, and up together by joint pins.
4. Frame scaffolding can be surface treatment red oil painting or Hot dip galvanized to further resist rust, cracking and corrosion, has no pollution or harm to the evironment and people, which make sure of its low damage and longer life span.
5.   Frame scaffolding can be packed by steel wiress or in bulk, which is easy to ship.

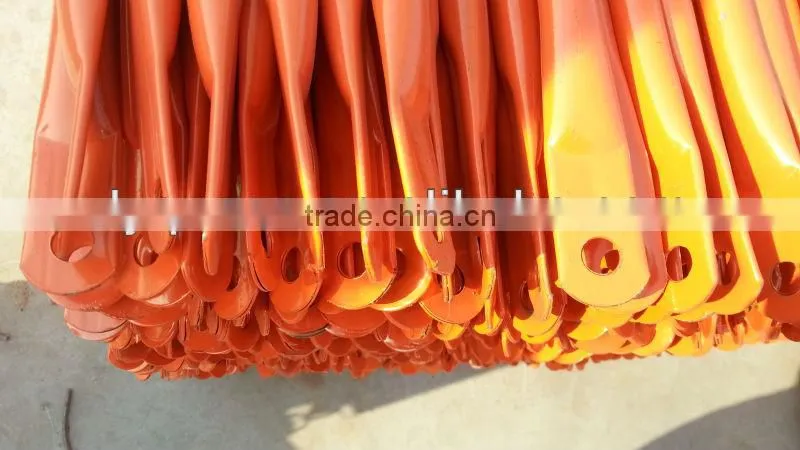

7. Accessory of the Frame
8.
9. Types Of the Frames
11.

1. Application:

   1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.

   2. Apply to inside and outside scaffolding fence.

   3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.

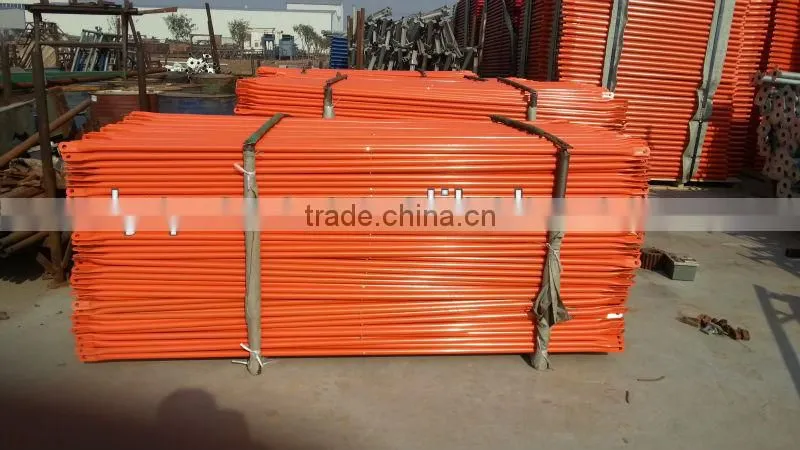

2. Package of the Frames Scaffolding

   About us



   We specialized in the filed of the hardware and scaffolding systems for10 years time and we dealing with many kinds of the Scaffolding .like Ringlock.Cuplock.Kwikstage scaffolding .frame systems. Shoring propsystems. hardware like handtools, Auto Tools. Building tools, such as the ratchet wrench.Pickaxe, Firmer chisel,shovel, pickaxe,various hammers,Triangle bricklayer,Scraper and so on. We want to emphasize that our goods get the reputation in the market due to the competitive price with the high quality. please do not hesitate to contact us meanwhile we will offer you the best with the quality you satisfied.
