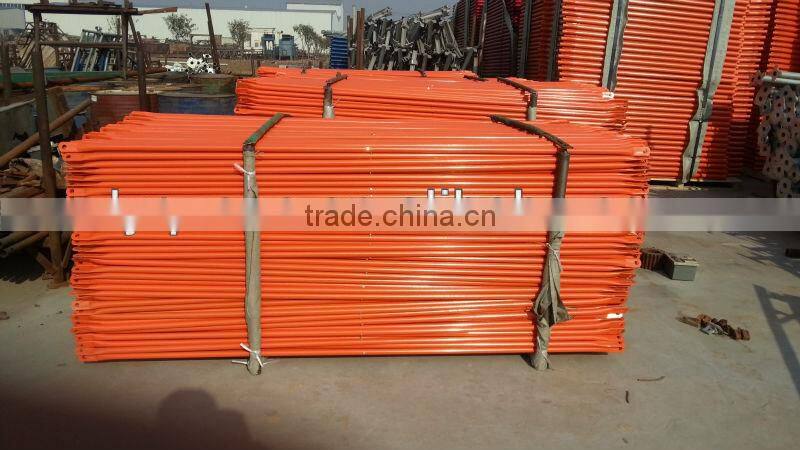

Walk Through Scaffolding Systems for Building

Specifications

Frame Scaffolding/ formwork scaffolding

1.Material:Q235 Q255 Q345
2.Variety:Walk through type & Ladder type
3.Type:  H frame scaffolding system

4.Thickness of the tube:3mm 3.2mm 3.25mm 3.5mm 4mm or customize
5.Surface treatment:HDG/Galvanized/Painted,ect.
6.Color:silver, red, blue, yellow, green or customize
7.Certificate:ISO9001:2000  ISO9001:2008
8.Standard:EN74 BS1139 AS1576
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Main components: frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster.
11.Usage: Our products are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc

frame scaffolding is light duty, easy to erect and walk through, wide applications for both inside and outside constructions.
A complete set usually includes 2 PCS of H frames, 2 pairs of cross braces and 4 PCS of joint pins.

Components:
Pre-galvanized tube, Joint Pin, Lock Pin, Cross Brace, Base Jack or Universal Wheel.

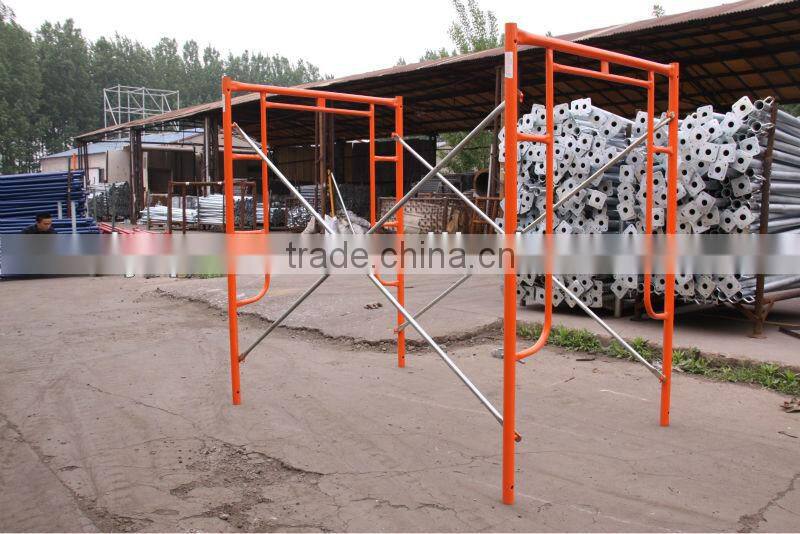

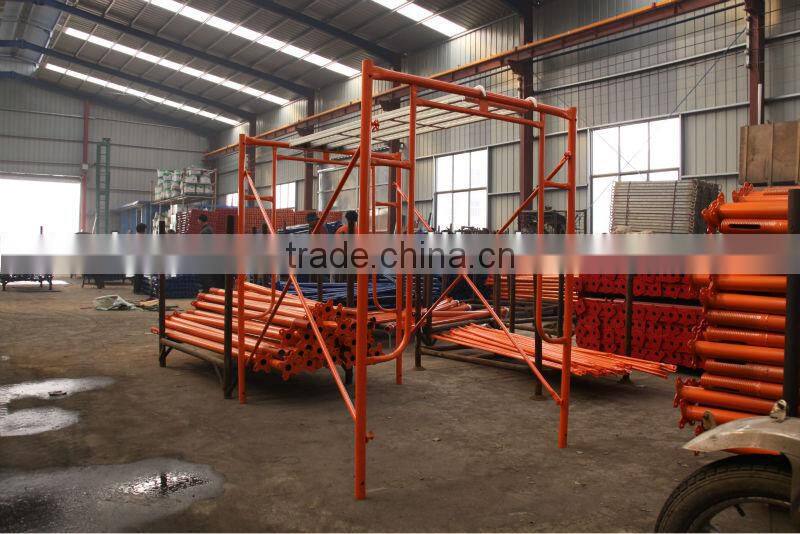

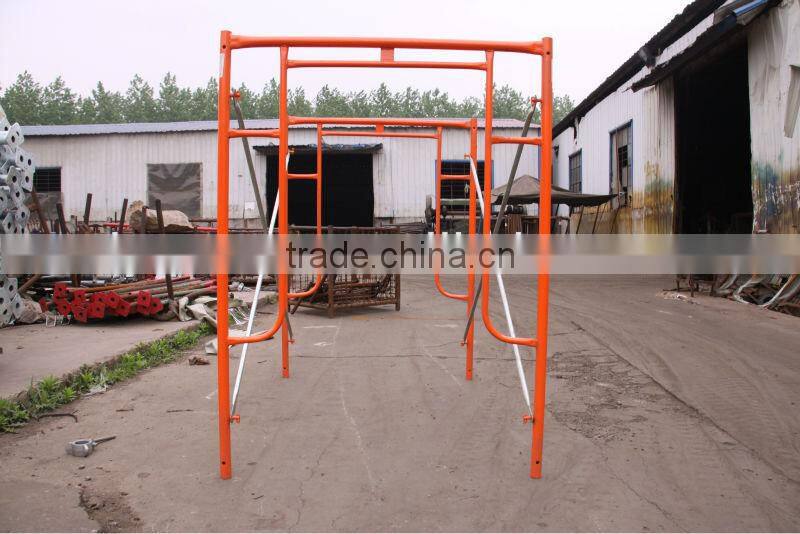

Specification of the Walking through frame

   Specifications of frame scaffolding:

1.  One set of frame scaffolding system consists of two H type frame scaffolding, two pairs of cross bar, four piece of joint pins, additional steel plank, jack base, caster wheels, etc.
2.  Frame scaffolding system is widely use as movable platform, install the caster wheels at the bottom tube, for inside wall painting and decoration; also applicated in build constrution ourside working platform system; in some country, frame scaffolding is for inside suport system, which connect U jack on the top, for concere, slab support.
3. Frame scaffolding system is easy assembly and time saving, just need to connect two H frame by cross bar, and up together by joint pins.
4. Frame scaffolding can be surface treatment red oil painting or Hot dip galvanized to further resist rust, cracking and corrosion, has no pollution or harm to the evironment and people, which make sure of its low damage and longer life span.
5.   Frame scaffolding can be packed by steel wiress or in bulk, which is easy to ship.

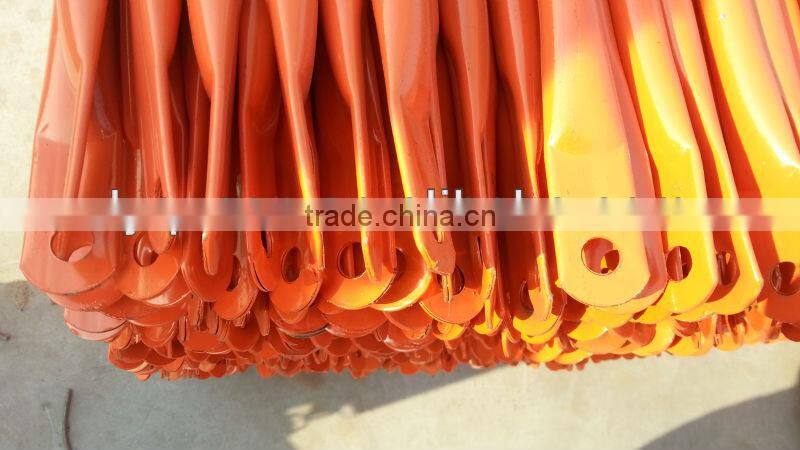

7. Accessory of the Frame
8.

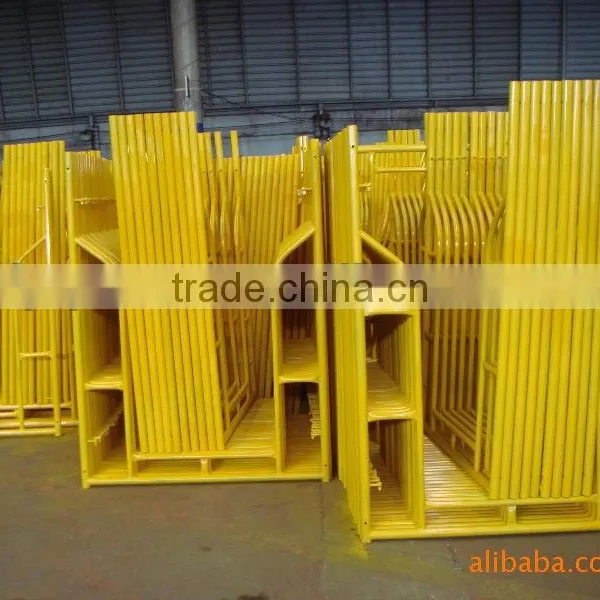

9. Types Of the Frames
11.

1. Application:

   1. Apply to a high work platform, such as building, hall, bridge, viaduct, tunnel, etc.

   2. Apply to inside and outside scaffolding fence.

   3. Using for movable work platform,such as electronic machinery,hull repairing and other decorating projects.

2. Package of the Frames Scaffolding
