Specifications
Cuplock scaffolding1)Raw materia:Q235/Q345
2)Size of pipe:48.3*3.25mm
3)Surface finish:Powder coated/galvanized/HDG
Cuplock Scaffolding systems
Item Name | Cuplock Scaffolding | |
Brand Name | Queen | |
Raw Material | Q235 /Q345steel Grade | |
Components | Standard.Ledger .Diagonal brace. Top/Bottop Cup/ Ledge Blade | |
Surface finish | Electric Galvanized/HDG/Powder coated | |
Size | Pipe size:48.3mm | |
| Thickness:3.25mm | |
Usage | Widely used in Bridge .Tunnel.Peterifaction.Shipbuilding .railway,Airport. Dock Industry and Civil Building | |
Packing | By Steel pallet or bulk |
|
Standard | 48.3*3.25*500mm | 3.5kg |
| 48.3*3.25*1000mm | 5.6kg |
| 48.3*3.25*1300mm | 8.0kg |
| 48.3*3.25*1500mm | 8.75kg |
| 48.3*3.25*1800mm | 10.6kg |
| 48.3*3.25*2000mm | 11.4kg |
| 48.3*3.25*2500mm | 14.0kg |
| 48.3*3.25*3000mm | 16.70kg |
| 8.3*3.25*4000mm | 20.36kg |
Ledger | 48.3*3.25*65mm | 2.54kg |
| 48.3*3.25*914mm | 3.6kg |
| 48.3*3.25*1065mm | 4.10kg |
| 48.3*3.25*1150mm | 4.7kg |
| 48.3*3.25*1570mm | 5.76kg |
| 48.3*3.25*1829mm | 6.62kg |
| 48.3*3.25*2130mm | 7.62kg |
| 48.3*3.25*2438mm | 8.24kg |
| 48.3*3.25*3050mm | 10.68kg |
Diagonal brace | 48.3*3.25*915mm | 3.4kg |
| 48.3*3.25*1150mm | 4.04kg |
| 48.3*3.25*1572mm | 5.34kg |
| 48.3*3.25*1829mm | 6.13kg |
| 48.3*3.25*2130mm | 7.06kg |
| 48.3*3.25*2438mm | 8.01kg |
| 48.3*3.25*3050mm | 9.90kg |
Steel Plank | 210*45*1.2*1000/2000/3000/4000 |
|
| 250*50*1.2*1000/2000/3000/4000 |
|
Screw jack base | 38*4.0*500mm | 3.35kg |
| 38*4.0*600mm | 3.65kg |
| 48*4.0*600mm | 4.4kg |
| 35*500mm | 4.5kg |

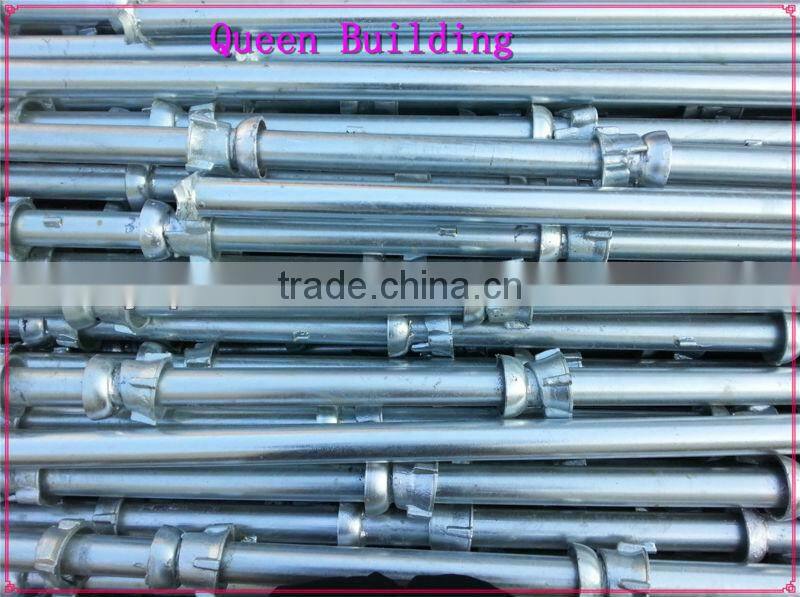

Photos Details for the Cuplock scaffoldings
